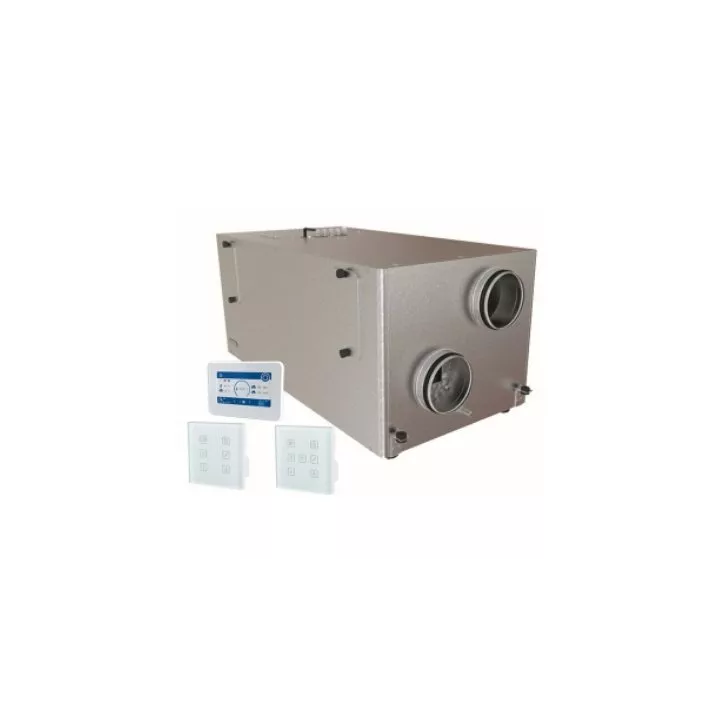

Vents - floor standing air handling unit with a countercurrent VUT HB / HBE EC A21 heat exchanger

The air handling unit supply and exhaust capacity of 830 m ³ / h with a countercurrent heat exchanger. Heat recovery efficiency up to 98%. Ventilation device ensuring mechanical air exchange in rooms with simultaneous filtering, intended for energy-saving ventilation of houses and apartments. The design of the plate heat exchanger enables the extraction of thermal energy from the exhaust air to heat the air supplied from the outside.

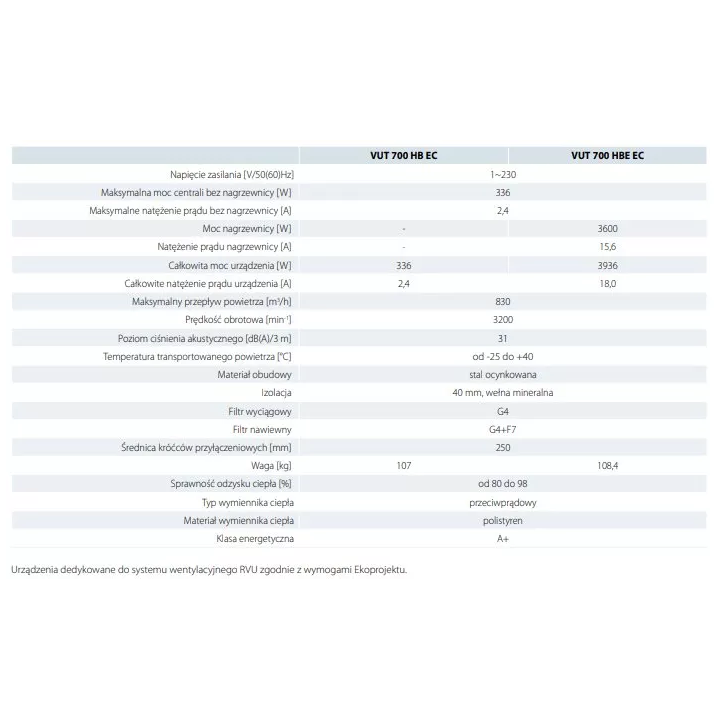

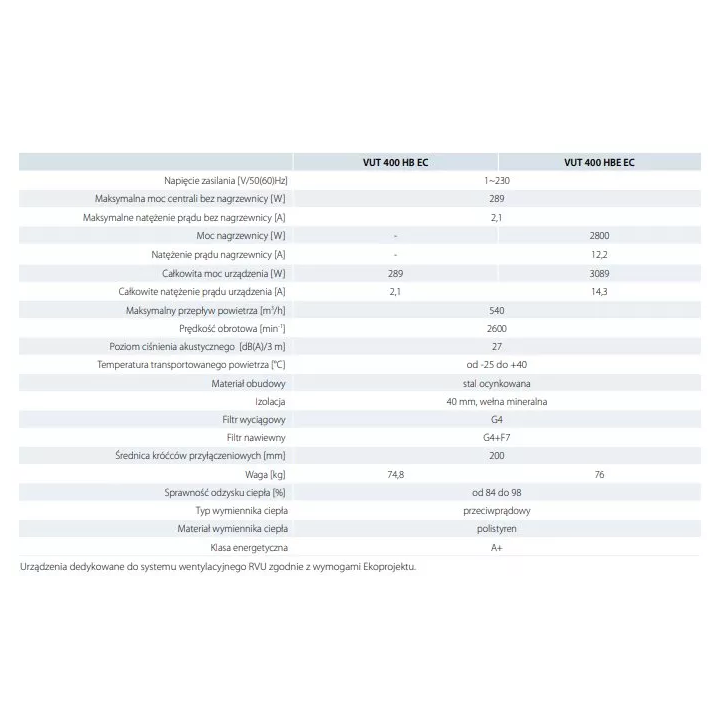

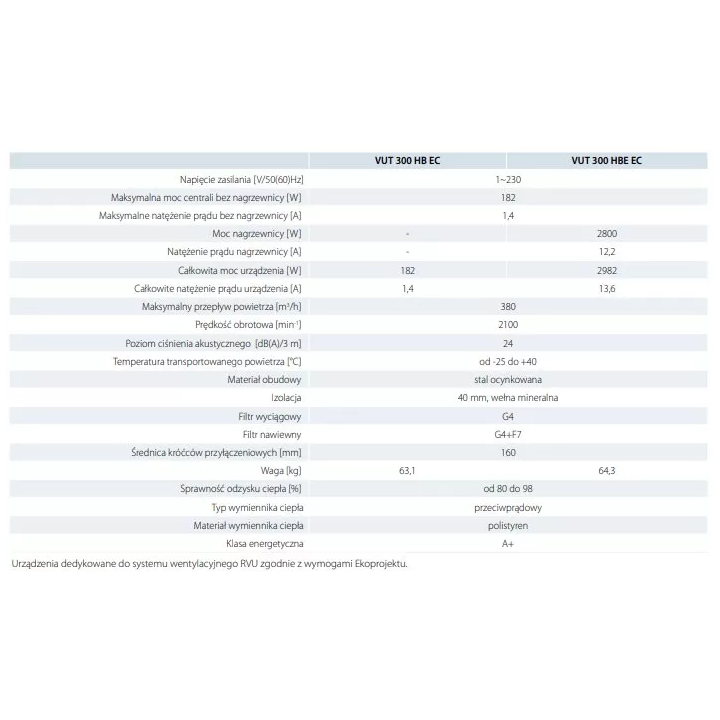

Technical data

• VUT HB EC models without built-in heater
• VUT HBE EC models are equipped with an auxiliary electric heater
• housing made of aluzinc steel with internal thermal and acoustic insulation made of 40 mm thick mineral wool
• floor or wall mounting
• horizontal spins
• polystyrene exchanger material
• recuperation efficiency up to 98%
• EC fans
• built-in electric heater in the VUT HBE EC A21 version
• filters: supply G4, F7 / exhaust G4
• by-pass
• automatic A21
• control via smartphone, tablet and other mobile devices
• possibility of connecting A25, A22, A22 WiFi control panels
• VUT HB / HBE EC AHUs are equipped with a counter-flow polystyrene heat exchanger
• built-in automation system
• nominal capacity 300, 400, 700 m ³ / h
