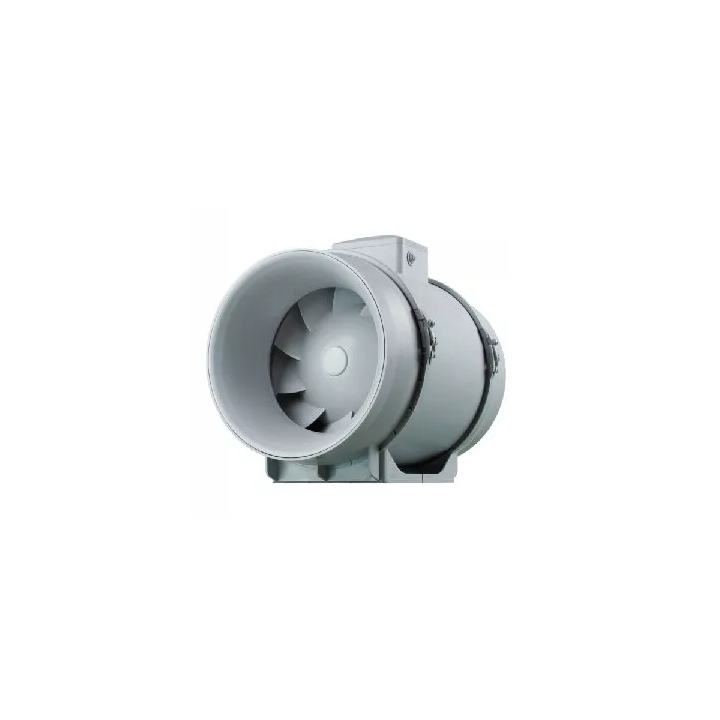

Vents - TT PRO mixed flow duct fan

Mixed flow duct fan with reduced power consumption and increased static pressure. Yield 2050 m ³ / h. Used in supply-exhaust ventilation systems that require a relatively high pressure, strong air stream and low noise level. It is an excellent solution for building ventilation systems in individual, collective and public buildings. It is adapted to transport air at a temperature of up to + 60 ° C.

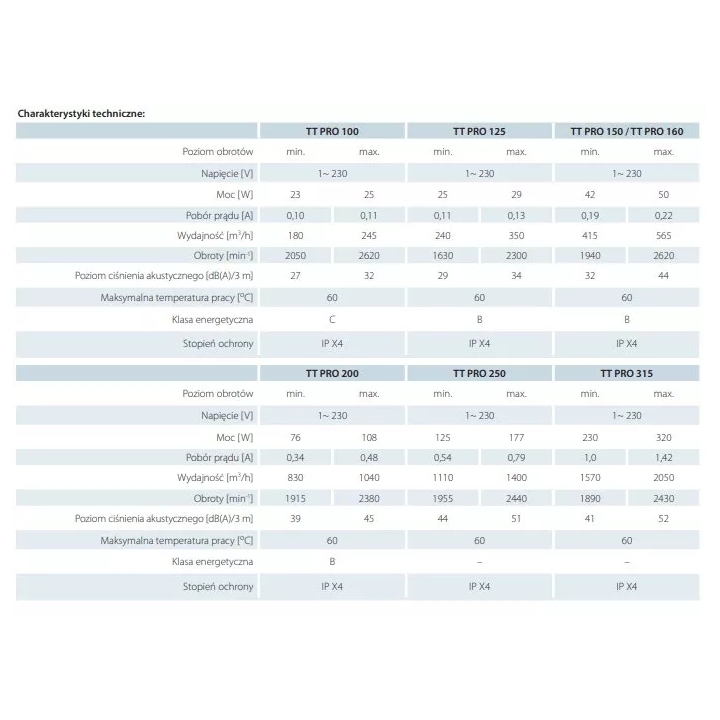

Technical data

• compact dimensions and the possibility of disassembling the rotor with the motor without the need to interfere with the ventilation system
• the casing of the fan and the impeller is made of high-quality ABS plastic, which has a very high durability and mechanical properties
• single-phase motor on ball bearings with two rotational speeds
• regulation by means of a thyristor regulator or a switch in the fan speed
• for horizontal or vertical mounting
• installation in parallel or serial configuration
• available versions with a time delay (T)
• direct access to the engine
• motor protection class IP X4
