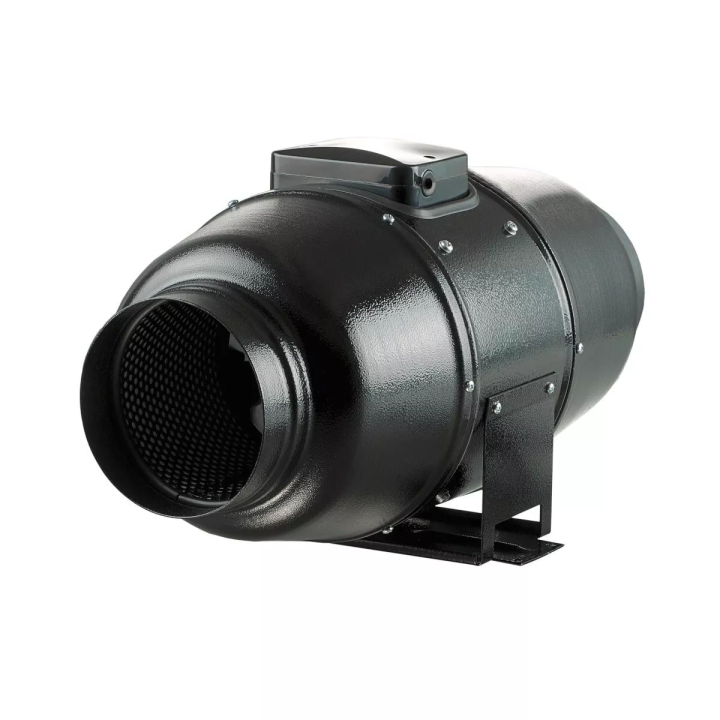

Vents - low noise centrifugal fan in TT Silent-M insulated housing

The TT Silent-M fan is mounted in a casing resistant to temperature and soundproofing. It is used for supply and exhaust ventilation of rooms of various applications with high requirements as to the noise level, e.g. in conference rooms, scientific institutions, kindergartens, libraries. It provides a strong air stream and high pressure. It is intended for use with round ducts with a diameter of 100 to 315 mm. Fan capacity up to 1950 m3 / h. Adapted for mounting directly to the ground, wall or ceiling at any angle relative to the fan axis.

Building

The single-phase ball-bearing motor has two speeds. The fan is equipped with thermo protection (thermal fuse). The outer part of the housing is made of black powder-coated steel, the inner part is made of ABS. Inside there is a 50 mm thick mineral wool insulation. The housing is equipped with a junction box.

Speed control

built-in two-stage min-max speed switch, built-in switch with smooth speed control (option "P") and power cord with plug, built-in timer with adjustable time delay from 2 to 30 min (option "T")

The fan is programmed by means of an electronic module with speed control and electronic thermostat, which has a built-in temperature sensor, power cord and plug (option "U / U1").
