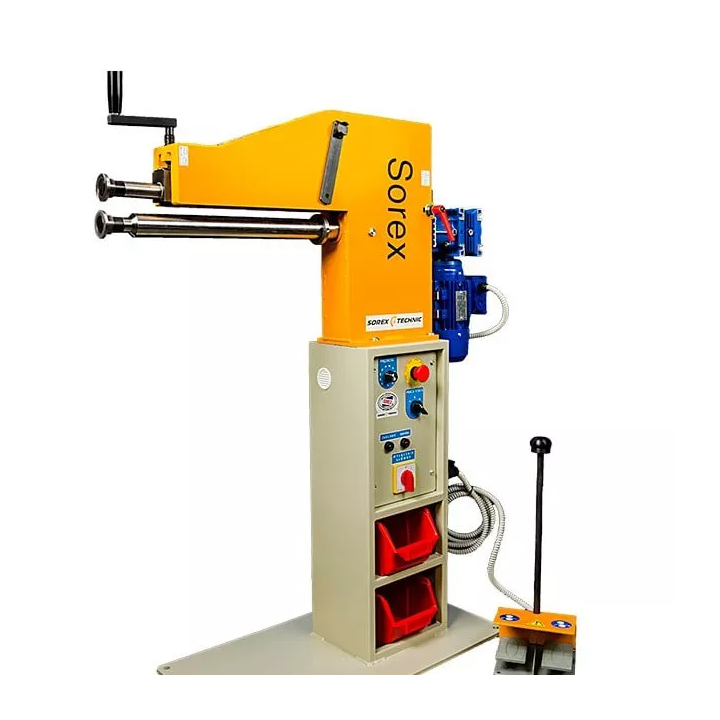

Sorex - electric grooving machine CRM-50.520 0.74 kW

A specially modified grooving machine for cutting pipes, allowing for cutting welded pipes with a diameter of at least 55 and a depth of 520 mm. The drive is transmitted from the electric motor to the grooving machine by means of a worm gear. The motor is controlled by an inverter, with stepless speed regulation from 2 to 14 m / min. The control is via a two-step left / right foot switch (pedal). The height and gap of the cutting rollers can be adjusted using the upper shaft. The large base allows you to work without additional fastening. The machine uses modern bronze slide bushings and lubrication points for regular maintenance.

Technical data

• roll spacing in 50 mm
• working depth 520 mm
• maximum thickness of the processed sheet 400 N / mm2 0.80 mm
• voltage 230 V 50 Hz
• power 0.74 kW
• operating speed from 2 to 14 m / min
• speed regulation (stepless)
• left / right rotation
• example sheet thicknesses: 0.8 mm steel; acid 0.6 mm; AL 1.0 mm; copper 0.8 mm

Includes N cutting stones, adjustable stop, roller key.
