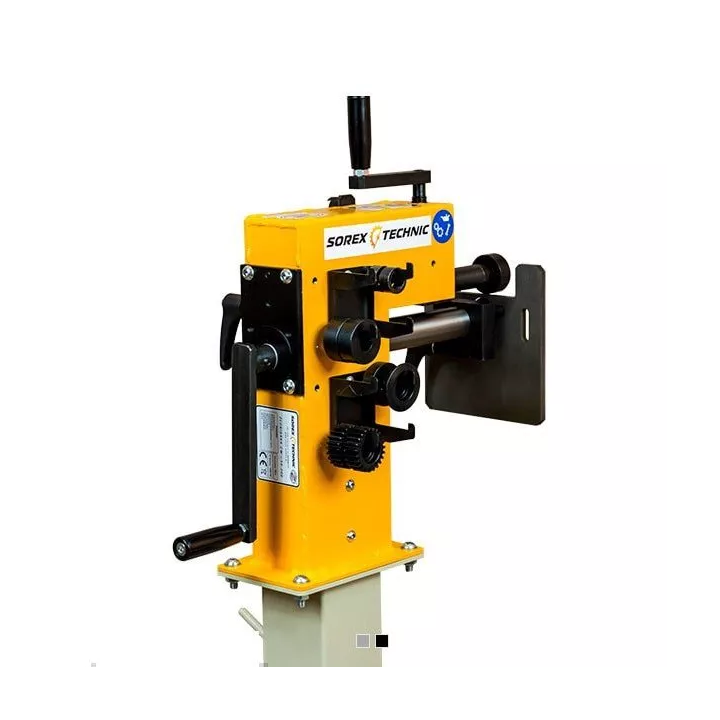

Sorex - CW-50.200 hand grooving machine

A grooving machine for gouging, grooving, bending, strengthening and rounding sheets. Ideally suited for work in tinsmithing, insulating, roofing and locksmith workshops.

Features

• precise adjustment of the upper shaft (roller pressure) and the lower shaft (roller gap)
• large split bumper mounted on the shaft (model ZR-1)
• bending rollers made of high-grade steel with a hardness of 52-56 HRC
• 8 roll holder as standard
• additional equipment such as compass, R40, R80, R120 bumper and adjustable bumper
• reliability and ease of use
• large selection of additional stones, over 70 set in
• rigid and compact machine

Technical data

• roll spacing in 50 mm
• working depth 200 mm
• maximum thickness of the processed sheet 400N / mm 1.25 mm
• machine length 600 mm
• machine width 240 mm
• machine height 520 mm
• weight 32 kg

The set includes 4 profile stones A, B, Z20 and R3 (other stones can be selected), 1 basic stop ZR-1, holders for rollers, a key for rollers.
