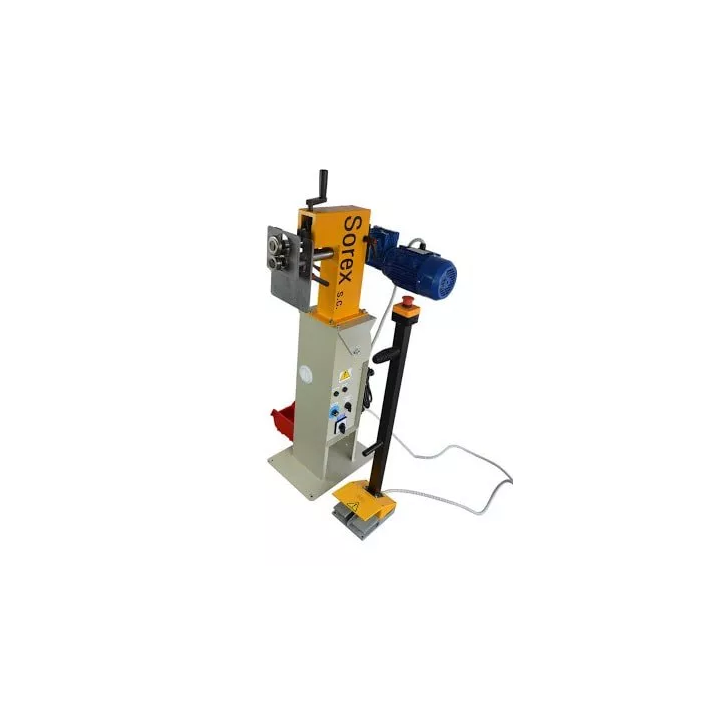

Sorex - CWMK-50.200 tilting electric grooving machine 0.74 kW

A moulder for gouging, grooving, bending, strengthening, rounding. It is perfect for tinsmithing, insulating, roofing and locksmith workshops.

Features

• precise adjustment of the upper shaft (roller pressure) and the lower shaft (roller gap)
• large split bumper mounted on the shaft (model ZR-1)
• the body of the beater is tilting smoothly up to 90 °
• bending rollers made of high-grade steel with a hardness of 52-56 HRC
• 8 roll holder as standard
• large selection of additional stones, over 70 set in
• additional equipment such as compass, R40, R80, R120 bumper and adjustable bumper
• rigid and compact machine
• reliability and ease of use

Technical data

• roll spacing in 50 mm
• working depth 200 mm
• maximum thickness of the processed sheet 400 N / mm 1.50 mm
• voltage 230 V 50 Hz
• engine power 0.74 kW
• operating speed from 2 to 14 m / min
• smooth speed regulation
• left / right rotation
• permanent work
• machine length 700 mm
• machine width 300 mm
• machine height 1350 mm
• weight 76 kg

The set includes 4 profile stones A, B, Z20 and R3 (other stones can be selected), 1 basic stop ZR-1, holders for rollers, a key for rollers.
