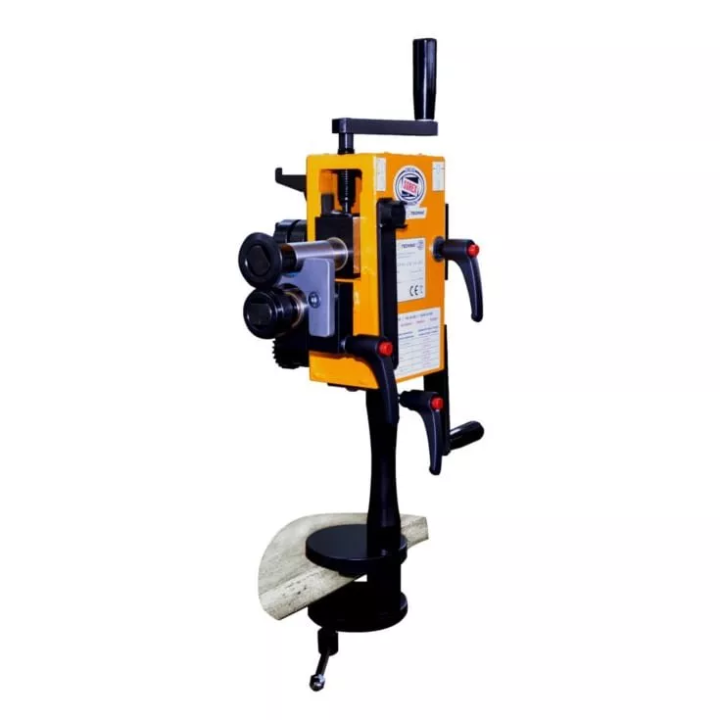

Sorex - CW-50.70 manual grooving machine

A hand-operated grooving machine (U-11 handle), suitable for assembly in a body shop. It can be quickly and easily attached virtually anywhere thanks to the interchangeable assembly heads (table holder, pipe / scaffold holder 50 and a stand that can be screwed to e.g. a pallet, board). The device is used for gouging, bending, grooving, strengthening, rounding, etc.

Features

• light weight and small dimensions
• assembly and readiness to work virtually anywhere
• precise roller gap adjustment (axial adjustment)
• comfortable thrust bumper (hardened)
• bending rollers made of high-grade steel with a hardness of 52-56 HRC
• precision shaft bearings w
• precise roller pressure adjustment (height adjustment)
• the possibility of replacing the assembly heads
• two four-place roller holders as standard
• compact and rigid structure
• rollers and buffers are compatible with other Sorex Technic grooving machines
• reliability and ease of use

Technical data

• roll spacing in 50 mm
• working depth 70 mm
• maximum thickness of the processed sheet: 400 N / mm 1.25 mm
• machine length 410 mm
• machine width 220 mm
• machine height 770 mm, (basic version, handle of a carpentry type)
• weight 17 kg (including basic accessories)

The set includes 4 profiling stones A, B, Z20 and R3, a comfortable hardened ZP-1 bumper, holders for rollers, a key for rollers, a handle for a table clamp like a carpenter's clamp (U-10). Possible additional options: holder for a pipe or scaffolding with a diameter of 50 mm (U-11, U-12), a stand that can be fixed with screws / bolts (U-14), a large selection of additional stones with over 120 types, adjustable bumper round bumpers, several types with hardened thrust bumpers.
