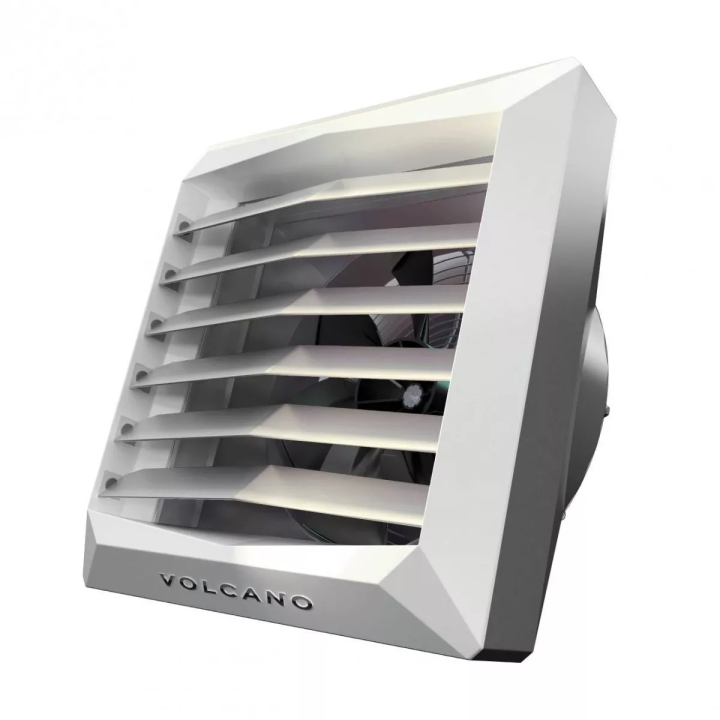

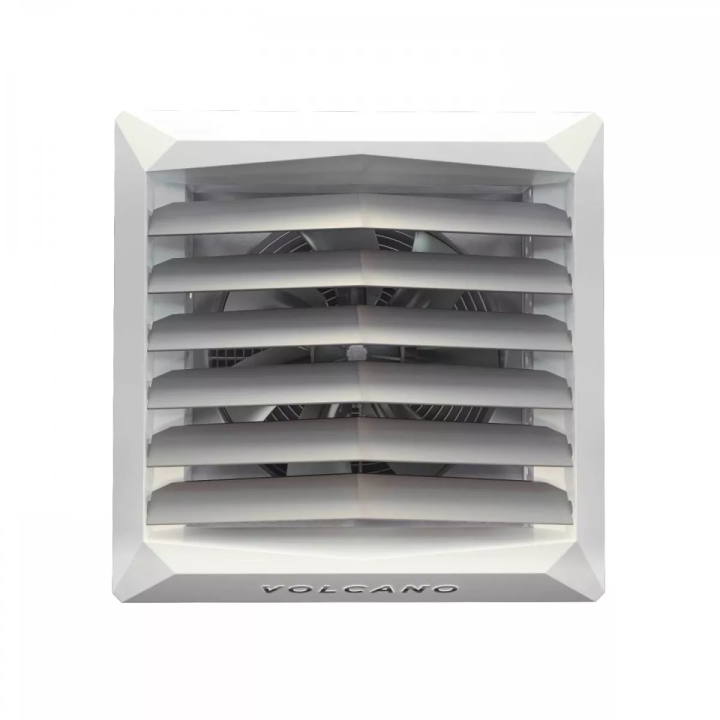

VTS - Volcano VR-D Mini distiller

VR-D Mini air destratifier - supports air distribution in the room. Reduces energy demand from other heat sources by directing hot air to the bottom.

Technical data

• maximum air capacity 2330 m ³ / h
• maximum horizontal range 16 m
• maximum vertical range of 10 m
• three speed speed control (AC)
• smooth speed control (EC)
• three-speed engine
• ABS casing with an admixture of pigment in anti UV
• high mechanical strength
• high temperature resistance
• durability
• r uniform air velocity distribution in the exchanger
• quiet work
• electricity savings up to 40% compared with traditional solutions (variant with EC motor)

The destratifier is equipped with a set of four ceiling mount brackets that allows installation on mounting pins (not included).

HMI Volcano EC controller

• compact appearance
• legible and clear display with high contrast and brightness
• up to 8 devices supported by one controller
• advanced calendar period in heating for each day of the week
• built-in thermostat
• compatibility with the BMS system
• smooth engine speed control
• cooperation with an external temperature sensor
• Antifrost mode to prevent freezing
• servo valve operation

Note: The driver must be purchased separately.
