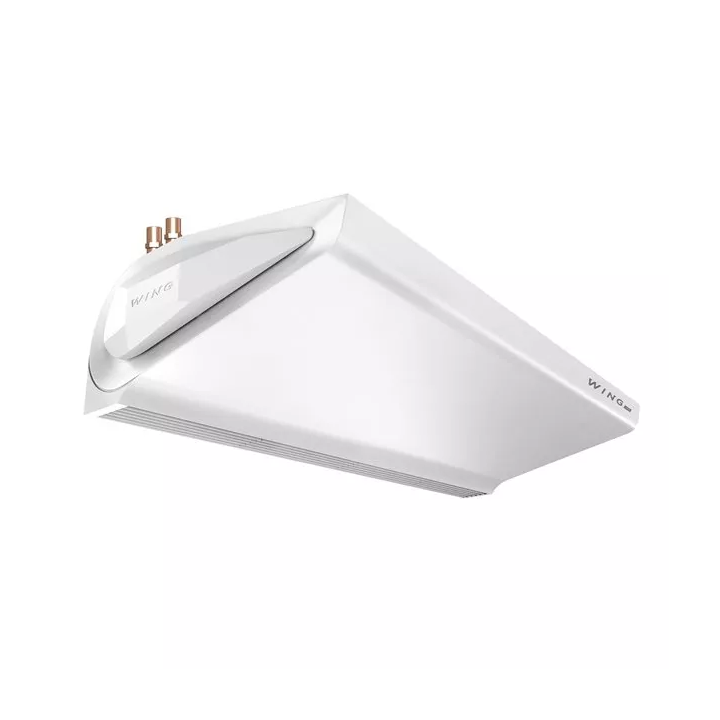

VTS - Wing W water air curtain

Air curtain with water exchanger.

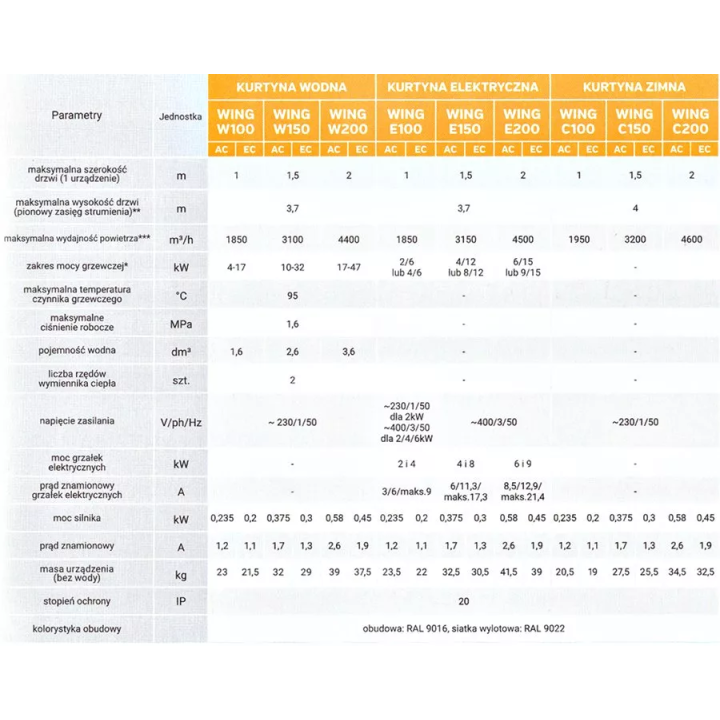

Technical data

* available heating powers in the configuration of control options: Wing E100 - 2/6 kW or 4/6 kW; Wing E150 - 4/12 kW or 8/12 kW; Wing E200 - 6/15 kW or 9/15 kW

** range of the air stream depends on the course of curtain operation

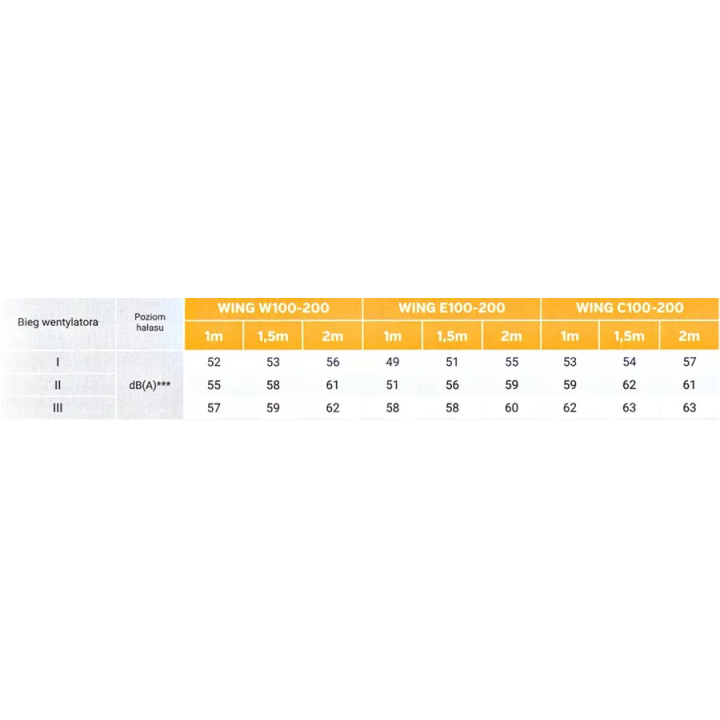

*** measurement at a distance of 5 m from the device when mounted horizontally on a wall in a half-open space

HMI Wing EC controller

• compact appearance
• legible and clear display with high contrast and brightness
• up to 8 devices supported by one controller
• advanced calendar period in heating for each day of the week
• built-in thermostat
• compatibility with the BMS system
• predefined 3 speeds
• co-operation with a door sensor

Note: The driver must be purchased separately.
