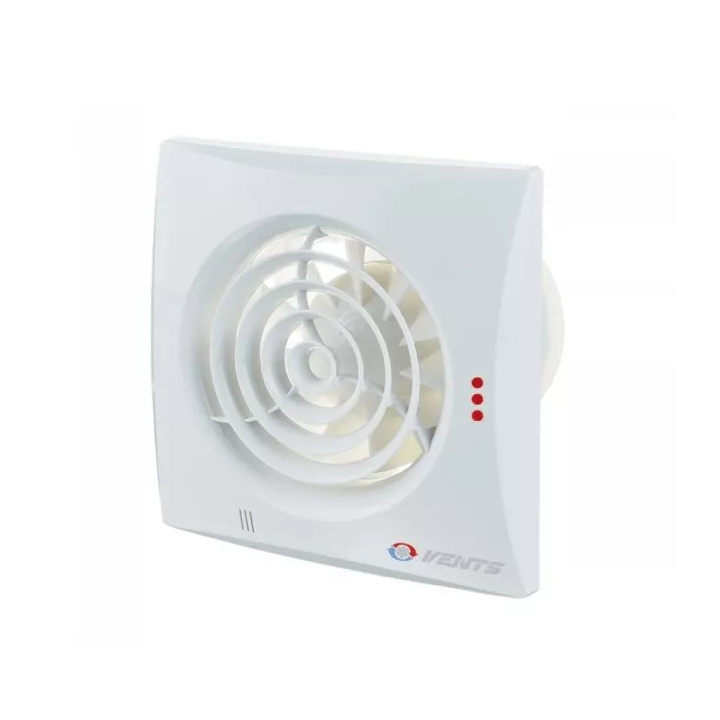

Vents - Quiet low-noise axial fan

Axial fan with low noise and low energy consumption, used for exhaust ventilation with a capacity of 370 m ³ / h. Designed for ventilation of living rooms (bathrooms, kitchens, sanitary facilities). For installation in ventilation ducts or for connection with 100, 125, 150 mm ventilation ducts.

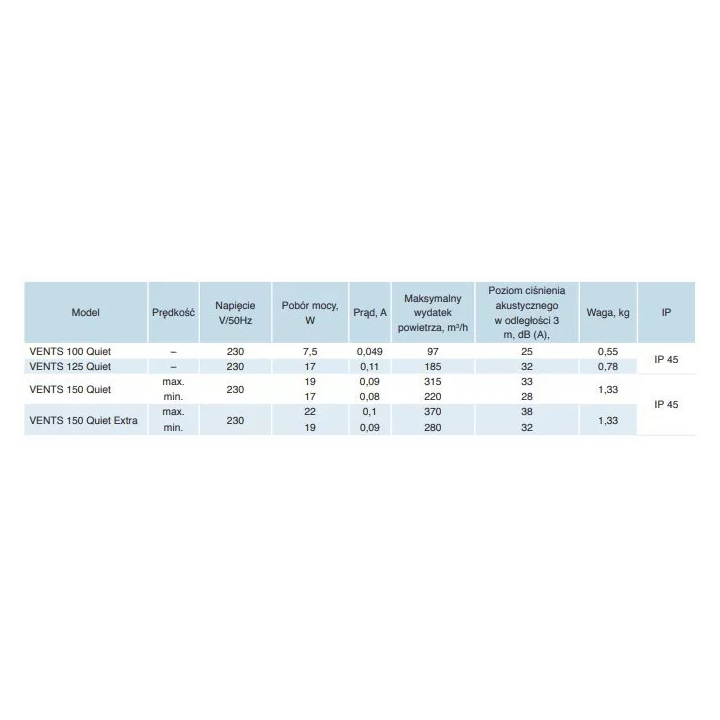

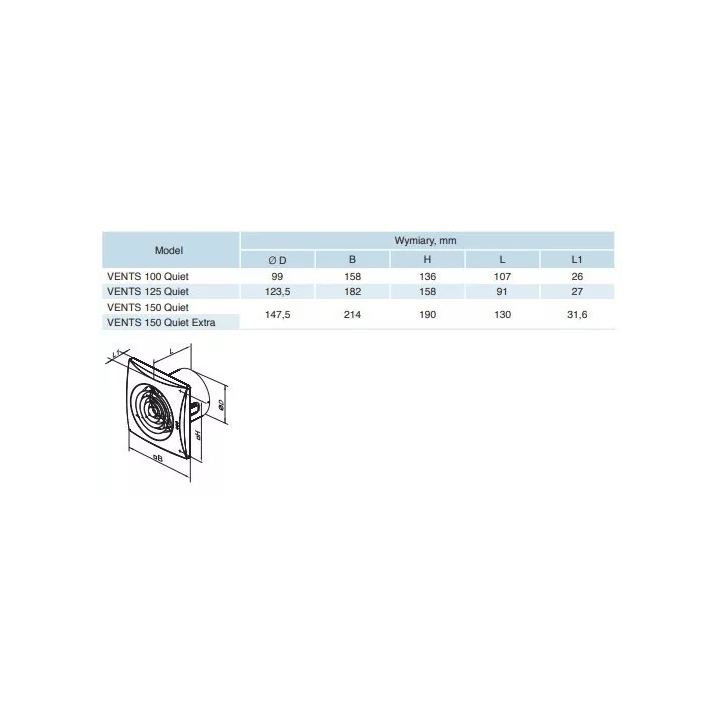

Technical data

• the casing and the rotor are made of high quality ABS material, resistant to mechanical damage and UV rays
• the aerodynamic shape of the mixed flow impeller ensures a high air flow
• very low noise level
• all types / diameters equipped with ball bearing motor
• security class IP45
• non-return valve to prevent backflow of air and heat loss when idle
• the fan is mounted directly in the opening of the ventilation duct, it is attached to the wall with a screw w, it can be mounted on the ceiling

Specification

• Quiet T - equipped with a timer (switch-off delay from 2 to 30 minutes)
• Quiet TH - equipped with a timer (switch-off delay from 2 to 30 minutes) and a humidity sensor (operating threshold 60-90% relative humidity)
• Quiet V - equipped with a cord switch
• Quiet VT - equipped with a cord switch and timer (switch-off delay from 2 to 30 minutes)
• Quiet TP - equipped with a motion sensor (sensor operation zone 1-4 m, viewing angle up to 100) and a timer (switch-off delay from 2 to 30 minutes)
