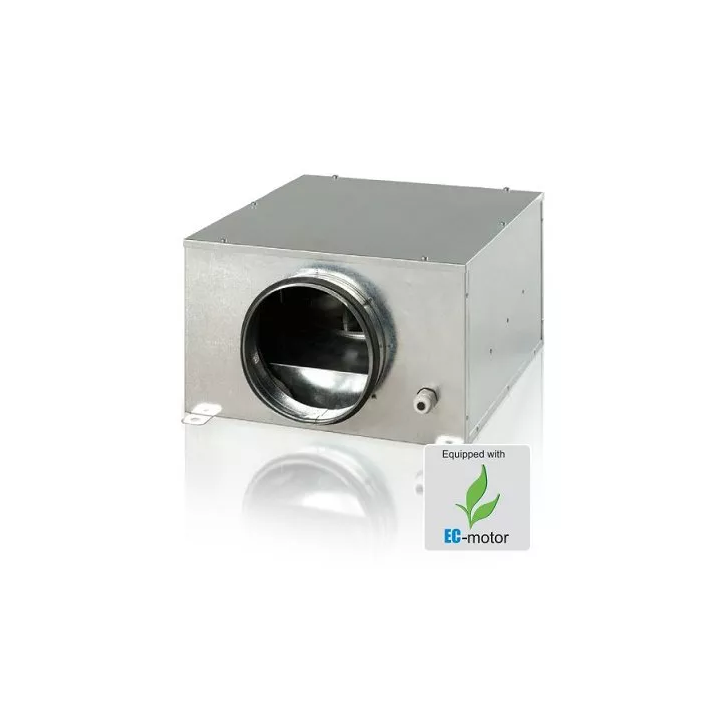

Vents - KSB EC centrifugal fan in an insulated casing

A centrifugal fan in the housing channel insulated capacity up to 1500 m ³ / h. Used for supply and exhaust ventilation of individual rooms, buildings in individual, collective housing and public utilities. The compact design and acoustic insulation make it possible to mount the device directly in the room above the suspended ceiling, even in rooms with high acoustic requirements. Designed for installation with ventilation ducts with a diameter of 100, 125, 150, 160, 20, 250 and 315 mm.

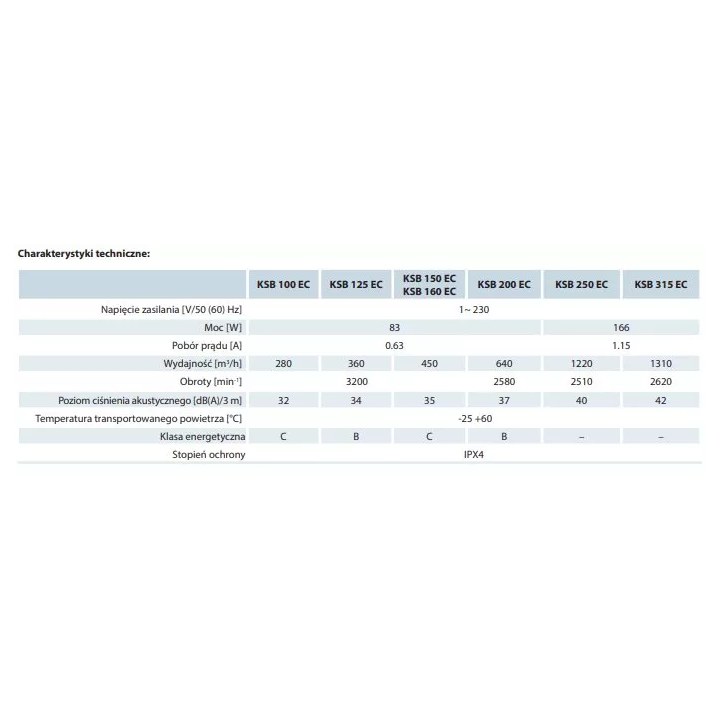

Technical data

• casing made of galvanized steel sheet with the use of mineral wool, which provides thermal and acoustic insulation; round connection rings are equipped with rubber seals
• high efficiency electronically commutated (EC) motor with external rotors with backward curved blades
• ball bearing motor
• smooth regulation
• for horizontal and vertical mounting
• spindles with rubber gasket
• channel diameter 100, 125, 150, 160, 200, 250, 315
