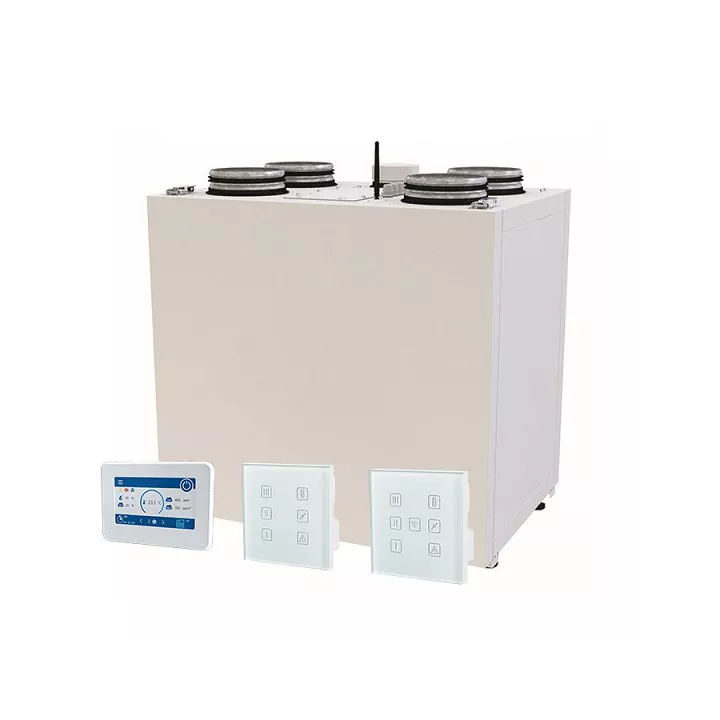

Name: Vents - standing air handling unit with a rotary exchanger VUTR V / VE EC A21
Brand: Vents
SKU: 35310
Price: 7760.07 PLN
Availability: InStock

Vents

zł7,760.07

Tax included

Supply-exhaust air handling unit with a capacity of up to 670 m3 / h with a rotary exchanger. Heat recovery efficiency up to 90%. Ventilation device ensuring mechanical air exchange in rooms with simultaneous filtering. The used air, through the rotary heat exchanger, heats the fresh air supplied to the rooms. The air handling units are designed for energy-saving ventilation of houses and flats.

model

Dostępny

The air handling unit supply and exhaust capacity of 670 m ³ / h rotor. Heat recovery efficiency up to 90%. Ventilation device ensuring mechanical air exchange in rooms with simultaneous filtering. The used air, through the rotary heat exchanger, heats the fresh air supplied to the rooms. The units are designed for energy-efficient ventilation of houses and apartments.

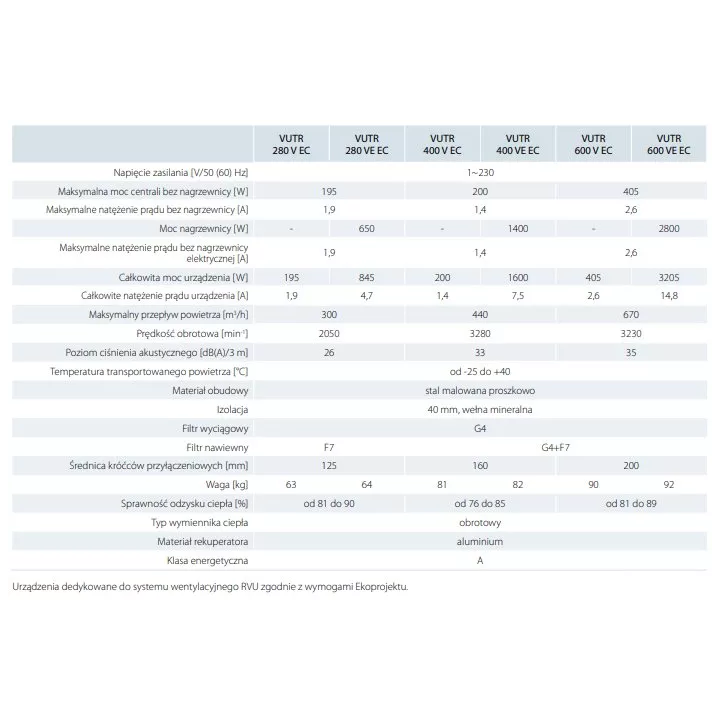

Technical data

VUTR V EC model without built-in heater
VUTR VE EC model equipped with an auxiliary electric heater
the unit casing is made of high quality steel with a polymer coating with internal thermal and acoustic insulation made of 40 mm thick mineral wool
housing material powder coated steel
method of installation: floor or wall
vertical spikes
rotary exchanger
aluminum exchanger material
recuperation efficiency up to 90%
equipped with two F7 and G4 class filters (in the VUTR 280 V / VE EC unit one F7 class filter)
EC fans
automatic A21
control via smartphone, tablet and other mobile devices
possibility of connecting A25, A22, A22 WiFi control panels
it has fans with EC type electronically commutated motors and a built-in control system
