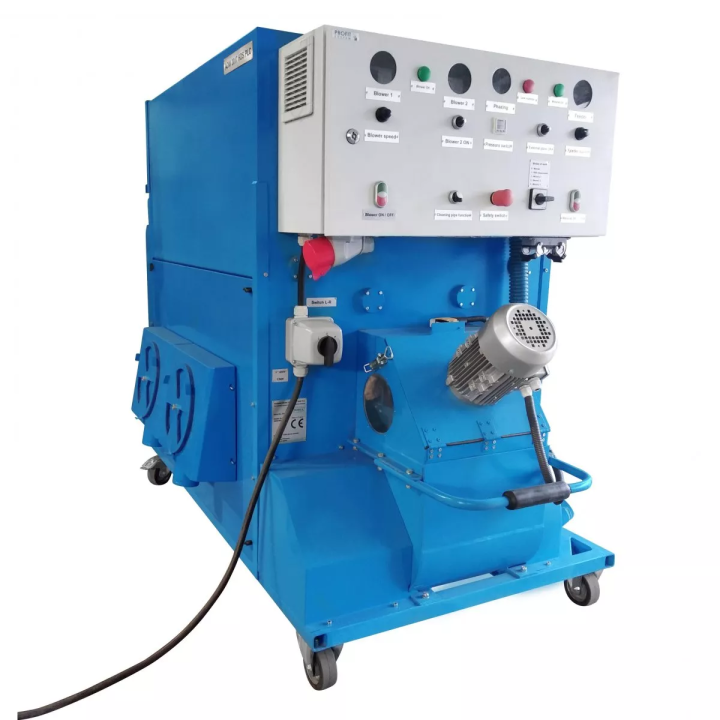

Terex - ADW 2017 HDS / PLC blowing machine

Machine with high efficiency, PLC controlled (various operating modes), high pressure (material is dosed into compressed air). It is characterized by versatility - for blowing, for pneumatic transport, cellulose, glass wool, basalt, wood wool and polystyrene granules.

Features

• high performance
• versatility
• simple and easy operation
• mobility
• precise and smooth control of the blower and screw feeder (vector inverters)
• independent switching of the dispenser and shredder
• very easy to clean and use on site
• volume 78 dB
• possibility of quick and independent replacement of dispenser seals (Air-Lock) without having to disassemble the machine
• the location of the machine control is ergonomic and comfortable to operate
• Yield: cellulosic material having a bulk density of 30-40 kg / m ³ to 1800 kg / h; granulated glass wool having a bulk density of 15-25 kg / m ³ to 1000 kg / h; basalt wool having a bulk density of 30-45 kg / m ³ to 1800 kg / h
• for dry blowing of: glass wool, rock wool, cellulose wool, wood wool, EPS

Technical data

• weight 370 kg
• height 145 cm
• width 145 cm
• length 172 cm
• approximate capacity 1800 kg / h
• 3 x 400 V power supply required
• power consumed 8 KW
• blower pressure 45 kPa
• nominal power of the blower 6 kW
