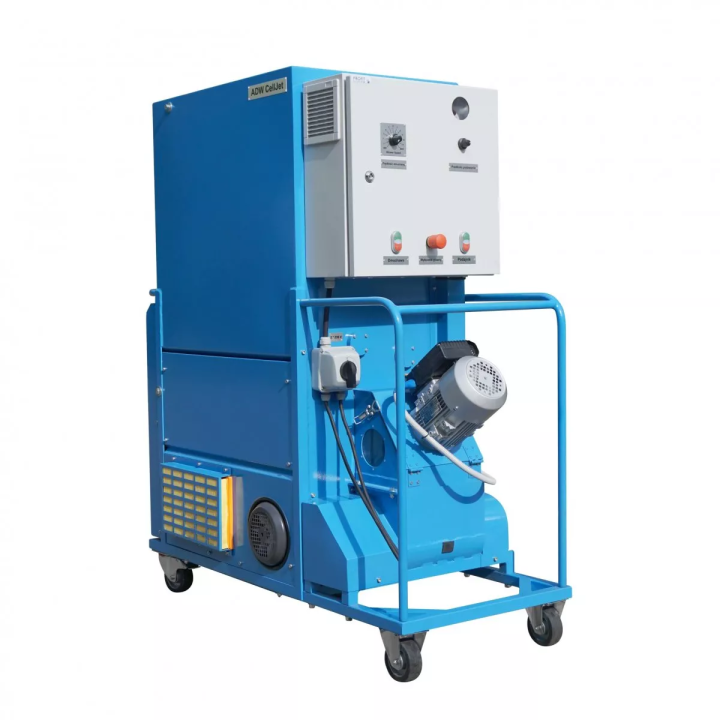

Terex - ADW Celljet wet spraying and blowing machine

Machine for wet thermal and acoustic spraying of cellulose and glass wool-based material and for dry blowing of cellulose, glass and stone wool material. Allows the use of small diameter outlet nozzles.

Features

• high uniformity and continuity of material feeding
• very good fragmentation
• a very large range of settings for blowers and material feeding thanks to precise control of the screw with a vector inverter
• blower thyristor control
• mobile
• simple and easy to use
• convenient to clean
• quick and independent change of dispenser seals (Air-Lock) without having to disassemble the machine
• the location of the machine controls is ergonomic and convenient to operate
• for dry blowing: glass wool, rock wool, cellulose wool, EPS and for spraying cellulose and glass material

Technical data

• weight 227 kg
• height 150 cm
• width 56 cm
• length 138 cm
• approximate capacity 400 kg / h
• 2 x 230 V power supply required
• power input 6 kW
• recommended diameter of the transport pipe 63 mm
• recommended length of the transport pipe 50-80 m
• blower overpressure 30 kPa
• nominal blower power 2 1600 kW
