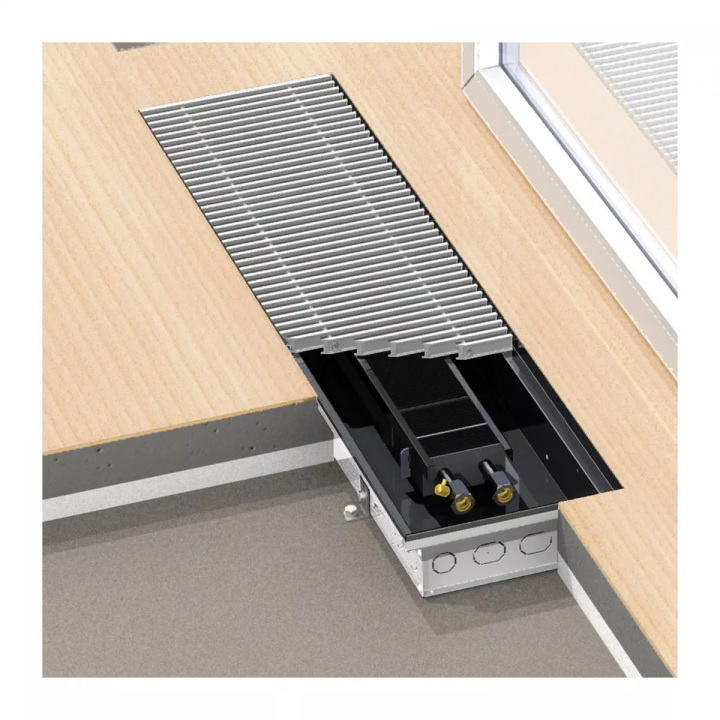

Purmo - Aquilo FMK 140 channel heater

Aquilo FMK is a ductless heater without a fan. Intended for floors of heated rooms. The heating element is a copper-aluminum heat exchanger mounted in a galvanized steel tub. The bathtub (from the inside) and the exchanger are painted black. From the top, the radiator is protected by a transverse or longitudinal cover grille (to be ordered separately).

Technical data

• exchanger material: copper tubes with aluminum fins
• bathtub material: galvanized steel sheet as standard (black powder coated RAL 9005 on the inside); optional stainless steel
• grille material: wood (oak, beech); duralumin (natural, light brown, dark brown or black); stainless steel
• Connections 2 x G 1/2 '' internal thread
• working pressure 10 bar
• pressure 13 bar
• maximum temperature 110 C

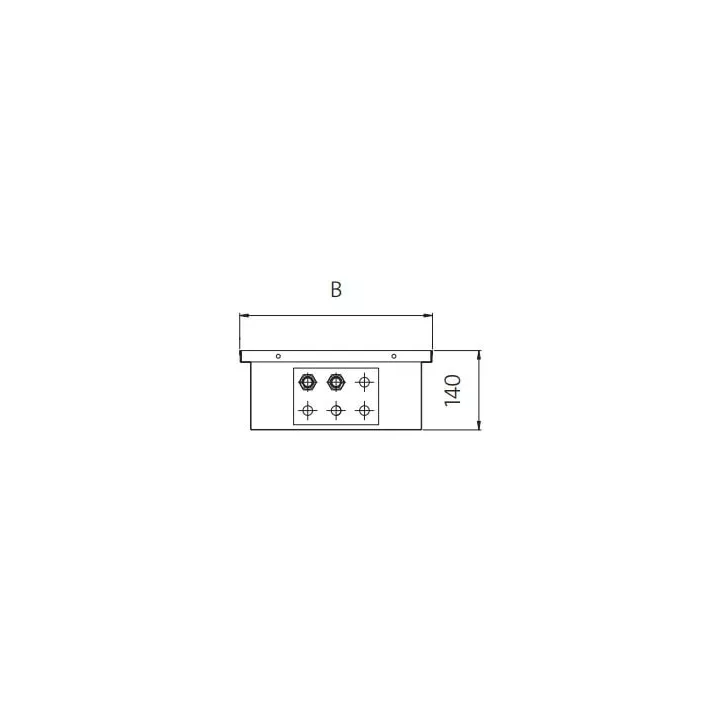

• height 140 mm

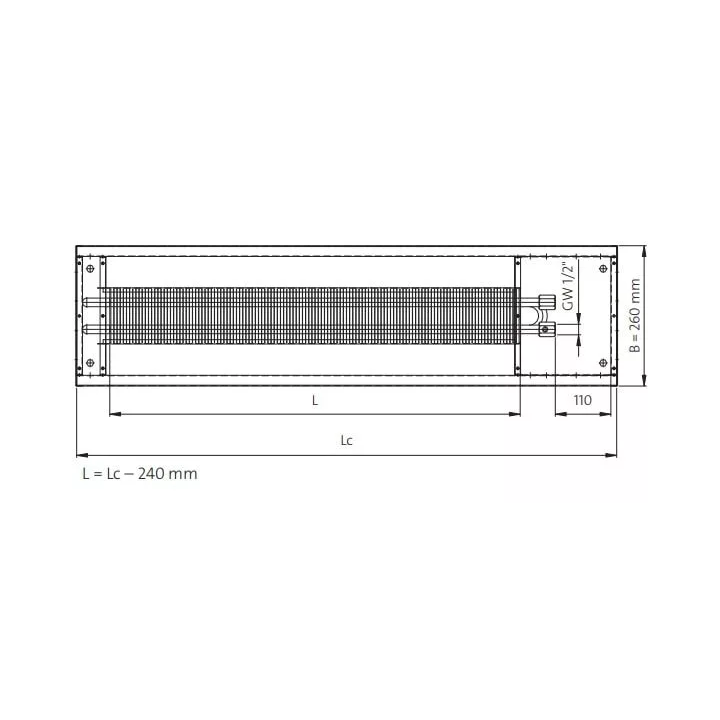

• length from 1000 to 3500 mm
• width 180, 260, 290, 340, 420 mm
• 10 years warranty

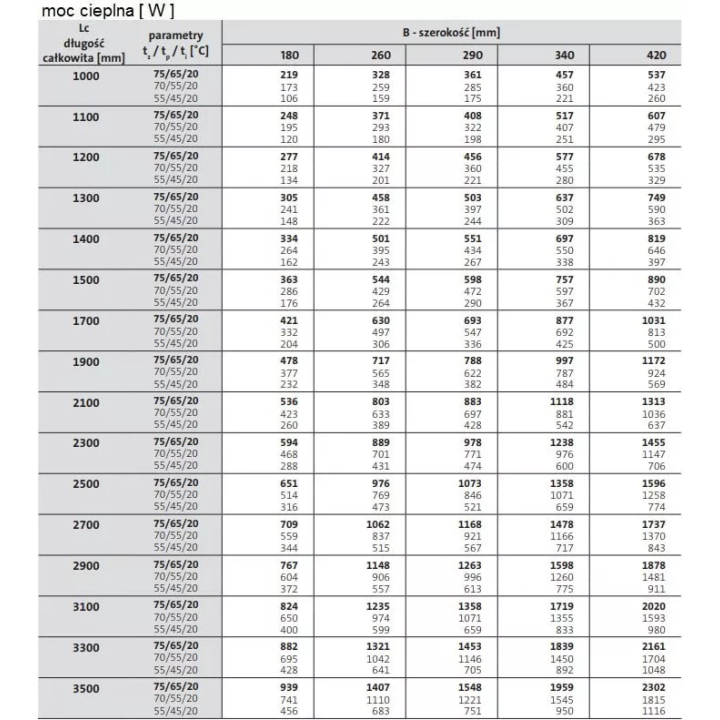

Thermal power of the radiator given according to PN-EN 442.

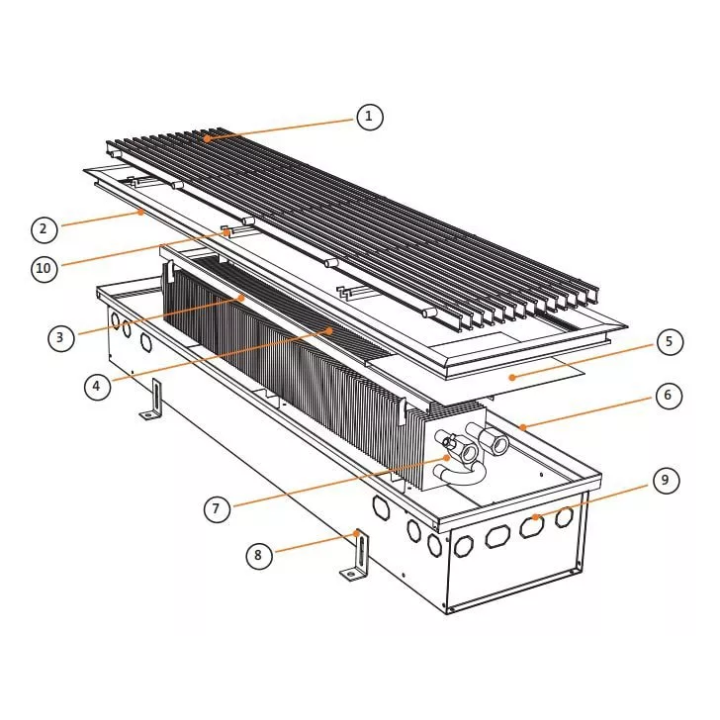

Building

1 - rolled up crosswise grid or longitudinal grid - the drawing shows the longitudinal grid for which reinforcing mounting crossbars are required
2 - optional finishing strips type L, Z or U (only for the PML, PMZ and PMU grilles; not available for the type PMO) - the drawing shows the type Z strip
3 - convection plate
4 - heat exchanger
5 - masking plate connection to central heating installation
6 - radiator bathtub
7 - air vent
8 - fastening elements to the ground
9 - connection culverts for central heating installation (to break down)
10 - reinforcing mounting bars (only for longitudinal grilles)

Equipment

heat:

• manual air vent
• two side covers for the heat exchanger
• set of flexible 10 cm long stainless steel connections with G 1/2 '' thread

Bath:

• M8x30 mm leveling screws with an internal hexagon (for tub length up to 2.5 m - 4 pcs, above 2.5 m - 6 pcs)
• 4 fixing accessories to the base with fixing screws for the bathtub
• break-through bushings for connecting central heating installations
• 2 rubber grommets for connecting the electrical installation
• steel sheet cover masking connections to the heat exchanger
• a fibreboard that protects the heat exchanger and the bathtub against damage or contamination during installation and protects against deformation of the bathtub during concreting
