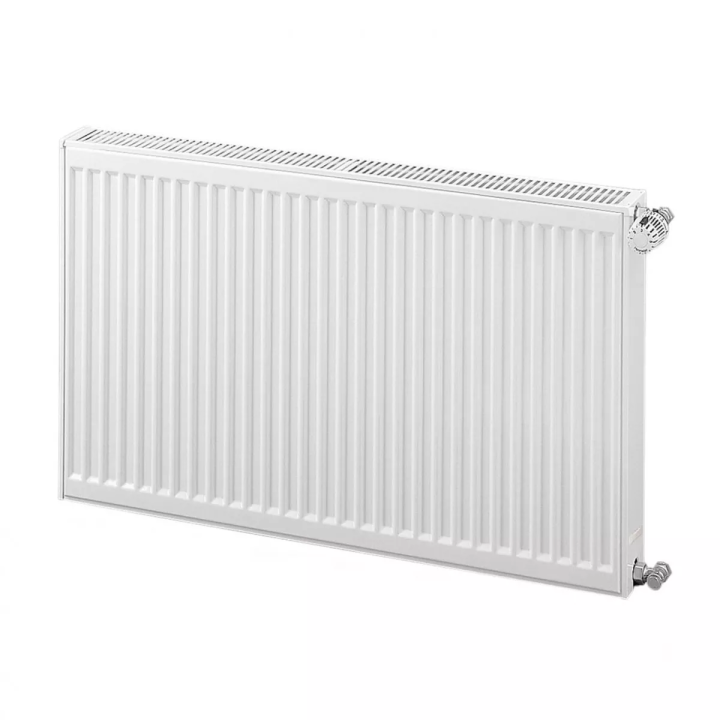

Purmo - Compact C 22 panel radiator

Compact is a steel panel radiator for the room, with side connection to the installation. It has side covers and a grill cover. Can be installed as a hanging or standing radiator (using a rack in). Dedicated to living spaces - kitchen, bedroom, living room.

Technical data

• made of deep pressed cold rolled steel, DC 01
• 4 lateral connection holes (in the corners) of the radiator with a 1/2 '' internal thread
• working pressure up to 10 bar
• pressure 13 bar (during production); 12 bar (after installing)
• maximum temperature 110 C
• height from 300 to 900 mm
• length from 400 to 3000 mm
• spacing of vertical channel in water 33.3 mm
• white RAL 9016
• 10 years warranty

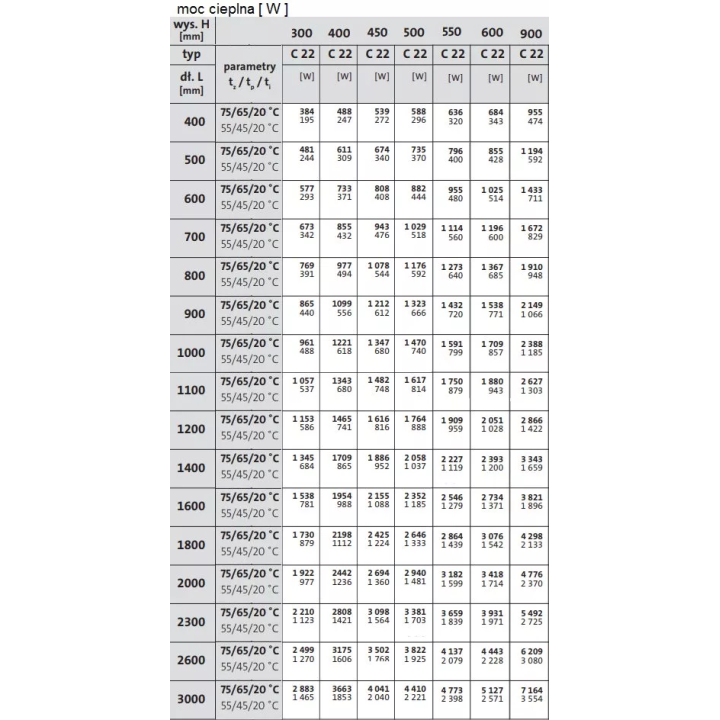

Thermal power of the radiator given according to PN-EN 442.

For an additional fee, it is possible to buy a radiator in a different color from the RAL palette. Complete with a radiator cap, vent, a set of wall suspensions.
