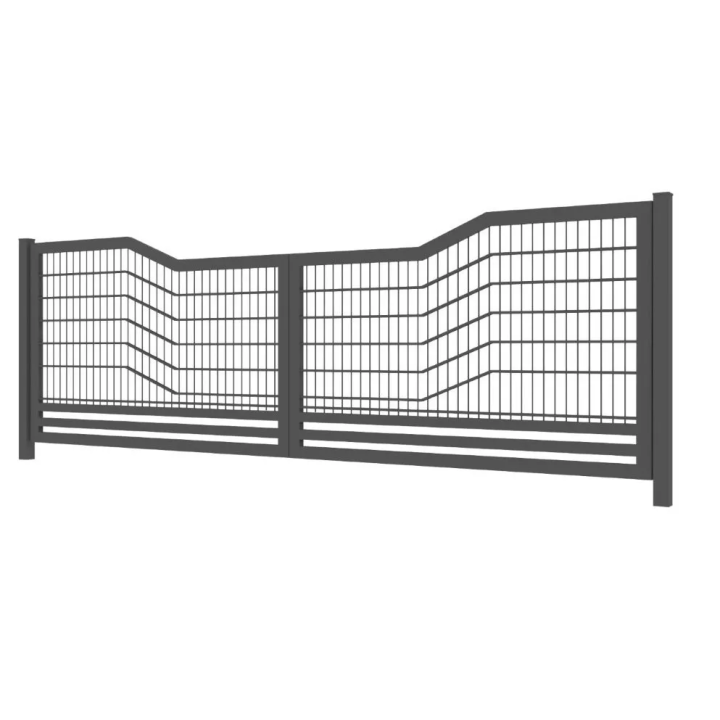

Picheta - 2D panel fence type C

Decorative 2D panel fence with pattern - type C. 2D panels are painted with polyester powder paints, which create a durable and time-resistant coating in different colors according to the RAL palette. The price is for the color in graphite, black, green and brown - please provide a selection in the comment to order. Other colors are subject to individual pricing.

Technical data

Span

• steel horizontal structural rod forming wz r Fi 8
• vertical filling rod Fi 5
• panel height H 1270 mm x 2500 mm

Pole

• 60x60 closed profile
• wall thickness 1.5 mm
• length 2200 mm

clamps

• clamp made of 25x2 flat bar
• PVC spacer
• M8 screw, M8 nut, M8 washer

Foundations

• concrete slab with the pattern H 250 mm x 2450 mm
• H 250 mm concrete connector
• The maximum dimension is 5 m in the so-called "light", other dimensions on request.

Corrosion protection hot dip galvanizing powder coating (polyester)
