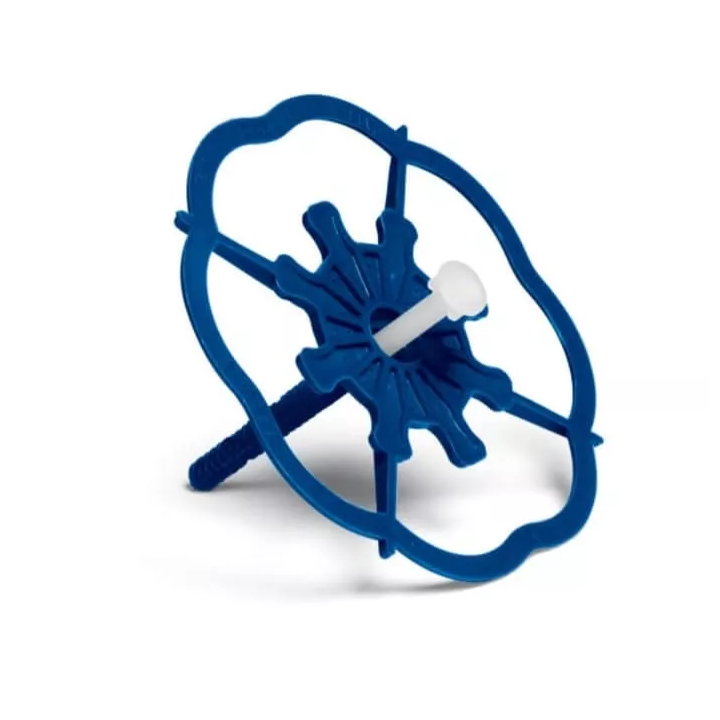

Baumit - StarTrack Blue mounting anchor

Mounting anchor for fixing the system to thermal insulation based on thermal insulation foamed polystyrene boards. The minimum anchoring depth is 40 mm and the pin length is 55 mm.

Features

• for walls in new buildings
• directly onto the wall substrate
• easy and safe processing
• permanent assembly

Application

The polystyrene is installed by driving the anchor directly into the load-bearing wall. After installing the polystyrene, the anchors are covered with a putty. Anchors are an excellent solution also in the installation of insulation to the previous insulation layer and to a weak top layer.

Technical data

• shank diameter = drill diameter 8 mm
• spindle length 55 mm
• minimum drill hole depth 60 mm
• on old plaster, maximum 40 mm thick
• minimum anchoring depth in load-bearing substrates 40 mm
• use categories A
• scope of application concrete, solid brick, hollow brick
• material consumption approx. 6 pieces / m
• package of 300 pieces
