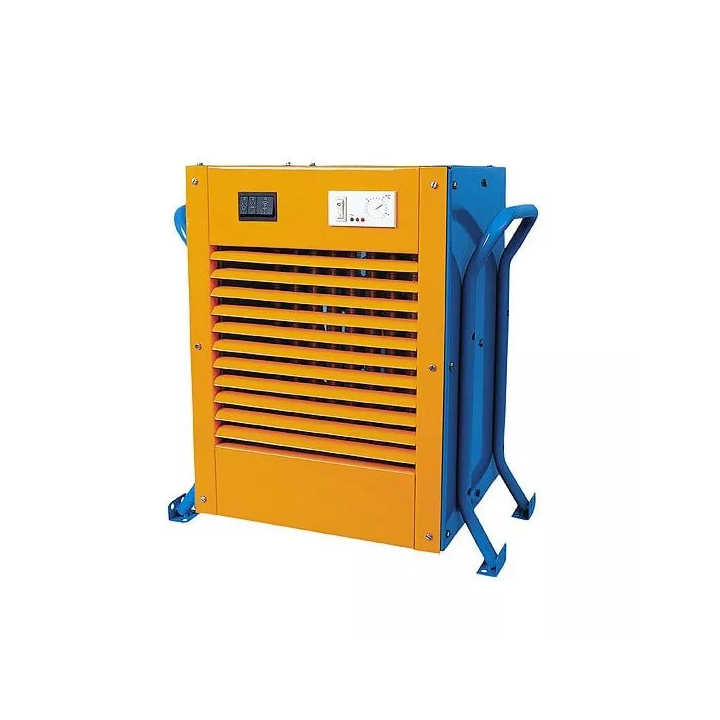

Convector - ZGW heating and ventilation set

ZGW water and steam heating and ventilation sets are intended for heating and ventilation of rooms with a large surface. The main component in it is a heater supplied with water or steam with an operating pressure of 1.9 MPa in the case of steel, and 0.6 MPa in the case of copper-aluminum. The heated air is blown out by the WWS axial fan.

The device can work as stationary (standing or attached to the wall) or portable (connected to the installation by means of flexible pressure hoses). Keep a minimum distance of 200 mm from the building walls when installing the device stationary.

Building

The whole casing is made of painted steel sheets.
