Jawar - chimney system for all types of Universal Plus fuels with ventilation

Jawar Uniwersal Plus is a three-layer chimney with isostatic ceramics, designed for removing flue gases from boilers fired with various types of fuels: natural gas, heating oil, wood, coal, pellets, eco-pea coal and other solid fuels. It can work at high gas temperatures in the outlet, with low-temperature, condensing boilers (in the case of silicone bonding), as well as with traditional devices and with a closed combustion chamber.

Technical data

• designed for removing flue gases in the temperature range from 60 C to 600 C
• entire chimney insulation
• lightweight hollow concrete blocks
• internal channel flow resistance 0.0015 m
• isostatic ceramics
• resistance to thermal shocks
• Soot fire resistance (1000 C)
• corrosion and condensate resistance (W3)
• low water absorption
• low heat capacity
• wet and dry operation (dry and wet exhaust)
• high tightness of pipe connections thanks to socket connection (class N1)
• chimney system with CE marking in accordance with EN 13063-1, EN 13063-2, EN 13063-3
• 30 years warranty

Building

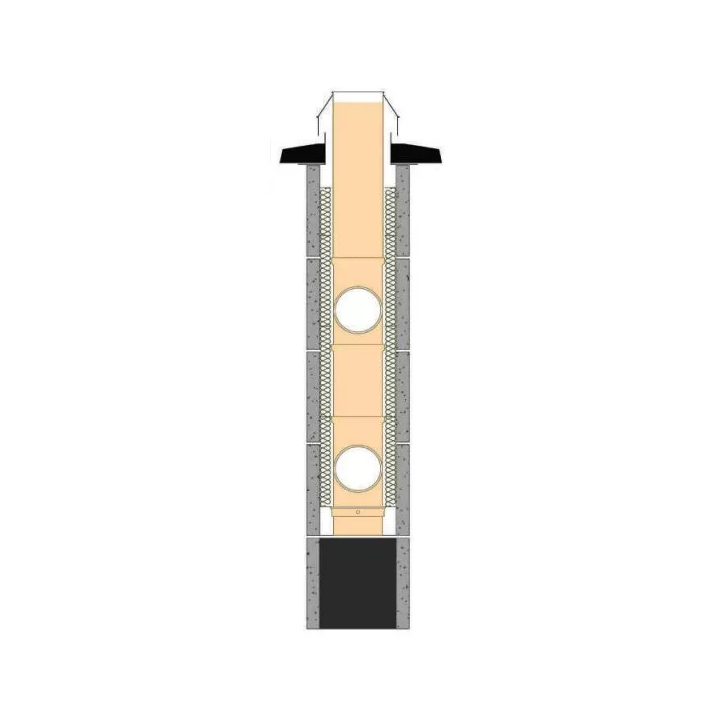

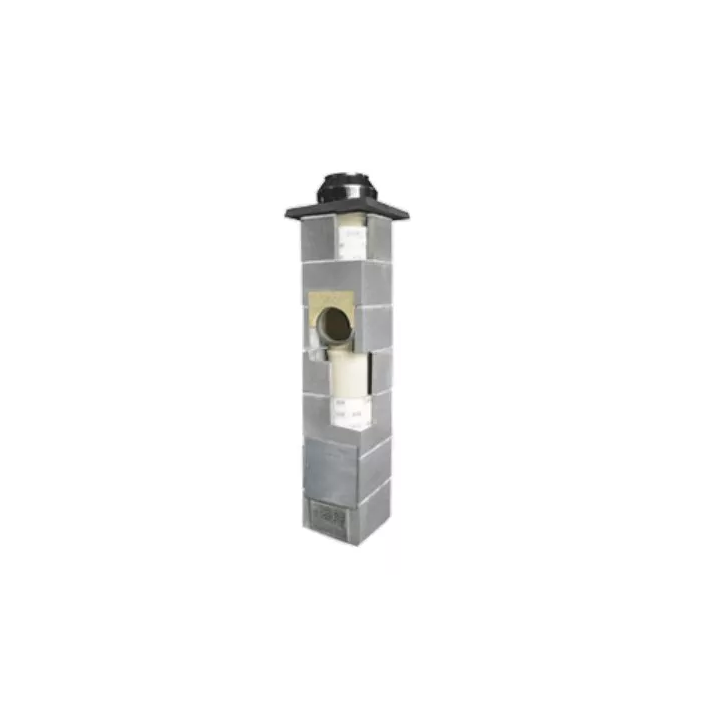

The Universal Plus chimney system consists of ceramic pipes and fittings, a lightweight perlite concrete block and mineral wool insulation. The round profiled ceramic pipe is made by isostatic pressing. Possibility of additional cover plate purchase.
