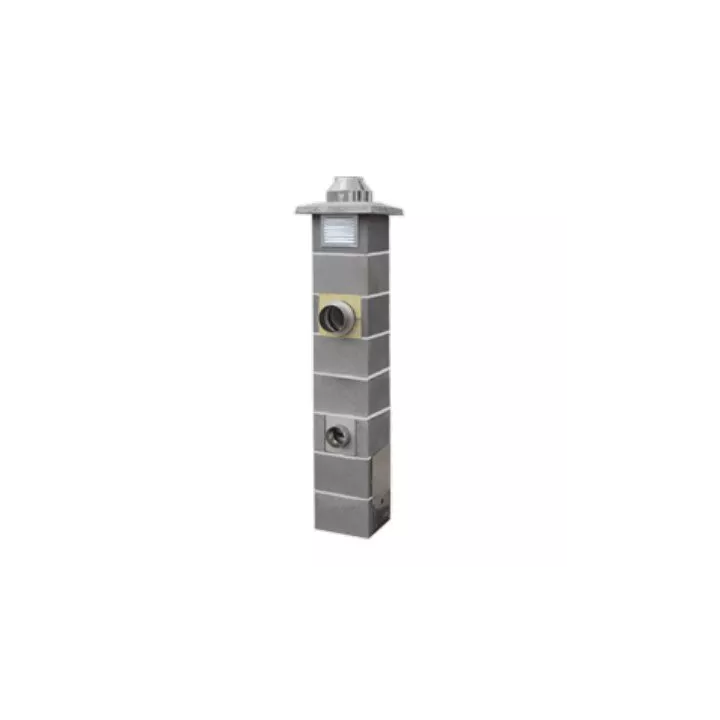

Jawar - chimney system for solid fuels Nord Plus

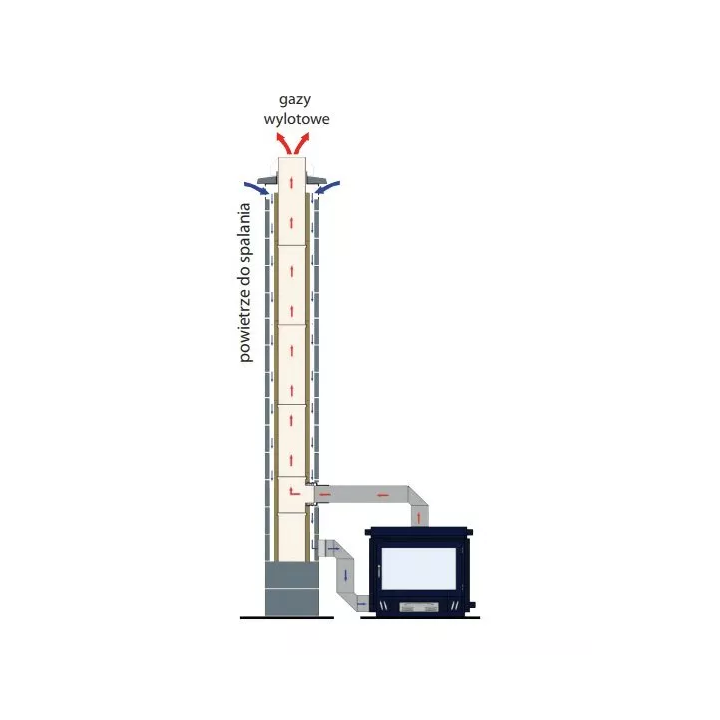

Jawar Nord is a four-layer air-flue chimney system for removing flue gases from solid fuel fired appliances - a fireplace and a tiled stove. It provides the furnace with a constant supply of combustion air. Can be placed directly on flammable elements (up to 400 C).

Technical data

• designed for removing flue gases in the temperature range from 60 C to 600 C
• mineral wool insulation
• lightweight hollow concrete blocks
• internal channel flow resistance 0.0015 m

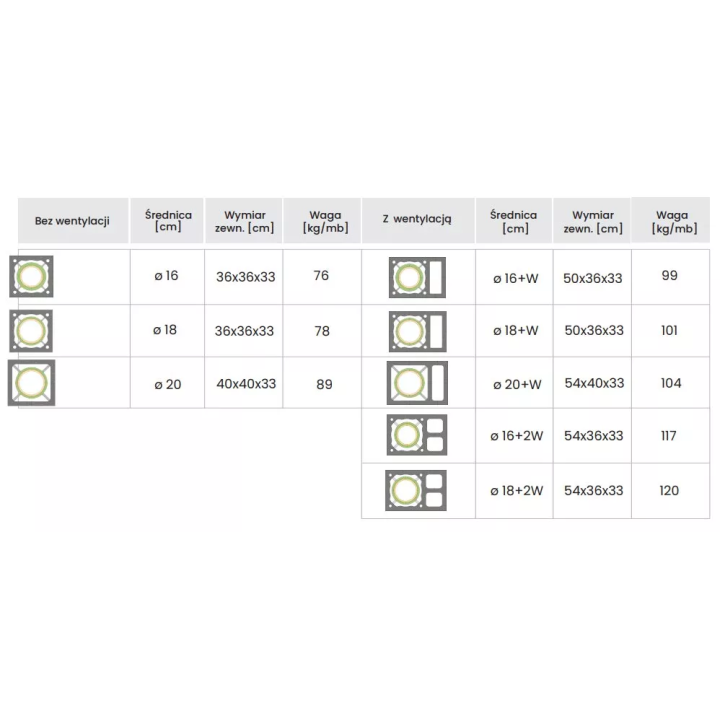

• diameters from fi 16 to fi 20
• isostatic ceramics
• resistance to thermal shocks
• soot fire resistance
• resistance to building corrosion
• low water absorption
• low heat capacity
• wet and dry operation (dry and wet exhaust)
• tightness class N1
• chimney system with CE marking in accordance with EN 13063-1, EN 13063-2, EN 13063-3
• 30 years warranty

Building

The Nord chimney system consists of a ceramic pipe, a lightweight perlite concrete block and mineral wool insulation. The ceramic pipe is made by isostatic pressing. An additional seal in the form of a cleanout lid and an insulated inspection door were used for the cleaning trout. A flue connector with a cord provides compensation in the case of extensibility of the connecting element. Possibility of additional cover plate purchase.
