Instal Projekt - Stick bathroom radiator

The Stick radiator is designed for bathrooms. It was covered with a varnish coating. It is made of precision steel. It is available in variants with bottom connection - 370, 470 mm, bottom type D50 - 50 mm, and side connection - 500 mm. Connections: G 1/2 ''. It has a vent hidden behind. The shapes of the radiator adapt very well to the square bathroom fittings.

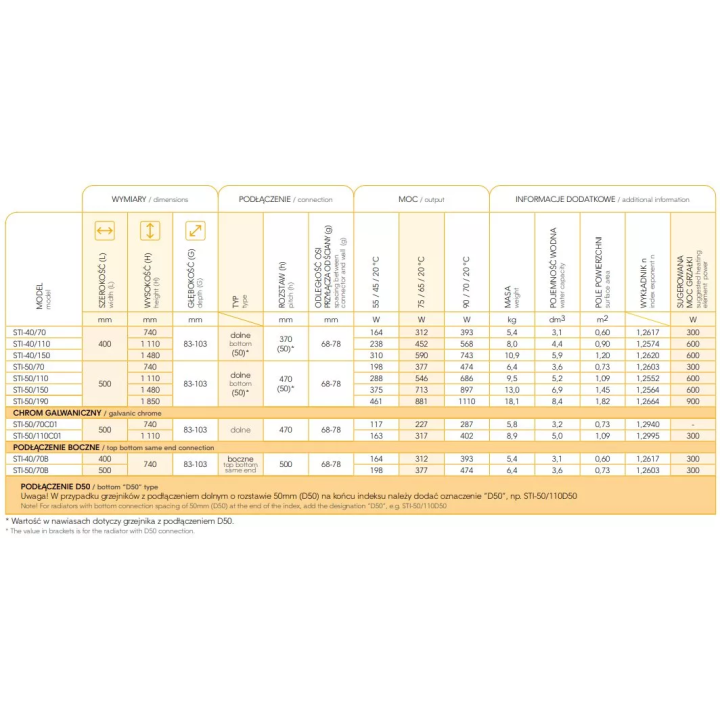

Technical data

• thermal power from 264 to 881 W for 75/65/20 C
• thermal power from 332 to 1110 W for 90/70/20 C
• maximum working temperature 95 C
• maximum working pressure 1 MPa

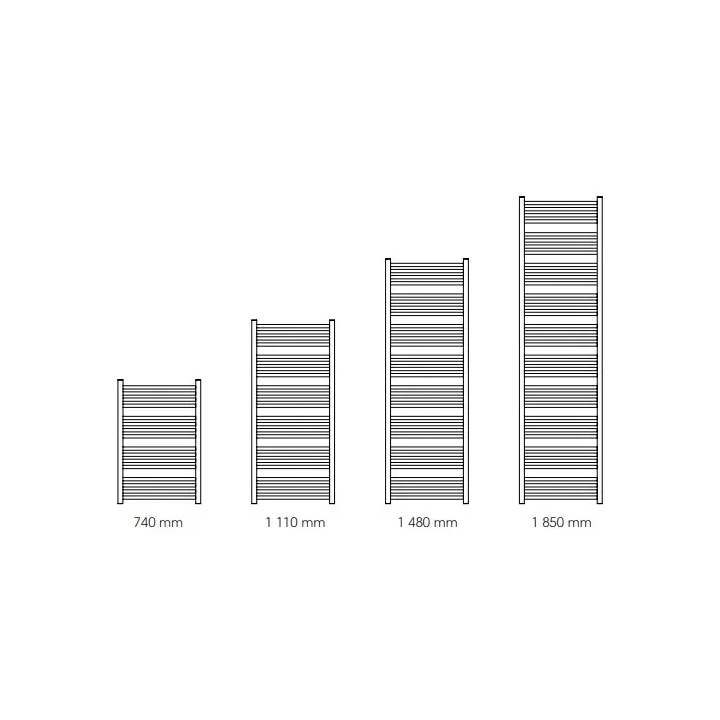

• height from 740 to 1850 mm
• width 400, 500 mm
• depth from 83 to 103 mm

White silk bottom radiator as standard. The set includes a heater, mounting kit, vent, manual, warranty card, packaging. The radiator is also available with a galvanic coating.

Stick heater system at a given height.
