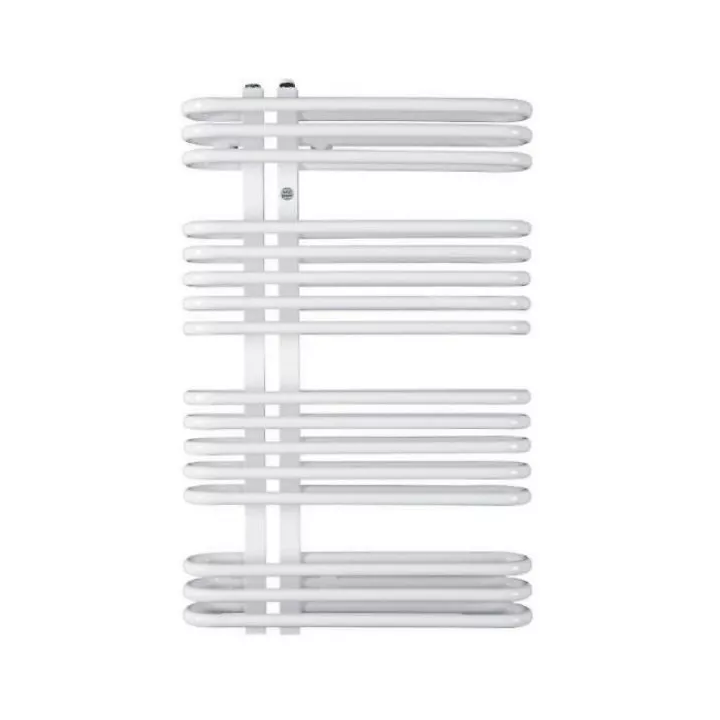

Instal Projekt - Astro bathroom radiator

The Astro radiator is an asymmetrical bathroom radiator with two rows of pipes ensuring double heating power and drying speed. It was covered with a varnish coating. It is made of precision steel. It comes with a bottom connection type D50 - 50 mm, and there is also a possibility of cross connection. Connections: G 1/2 ''. It is possible to mount the radiator with a manifold on the right or left.

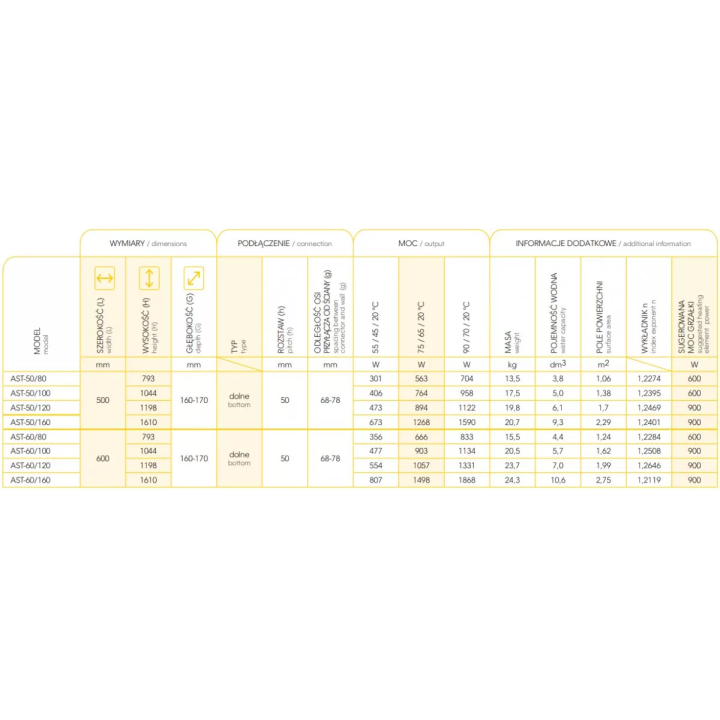

Technical data

• thermal power from 563 to 1408 W for 75/65/20 CQ
• heat output from 704 to 1868 W for 90/70/20 C
• maximum working temperature 95 C
• maximum working pressure 1 MPa
• height from 793 to 1610 mm
• width 500, 600 mm
• depth from 160 to 170 mm

As standard, a white silk radiator with D50 bottom connection. The set includes a heater, mounting kit, vent, manual, warranty card, packaging.

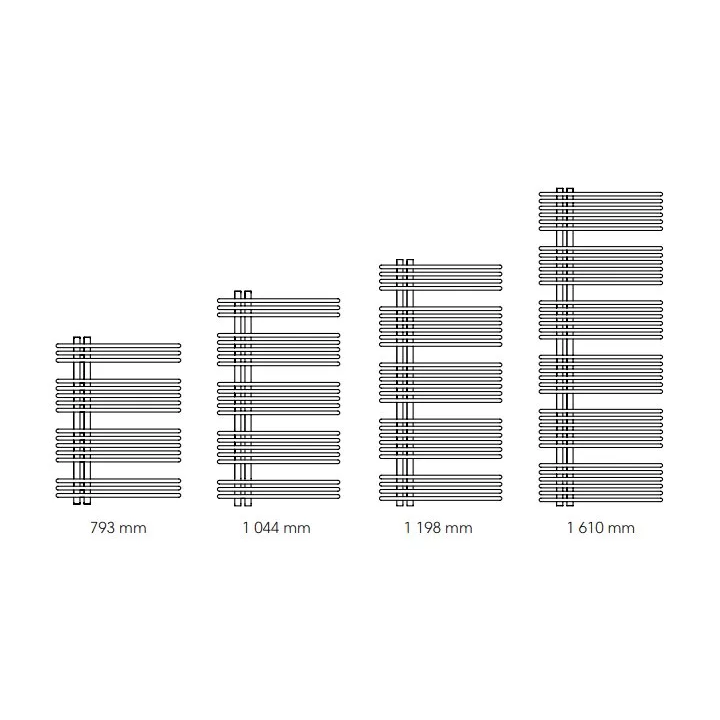

Astro radiator system at a given height.
