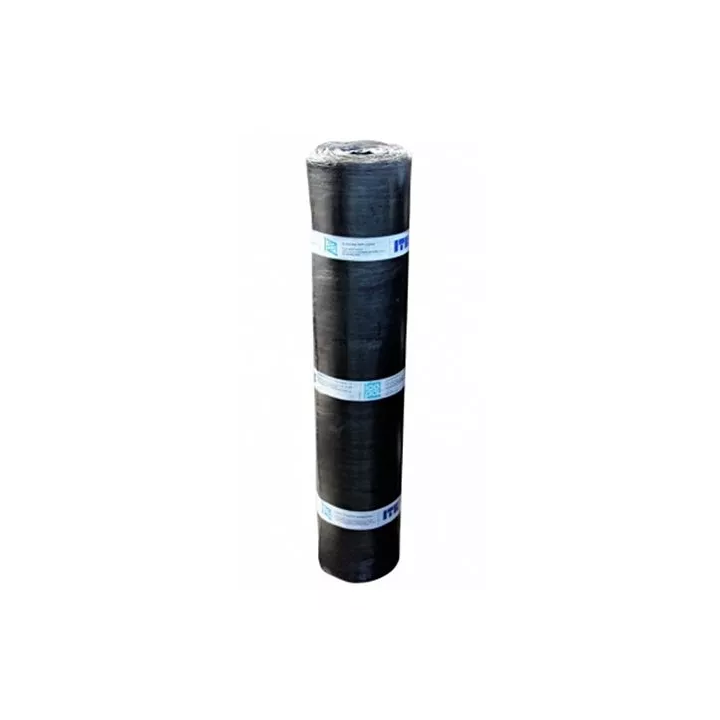

Papa on a basis of glass fabric with a double-sided asphalt coating consisting of SBS modified asphalt with a mineral filler. The underside is secured with a plastic film. The top side is covered with a fine-grained mineral sprinkle. Papa is produced according to the "Quick Profile" technology. The product is used for making a base layer in multi-layer waterproof roof coverings.
Technical data
- length * ≥ 7.5 m (according to EN 1848-1)
- width * ≥ 1.0 m (according to EN 1848-1)
- straightness deviation ≤ 15 mm / 7.5 m or proportionally for other lengths (according to EN 1848-1)
- thickness 3.8 5% (according to EN 1849-1)
- watertight at a pressure of 10 kPa (according to EN 1928, method A)
- reaction to fire class E (according to EN 13501-1)
- tensile mechanical properties - maximum tensile force: longitudinal direction 1200 200 N / 50 mm; transverse direction 2500 700 N / 50 mm - according to EN 12311-1
- mechanical properties in tension - elongation: longitudinal direction 8 4%; cross direction 8 4%
- tear strength (nail): longitudinal direction 150-50 N; transverse direction 150 50 N - according to EN 12310 -1
- flexibility at low temperature -5 C / ∅30 mm (according to EN 1109)
- resistance to flowing 80 C (according to EN 1110)
- water vapor transmission = 20,000 (according to EN 13707)
- package 7.5 m 2 / 44.4 kg
* other length or width possible, but not lower than declared
Caution
Icopal papers are available mainly in full-pallet quantities. In the case of smaller quantities, an additional fee will be charged for depalletizing PLN 100 net.
