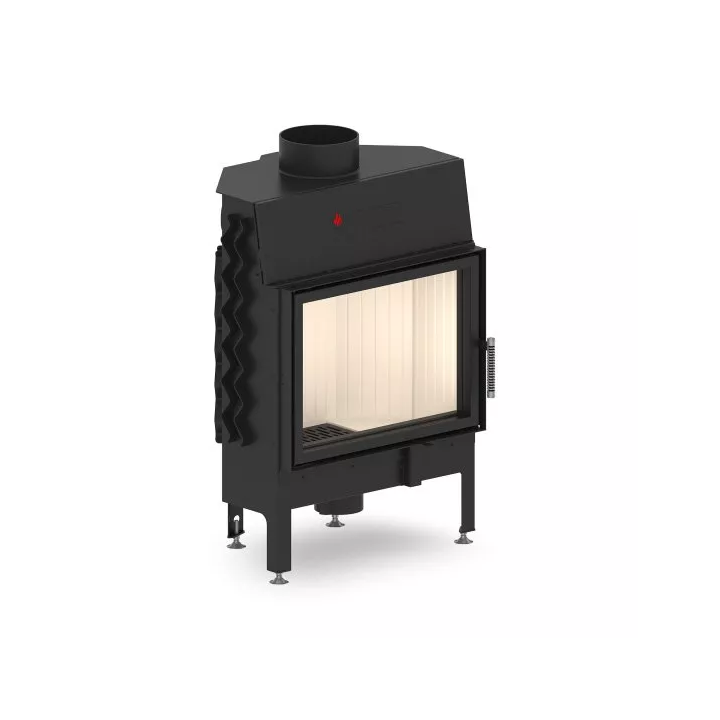

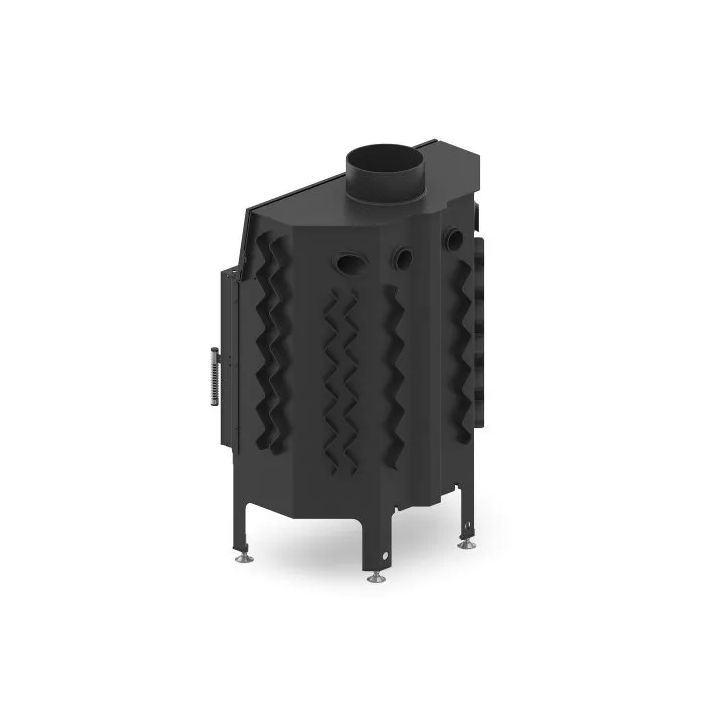

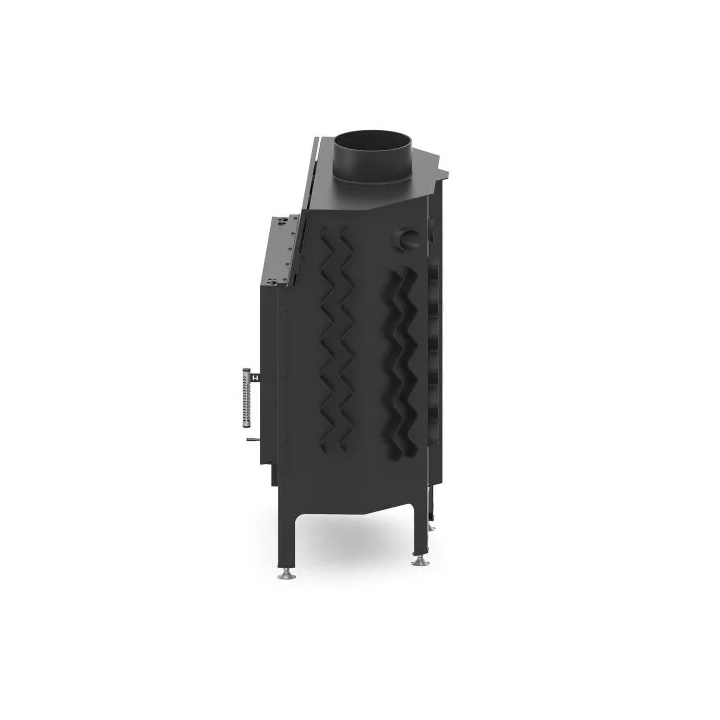

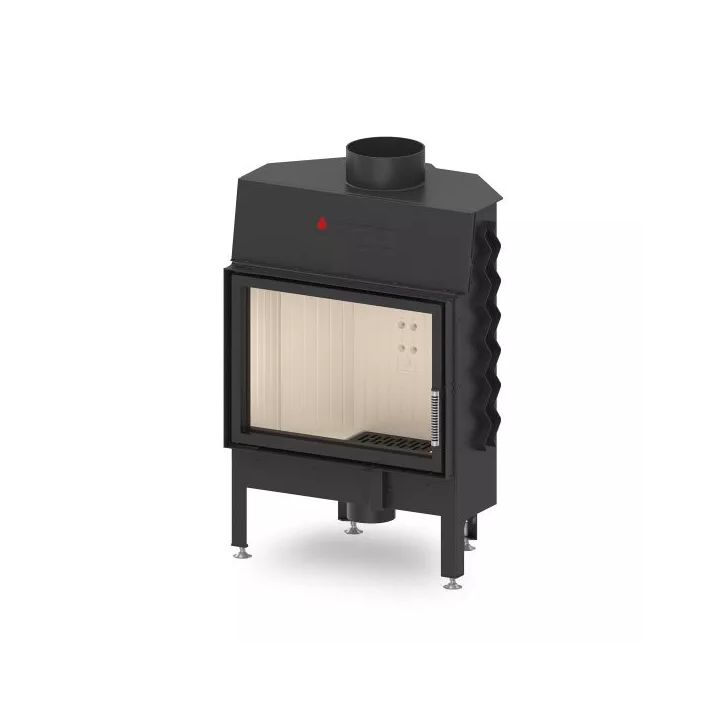

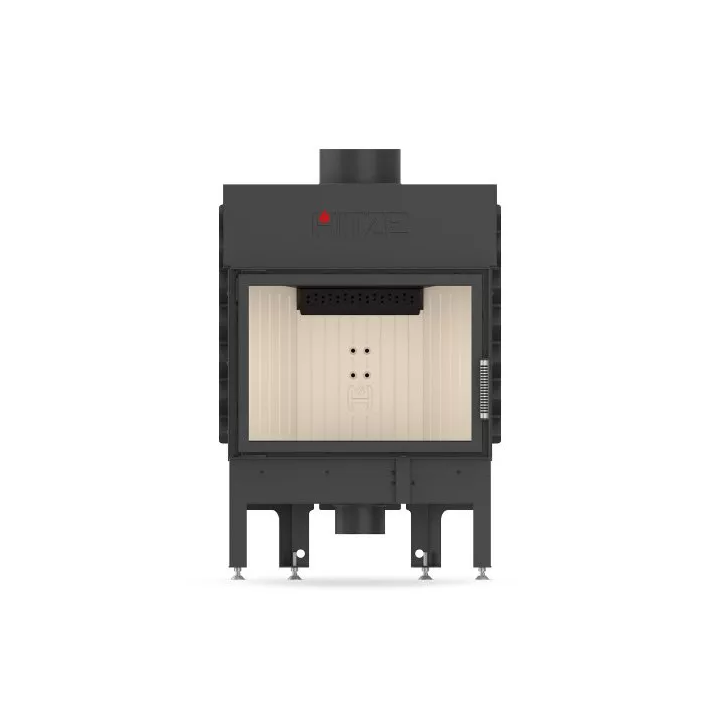

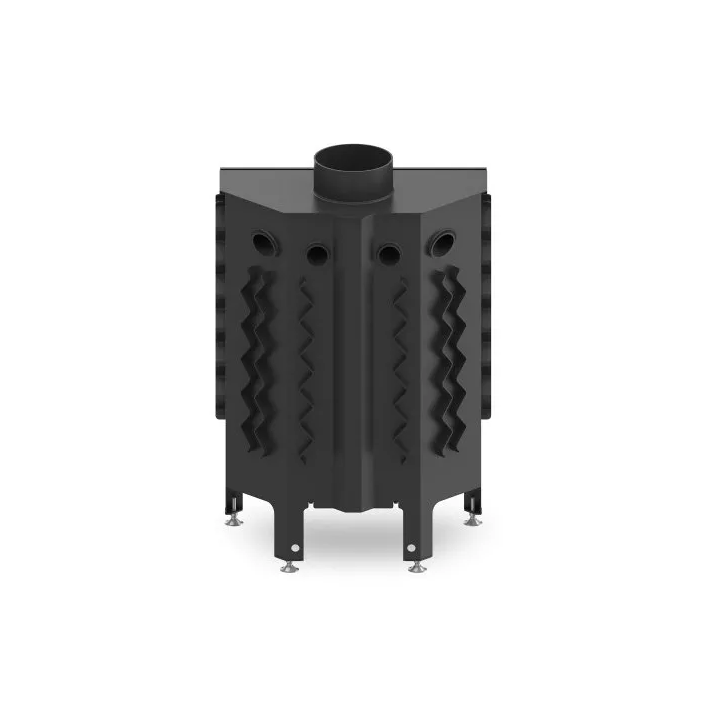

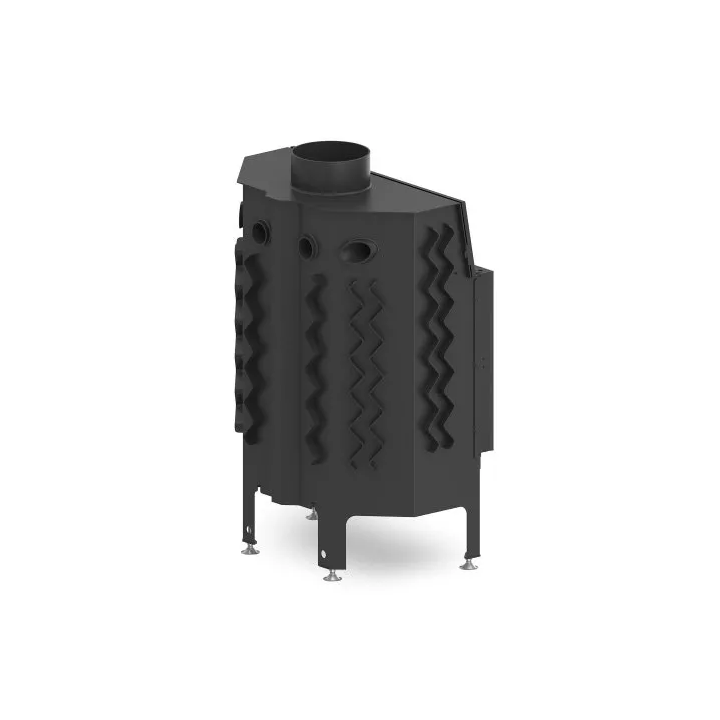

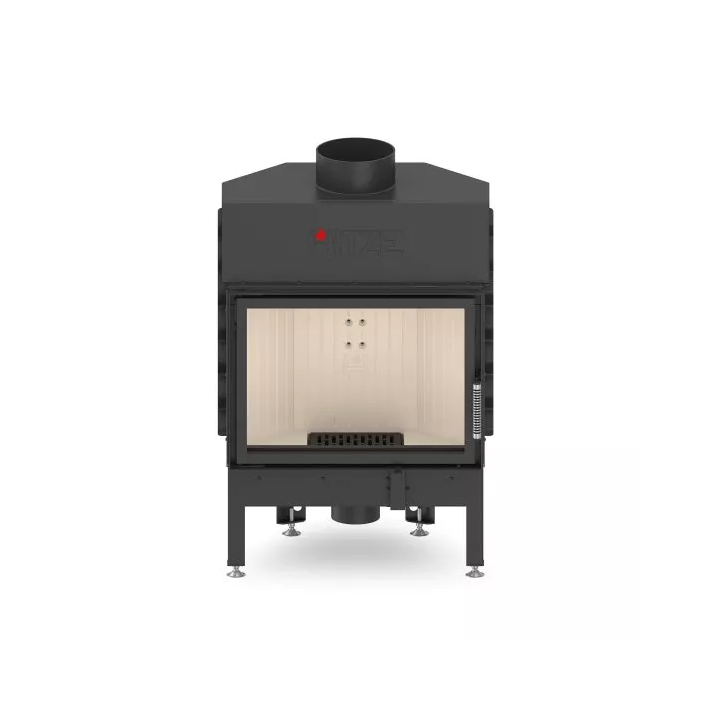

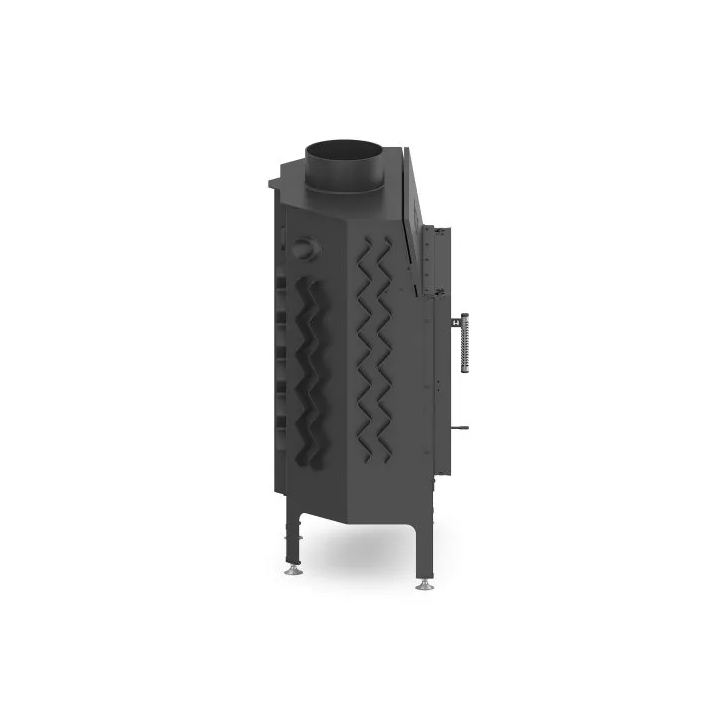

Hitze - air fireplace insert Albero 11 SH

Price: zł7,386.99
Tax included
Specially designed rear part of the body allows supply of secondary air to the upper part of the furnace. The steel base of the insert is equipped with a cold outdoor air intake damper, standard. The insert jacket is made of 3 mm thick boiler steel.
Product availability: Dostępny
Share

  • The contribution jacket is made of 3 mm thick boiler steel grade P265GH according to EN 10028-2
  • The elements of the insert are manufactured with the help of modern CNC devices (Laser 2D, 3D Laser, Press brakes).
  • Insert welded on the welding robot by the MAG method, guaranteed high quality and aesthetics of the welds.
  • Steel door made of a special profile that guarantees rigidity and high temperature resistance.
  • Heat-resistant ceramic glass with an operating temperature up to 800 C.
  • The steel base of the insert is equipped with a cold outdoor air intake damper, standard.
  • The insert is equipped with an air curtain that guarantees that the clean glass effect is largely maintained.
  • The specially designed rear part of the body enables the supply of secondary air to the upper part of the furnace. It allows you to increase the efficiency of the device by burning combustion gases.
  • The price applies to the version with the Standard glass and without the cover. It is possible to order versions with an external glass and with Decor glass and with a masking cover: M01 (4/4 cover) and M02 (3/4 cover).

hitze fireplace insert Albero11 KW

  • Brand
  • In stock
    1000 Items
  • MPN
    30145

  • weight
    131 kg
  • material
    stal kotłowa 3mm
  • Outlet diameter
    200 mm
  • fuel
    brykiet
    drewno drzew liściastych
    węgiel brunatny
  • nominal power
    11 kW
  • efficiency
    84 %
  • flue gas temperature
    220,5 ˚C
  • maximum log length
    400 cm
  • dust emissions
    0,038 g/m³
  • operating range of heating
    6 - 13 kW
  • CO
    0,099 g/m³
  • the dimensions of the glass
    590 x 430 mm
  • dimensions contribution
    575 x 310 mm

hitze_albero_11_s_h_karta_techni

Hitze Albero 11 S.H - karta techniczna

Download (630.86KB)
