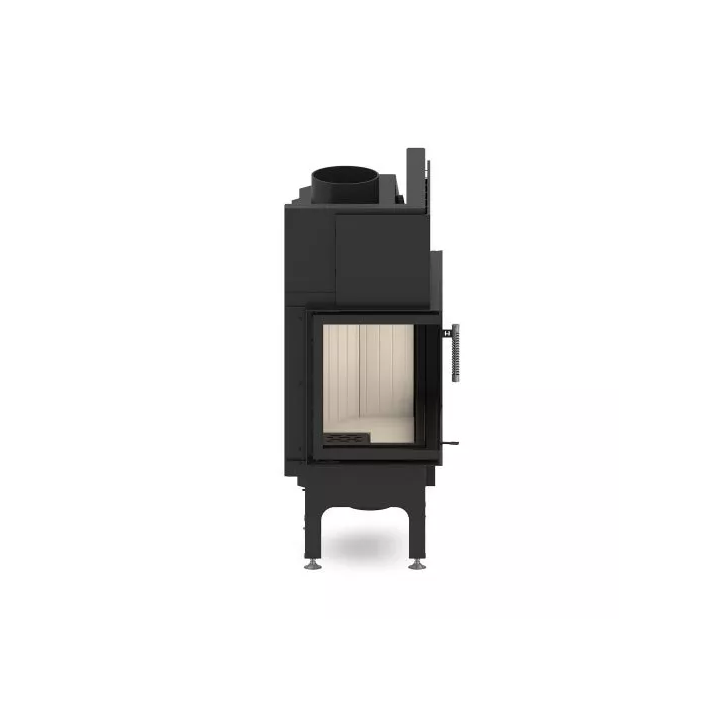

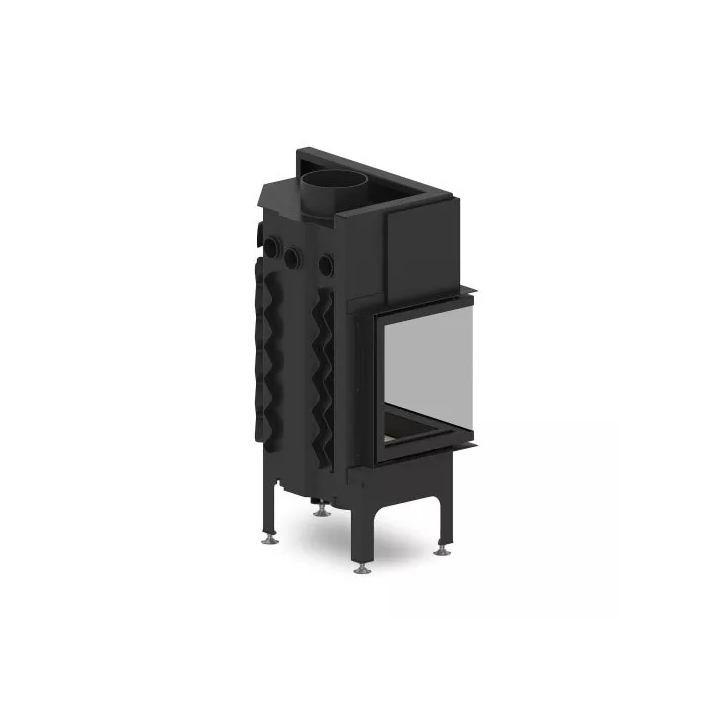

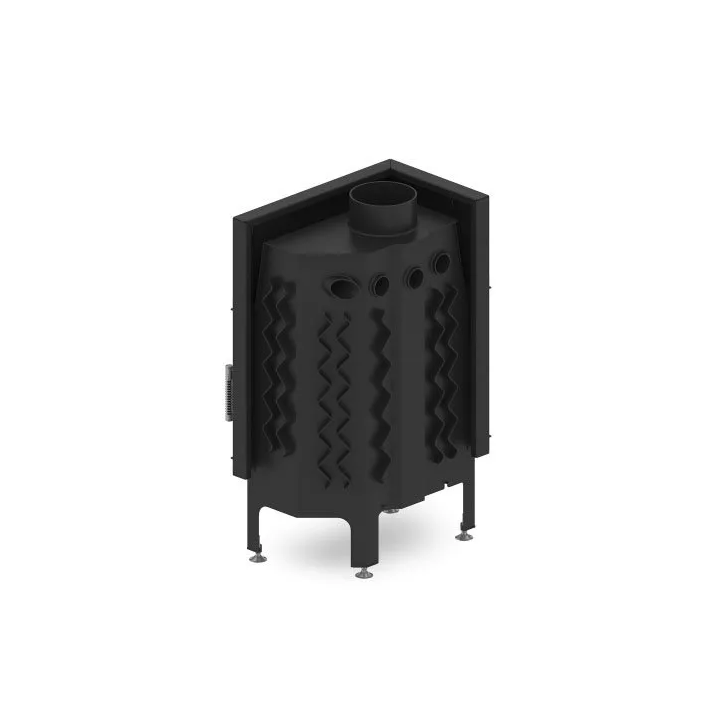

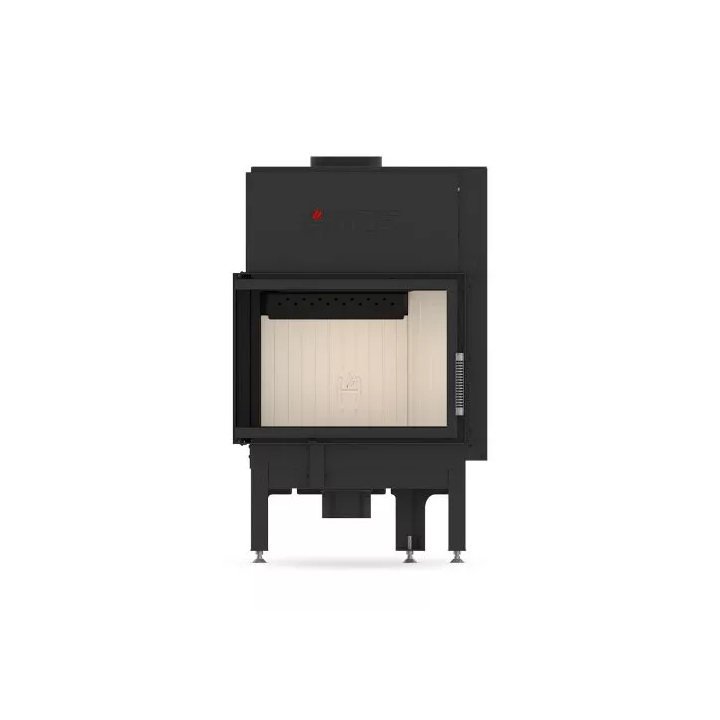

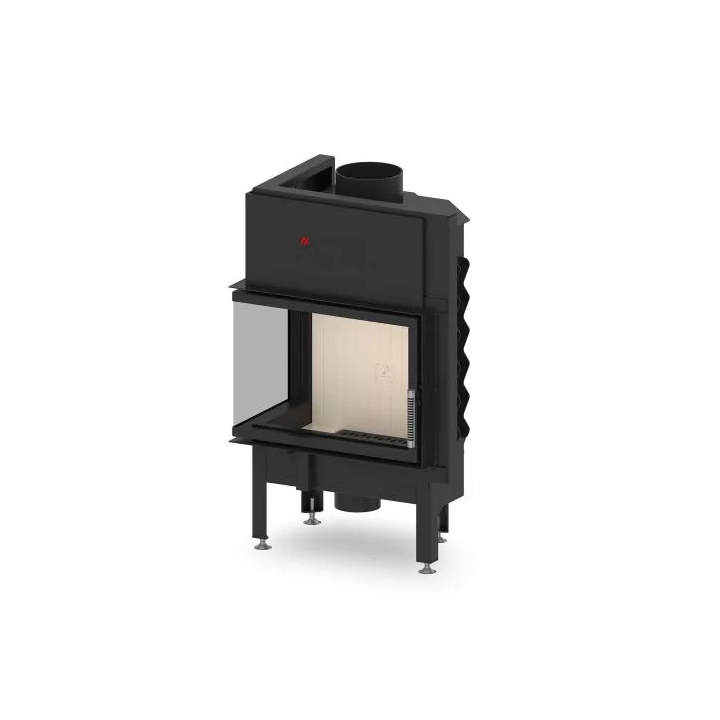

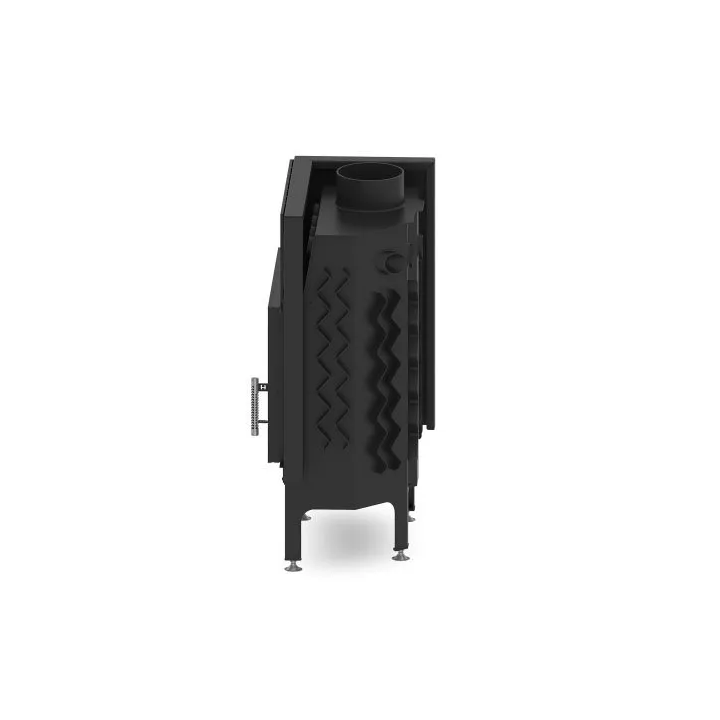

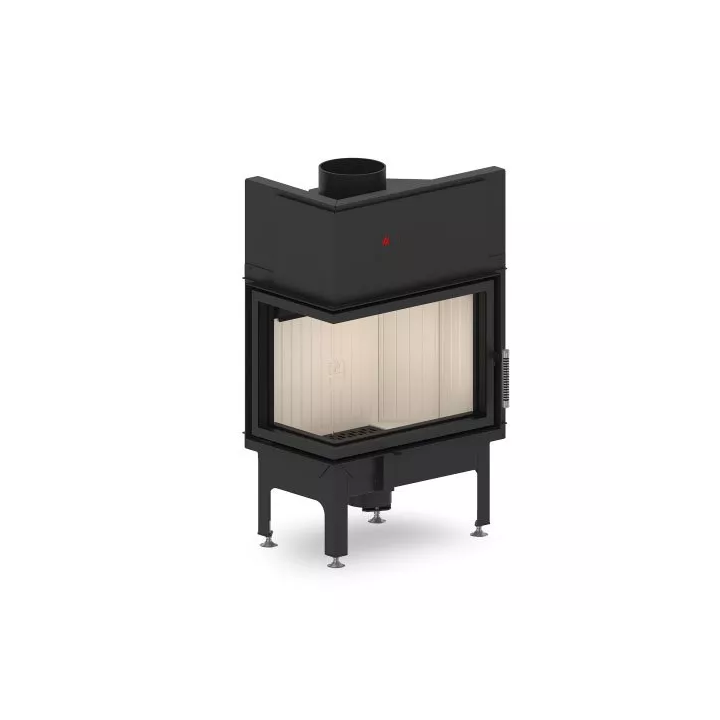

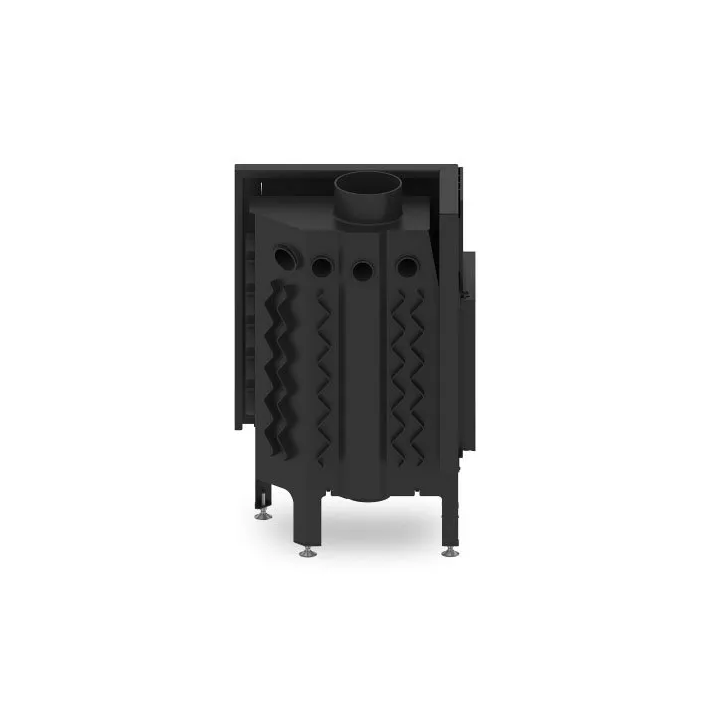

Hitze - air fireplace insert Albero 9 LH

Price: zł8,008.17
Tax included
The insert jacket is made of 3 mm thick boiler steel. Heat-resistant ceramic glass with an operating temperature up to 800 ° C. The insert is equipped with an air curtain that guarantees that the clean glass effect is largely maintained.
Product availability: Dostępny
Share

Fireplaces from the Albero line are equipped with an air inlet with an adjustable throttle and feet allowing for optimal leveling. Inside each fireplace there is a ceramic insert that accumulates heat in the combustion chamber and is resistant to temperatures reaching up to 1000 C. A specialized air curtain is responsible for high purity combustion, and the afterburning system of the resulting exhaust gases increases the fireplace's thermal efficiency and reduces carbon dioxide emissions .

The frame of the fireplace door is made of a special extremely thin profile, which ensures adequate rigidity of the fireplace front door and their tightness. In addition, the thin profile produces the "large glass" effect, ie it increases the size of the firebox and flames optically.

HITZE fireplaces have all the necessary certificates issued by the State Institute of Power Engineering, confirming their highest quality, safety of use and technical parameters.

  • The contribution jacket is made of 3 mm thick boiler steel grade P265GH according to EN 10028-2
  • The elements of the insert are manufactured with the help of modern CNC devices (Laser 2D, 3D Laser, Press brakes).
  • Insert welded on the welding robot by the MAG method, guaranteed high quality and aesthetics of the welds.
  • Steel door made of a special profile that guarantees rigidity and high temperature resistance.
  • Heat-resistant ceramic glass with an operating temperature up to 800 C.
  • The steel base of the insert is equipped with a cold outdoor air intake damper, standard.
  • The insert is equipped with an air curtain that guarantees that the clean glass effect is largely maintained.
  • The specially designed rear part of the body enables the supply of secondary air to the upper part of the furnace. It allows you to increase the efficiency of the device
  • The price applies to the version with the Standard glass and without the cover. It is possible to order versions with an inner pane and Decor pane (+ optionally an inner pane) and with a cover: M01 (4/4 cover) and M02 (3/4 cover).

hitze fireplace insert Albero11 KW

  • Brand
  • In stock
    1000 Items
  • MPN
    30141

  • weight
    109 kg
  • material
    stal kotłowa 3mm
  • Outlet diameter
    180 mm
  • fuel
    brykiet
    drewno drzew liściastych
    węgiel brunatny
  • nominal power
    9 kW
  • efficiency
    78,2 %
  • flue gas temperature
    194 ˚C
  • maximum log length
    300 cm
  • dust emissions
    0,036 g/m³
  • operating range of heating
    5 - 10 kW
  • CO
    0,066 g/m³
  • the dimensions of the glass
    545 x 390 x 325 mm
  • dimensions contribution
    479 x 260 mm

hitze_albero_9_l_h_karta_technic

Hitze Albero 9 L.H - karta techniczna

Download (620.28KB)
