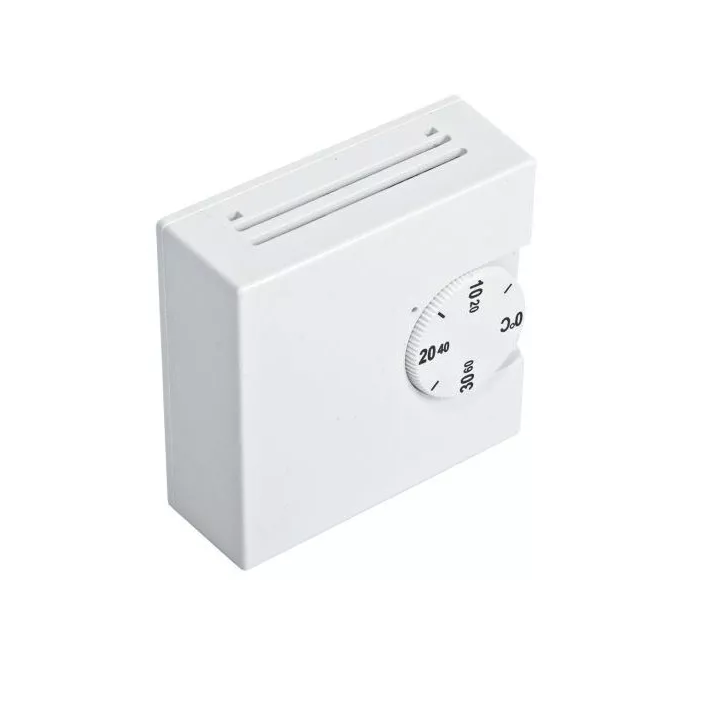

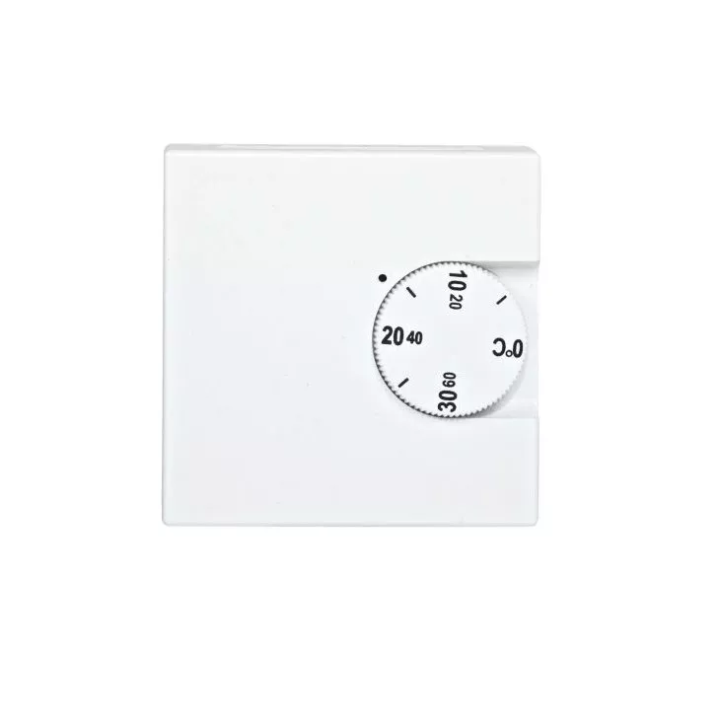

Harmann - automation - TPE electronic thermostat

Electronic room thermostat with built-in temperature sensor, designed to control the operation of electric heating devices (heating or cooling).

Technical data

• built-in temperature sensor
• supply voltage 1 ~ 230 VAC (work backup)
• insulation class II
• surface mounting
• degree of protection IP20
• temperature adjustment range from 0 C to 30 C or from 0 C to 60 C selected by a switch inside the device
• LED indicating operation status after start-up
• the controller enables connection of an external TJK10K duct temperature sensor (sold separately)
• change of hysteresis value in the range of 1-3 C by means of a built-in potentiometer
• the output is a potential-free NC / NO switching contact - 6 A / 230 VAC (resistive load)

attention

With a direct resistive load, the load current must not exceed 6 A. For higher power heating devices or two-phase or three-phase devices, an external contactor (sold separately) must be used.
