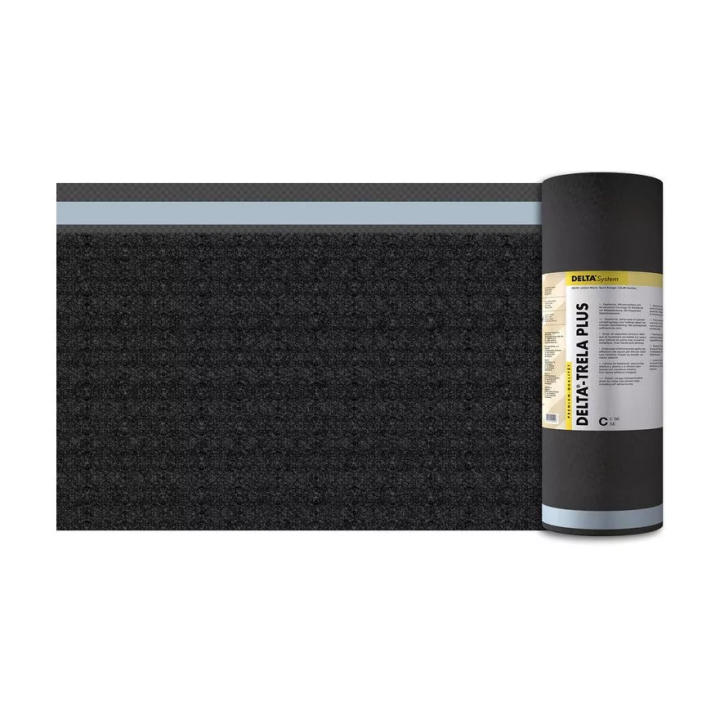

Dorken - Delta-Trela Plus separation layer
Is a flexible, diffusion-open separation layer. It can be used on all pitched roofs with metal, flat roofing and on metal facades. It consists of a carrier foil integrated with an 8 mm high profiled, openwork structure of tangled polyamide fibers. DELTA -TRELA PLUS ensures permanent ventilation of the underside of the metal cover. In addition, thanks to the carrier foil, which is open to water vapor diffusion, residual moisture from the roof structure and thermal insulation can be drained out. Mutes rain and hail sounds by 8 dB. Due to the high density of the profile structure, it guarantees that the panels can move without braking friction when temperature changes. DELTA-TRELA PLUS film has adhesive strips as standard on the long edges of the film.
-
fire classification - reaction to fireE
-
Number of cubic meters per pallet180 m2
-
number of rolls per pallet4 szt.
-
colorantracyt
-
length30 m
-
width1,5 m
-
mass per unit area380 g/m²
-
UV resistance2 m-ce
-
operating temperatureod -40 do +80 ºC
-
permeation of water vapor Sd0,04 m
-
waterproofW1
