Ytong Xella - YTONG YN prefabricated lintel beams

Lintels are used to cover the openings in the windows and doors in the external and internal walls, transferring loads from above the openings in the windows to the window openings.

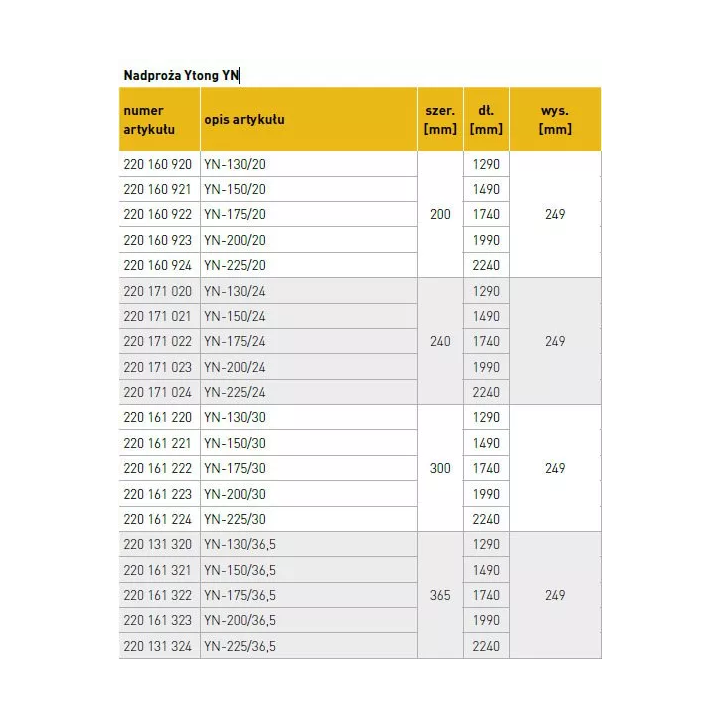

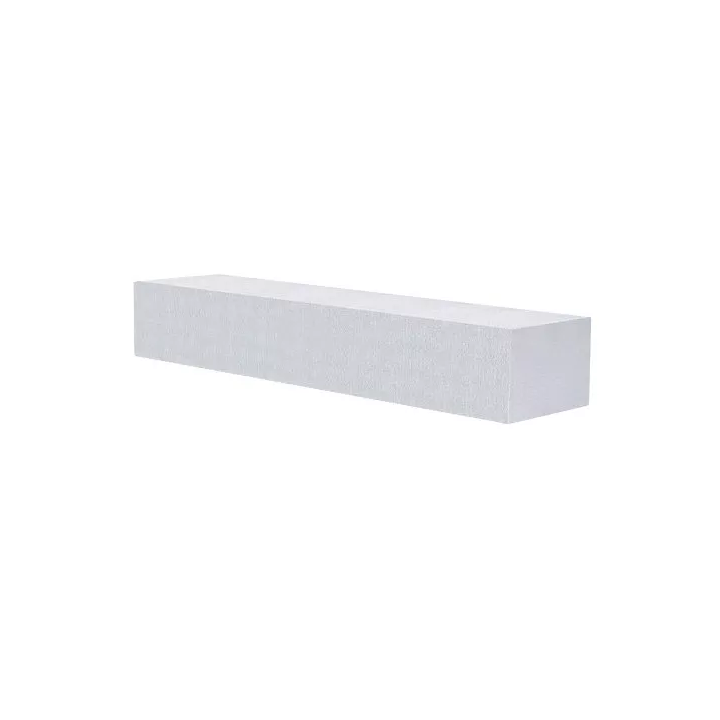

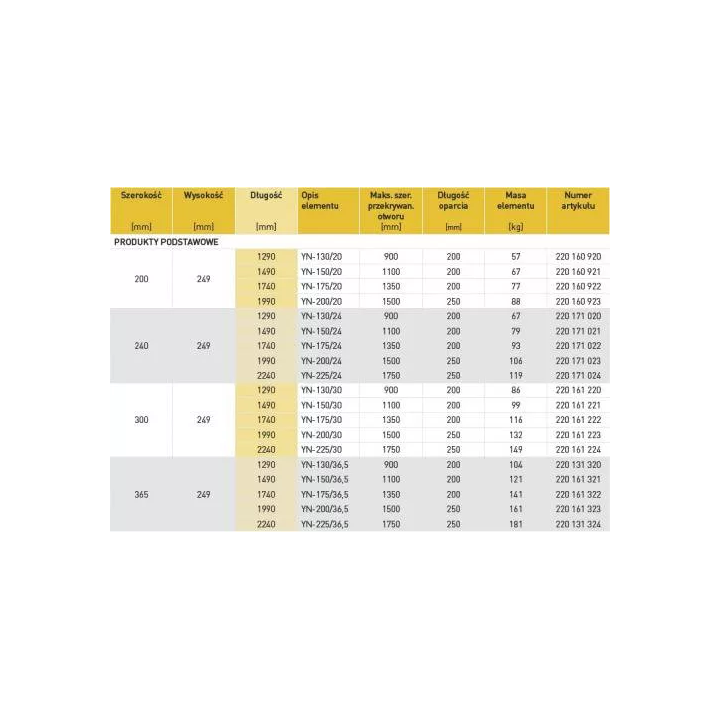

Made of reinforced cellular concrete. Height 24.9 cm. The maximum width of the covered hole is 175 cm. Used for openings in windows, doors and partitions, they provide adequate thermal insulation without additional insulation.

Very easy and quick to use - the lintel assembly takes a dozen or so minutes to two people. When installing the lintel, ensure that it is correctly fitted.

Assembly

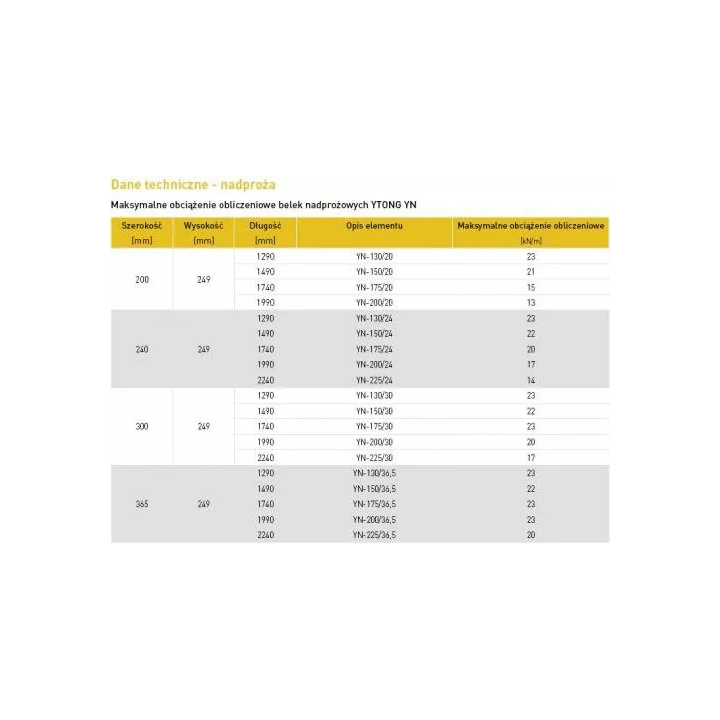

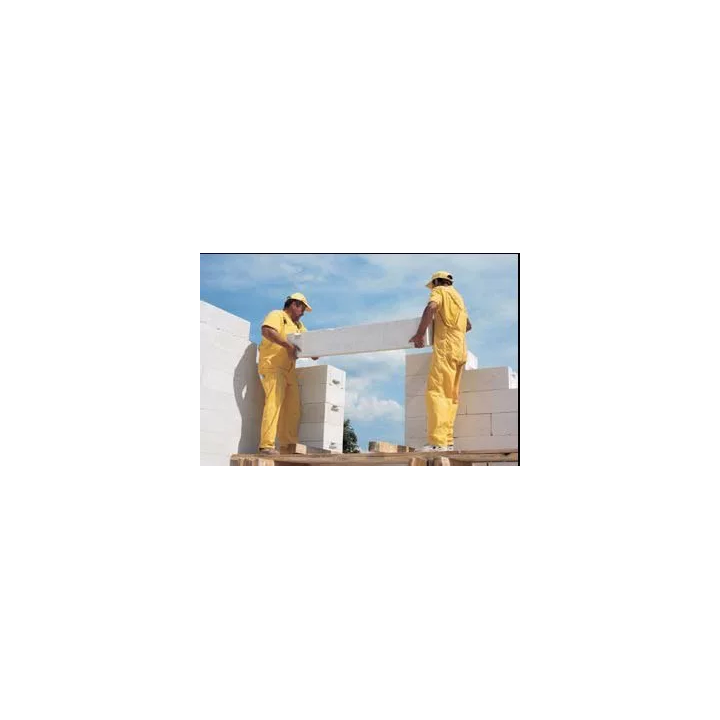

YTONG load-bearing lintels are made of reinforced cellular concrete with optimal thermal insulation and high load-bearing capacity. Installation takes several minutes and can be done by only two people. We place the beams symmetrically over window or door openings, placing them on YTONG mortar. During assembly, pay attention to their correct positioning - the YTONG inscription must not be upside down. If there is no inscription, we arrange the lintel according to the information card pinned to the side of the lintel.
