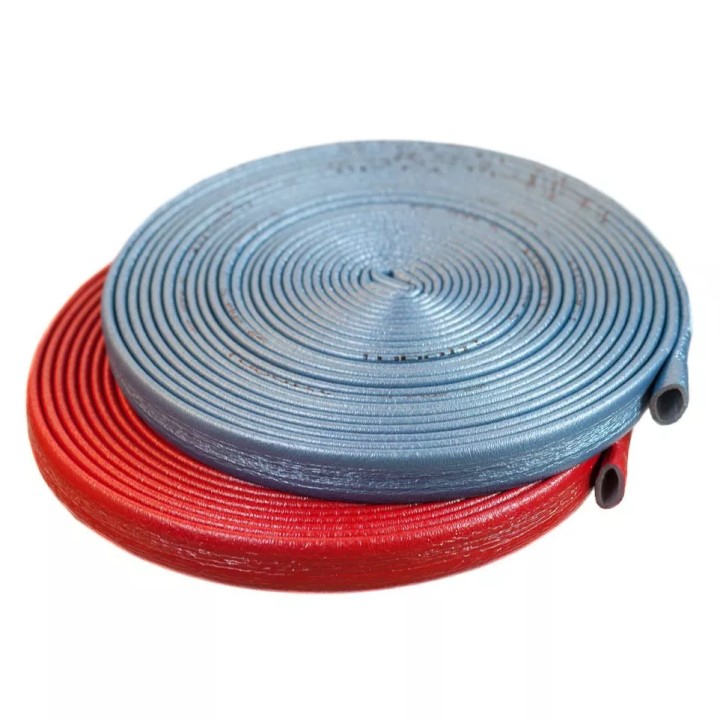

Armacell - Tubolit S + lagging
Heat insulation of heating and sanitary pipes as well as cold water pipes. Protects pipes against dew. Coatings covered with protective foil in red or blue, additional slip foil in the middle . When ordering, please specify the cover color.
Tubolit is a polyethylene insulation with a closed cell structure for heating and sanitary installations for thermal, acoustic and protective insulation intended for heating systems, hot and cold water installations and sewage pipes in residential and industrial buildings. Due to its low thermal conductivity coefficient, Tubolit effectively reduces energy losses by up to 90%, contributing to improving the building's energy efficiency and significantly reducing CO2 emissions to the atmosphere.
Technical data
- uncut
- maximum medium temperature: +100 ° C
- fire classification: flame retardant, non-spreading, non-dripping
- has a hygienic certificate and technical approval.
packaging
| nominal diameter DN | diameter | insulation thickness [mm] | ||
| copper | steel | 4 | ||
| [Mm] | [Mm] | [Mm] | number pcs / carton | quantity m / carton |
| 10 | 12 | 26 | 520 | |
| 8 | 15 | 26 | 520 | |
| 15 | 10 | 18 | 22 | 440 |
| twenty | 15 | 22 | twenty | 400 |
| 25 | twenty | 28 | 16 | 320 |
| 32 | 25 | 35 | 14 | 280 |
| 40 | 32 | 42 | 12 | 240 |
-
size4 mm
-
maximum temperature of use102 °C
-
thermal conductivity λ0,040 W/mK
-
density30 kg/m³
-
number of meters on a roll20 mb
-
internal diameter range lagging12 - 42 mm
-
carton dimension1030 x 520 x 54 mm
