Walraven - BIS Yeti® 335 frames

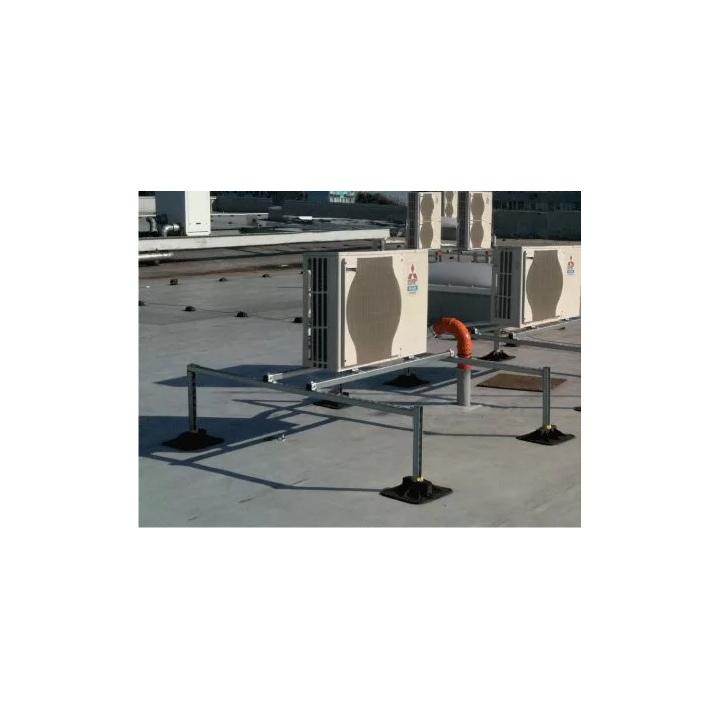

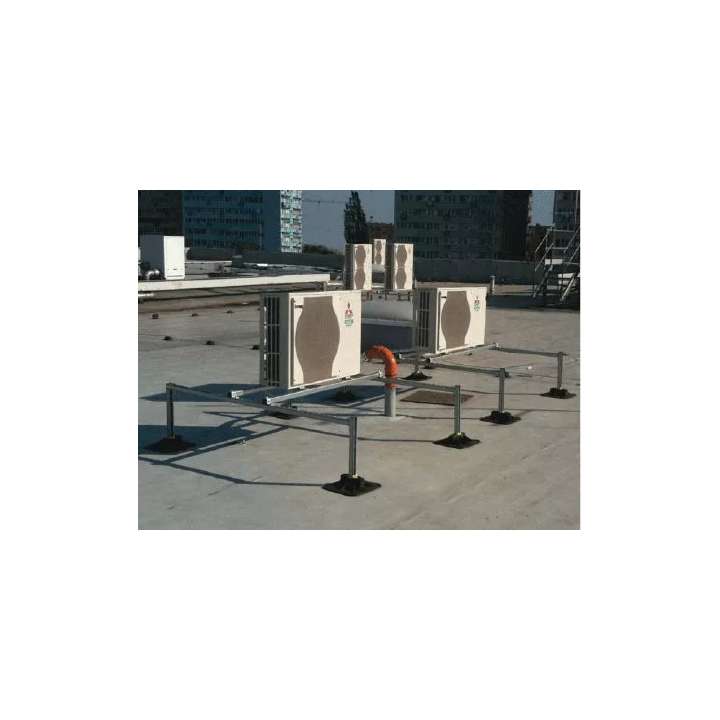

The Yeti 335 racks are a complete set for setting devices on flat roofs, suitable for the most commonly used air conditioning and ventilation units.

Properties

• anti-slip insulating mat that also provides vibroacoustic insulation included
• for the given size w, the permissible load capacity is specified, there is no need to perform additional calculations
• the weight of the device should not exceed 150 kg
• the top of the device should not be higher than 1.2 m above the roof level
• Feet made of WPC, plastic composite and wood fiber
• Also suitable for outdoor use
• resistance min. 1000 hours salt spray test (max 5% red rust) according to ISO 9227

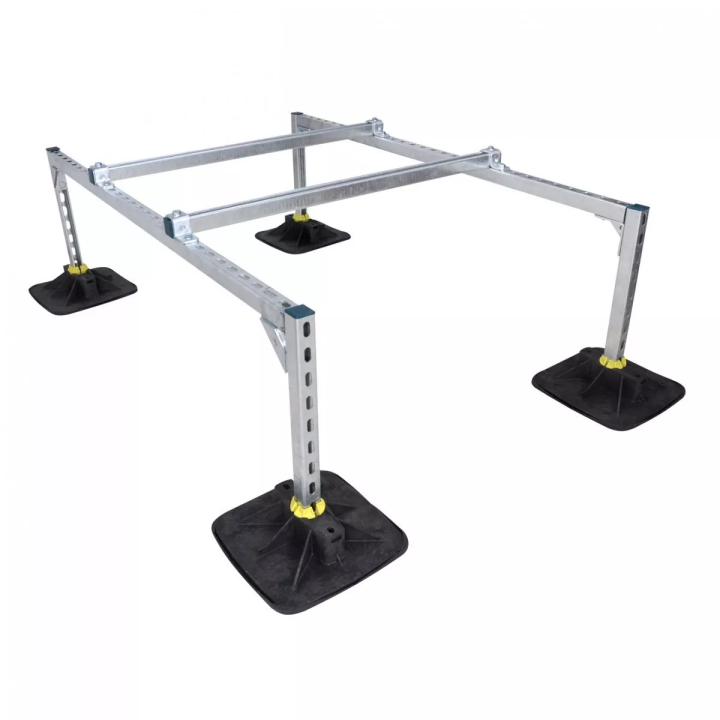

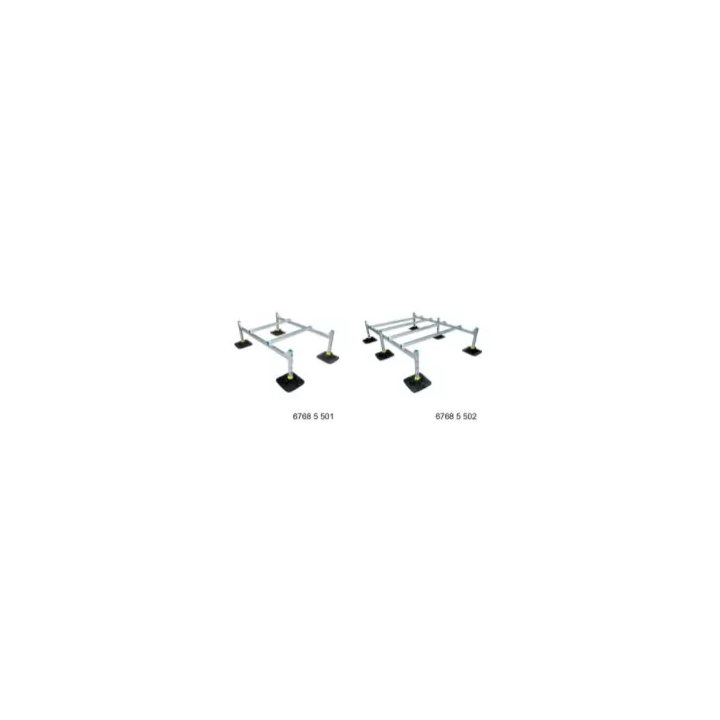

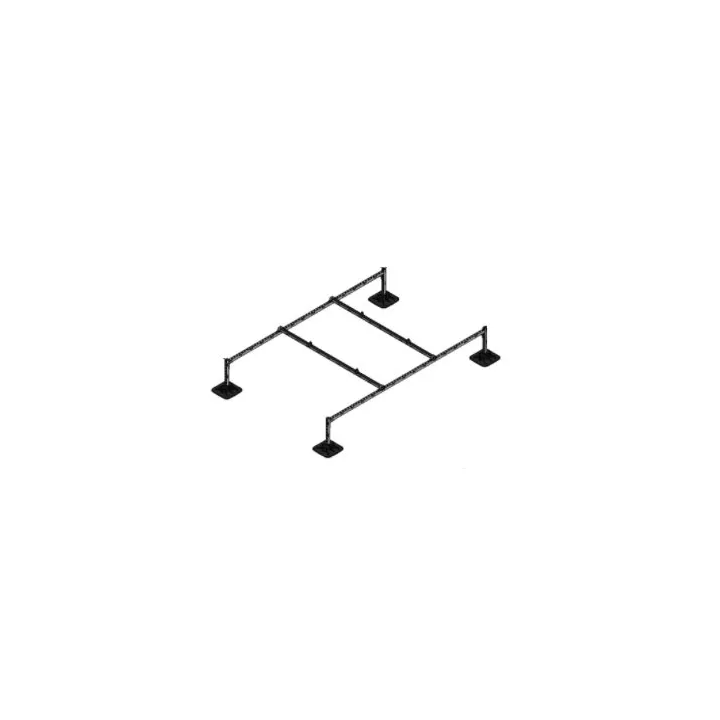

1 rack No. 67685501 for 1 device

• 4 x BIS Yeti 335 with a mat included (made of EPDM)
• 2 x 1.5 m BIS RapidStrut Mounting Rails DS 5 (BUP1000), with 0.5 m long sections pre-assembled on both sides - ready for installation in the BIS Yeti 335
• 2 x 1 m BIS RapidStrut Mounting rail DS 5 (BUP1000), as a support to the rack frame. The connecting elements are already pre-assembled on the rack frame.
• all mounting components, rail caps and screws are included in the package and most of them are pre-assembled

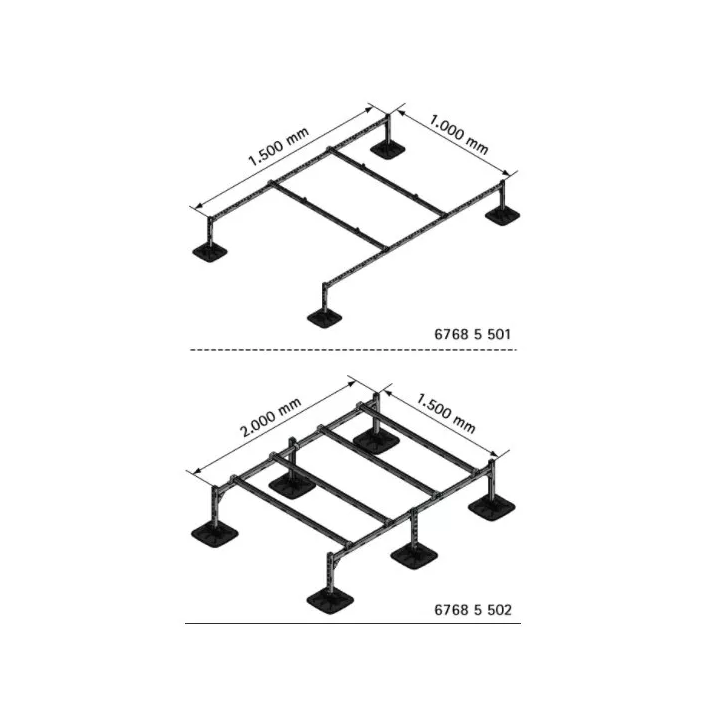

• dimensions 1000 x 1500 mm

Rack 2 No. 67685502 for 2 devices

• 6 x BIS Yeti 335 with a mat included (made of EPDM)
• 2 x 2 m and 4 x 1.5 m BIS RapidStrut Mounting Rails DS 5 (BUP1000), for use as longitudinal and transverse rails in a rack structure
• 6 x 0.5 m BIS RapidStrut Mounting rails DS 5 (BUP1000), for use as rack legs, with pre-assembled connecting elements
• all mounting components, rail caps and screws are included in the package and most of them are pre-assembled
• dimensions 1500 x 2000 mm
