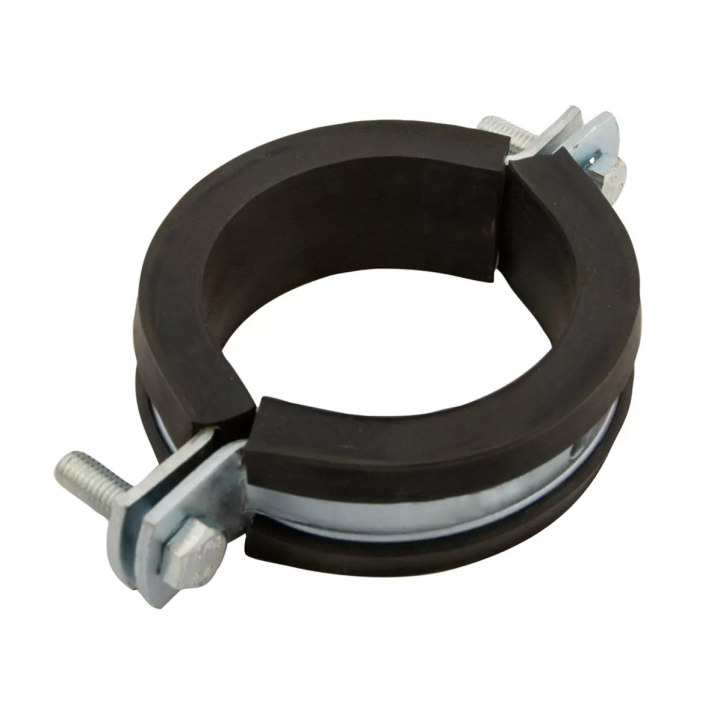

Walraven - BISMAT® SX fastening clip

Name: Walraven - BISMAT® SX fastening clip
Brand: Walraven
SKU: 21084
Price: 41.54 PLN
Availability: InStock

Walraven

zł41.54

Tax included

Clamp with two screws, patented closure. It replaces the fastening system for pipes equipped with flanges in cast iron sewer systems and some plastic systems. Ideal for use with the BIS Console for vertical pipes (Model No. 432 3 XXX). The cladding is aging resistant.

wariant

Dostępny

The minimum purchase order quantity for the product is 100.

clamp with two screws
with quick closing system
it replaces the fastening system for pipes fitted with flanges in cast-iron sewage systems and some plastic systems

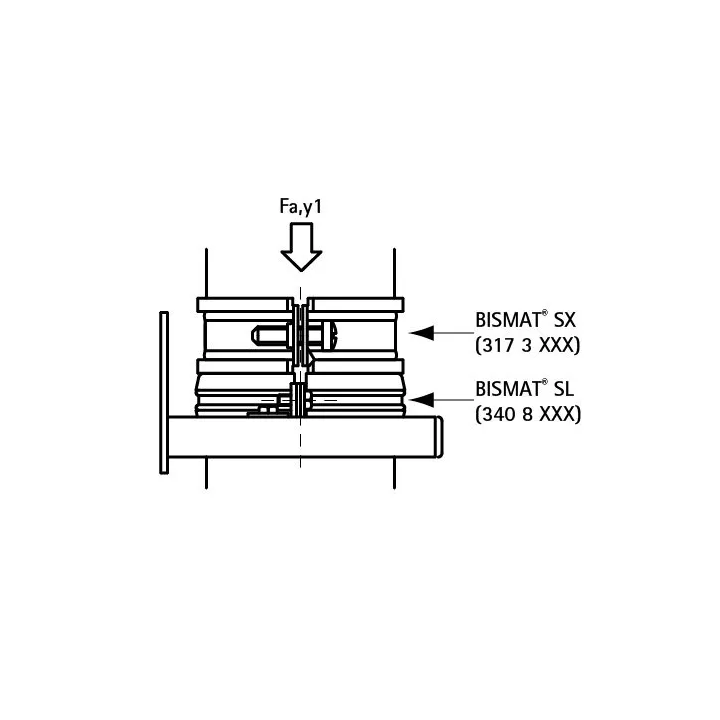

ideal for use with the BIS Console for vertical pipes (Model No. 432 3 XXX)
electrolytically galvanized
lined with black EPDM cladding
the cladding is aging resistant

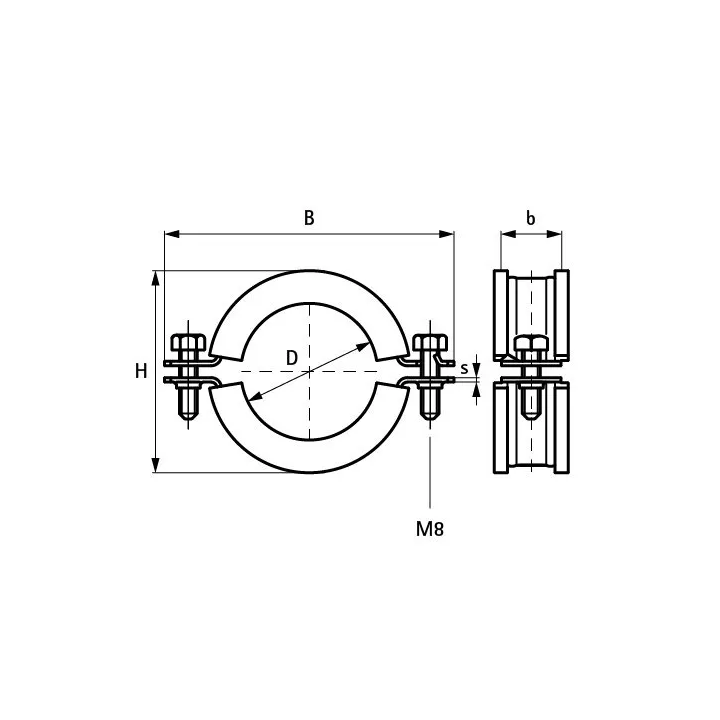

Dimensions and packaging

Cat No.	D	DN	Type	B	H	bxs	Fa, y1	Pud.
	(Mm)	(Mm)		(Mm)	(Mm)	(Mm)	(N)
317 3 075	75	70	KA	149	104	25 x 2.5	650	10
317 3 078	78	70	SML / GA	154	109	25 x 2.5	650	10
317 3 085	83	80	SML / GA	159	114	25 x 2.5	700	10
317 3 116	110	100	KA / SML / GA	184	139	25 x 2.5	1,000	10
317 3 132	125	125	KA	199	154	25 x 2.5	1,100	10
317 3 141	137	125	SML / GA	211	166	25 x 2.5	1,250	10
317 3 168	160	150	KA / SML / GA	234	189	25 x 2.5	1,500	10
317 3 219	210	200	SML / GA	284	239	25 x 2.5	1,500	5
