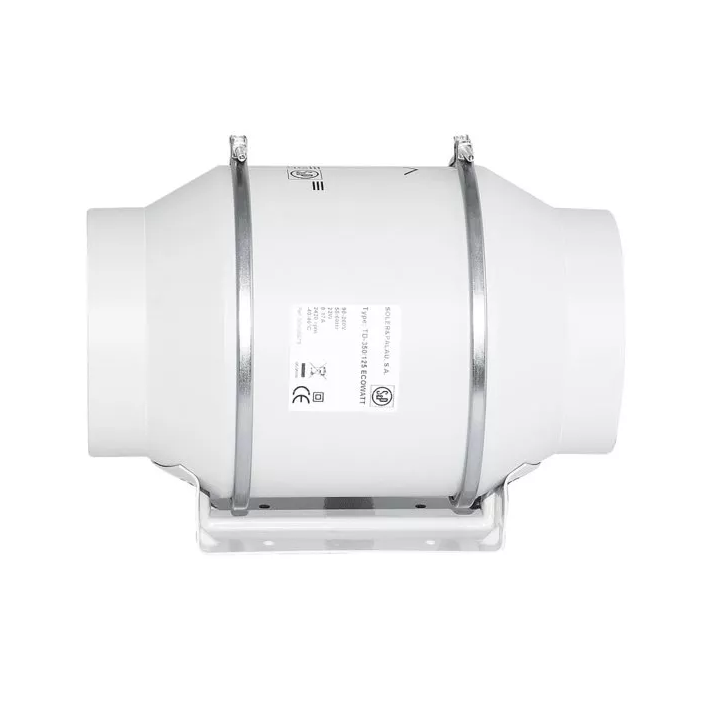

Venture Industries - TD Ecowatt channel fan

The fan is intended for all types of general ventilation installations. It is used as supply and exhaust ventilation of apartments, offices, shop in, cafes, restaurants, as well as in cooperation with domestic kitchen hoods equipped with grease filters.

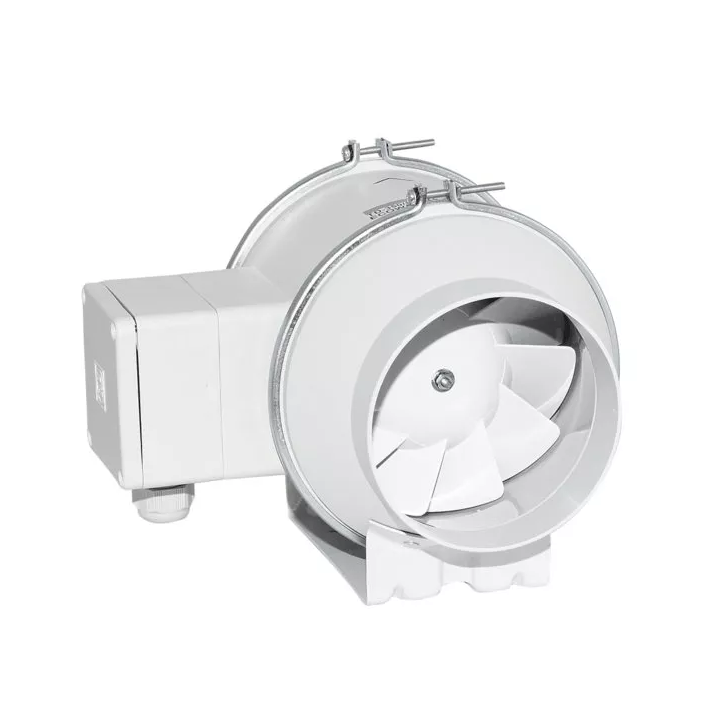

Construction

• possibility of mounting in vertical and horizontal position
• access to the engine after unfastening the mounting clamps
• plastic housing (models 160, 250, 350, 500, 800)
• casing made of steel sheet painted with epoxy-polyester paint (models 1300, 2000)
• plastic impeller (models 160, 250, 350, 500, 800)
• impeller made of aluminum sheet (models 1300, 2000)

Electric engine

• 90/260 V, 50/60 Hz or 230 V / 50/60 Hz single phase DC motors (1300, 2000 models)
• protection degree IP44, winding insulation class F
• the ability to control an 0-10 V analog signal
• for regulation by means of a potentiometer placed in a junction box (except TD-160/100 Ecowatt)
• for adjustment with an external potentiometer (REB Ecowatt recommended)
• ball bearings

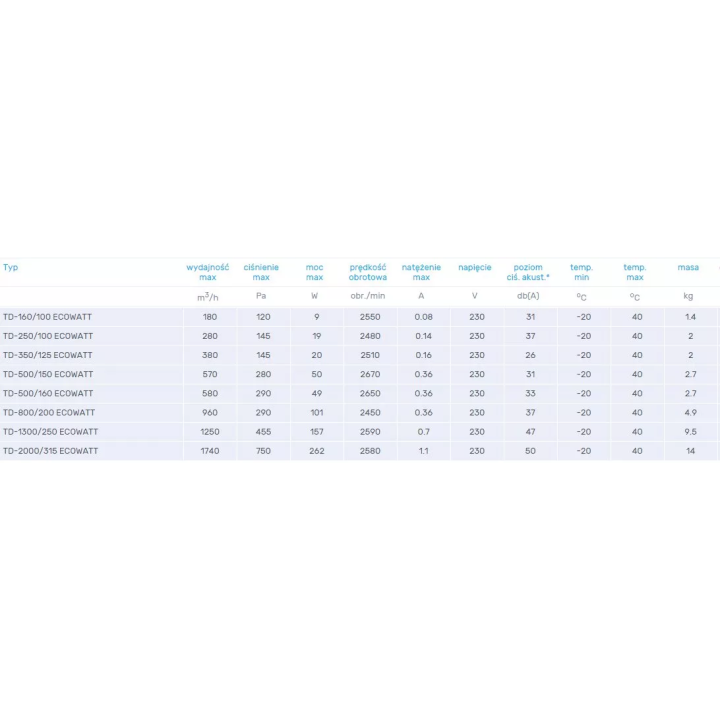

Technical data

* measured at a distance of 3 m from the fan
