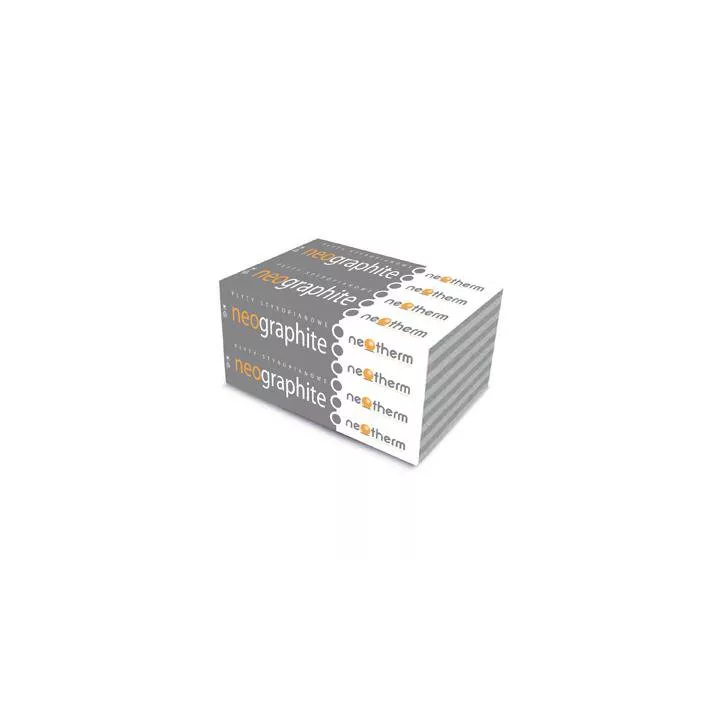

Neotherm - Styrofoam Neographite 031 Facade

Neographite Fasada 031 foam boards are used in many applications in the construction industry as thermal insulation. Thanks to the use of high-quality graphite polystyrene, they are characterized by a very low thermal conductivity coefficient - unattainable for standard polystyrene. They are naturally hydrophobic, self-extinguishing (Euroclass E), resistant to biological corrosion, and the insulation made of them permanently protects the building against heat loss.

Application

• according to the Technical and Quality Recommendation RTQ ITB -1211/2010, in particular wall insulation using the light-wet method and jointless thermal insulation systems (BSO), and in accordance with PN-EN 13499: 2005.
• for external vertical thermal insulation:
  • thermal insulation of walls with elements with facing and ventilated air gap
  • thermal insulation of diaphragm walls with a non-ventilated air gap
  • thermal insulation of walls in a skeleton structure with a facing
• for internal vertical thermal insulation:
  • thermal insulation in internal partition wall constructions
• for external horizontal thermal insulation:
  • thermal insulation ceiling from below with cladding
  • thermal insulation in light skeletal ceilings with cladding
  • thermal insulation in ventilated roofs
  • thermal insulation of the floor between joists

attention

Styrofoam boards are produced with two types of edges with dimensions: not milled 1000 x 500 mm board thickness from 10 to 500 mm in steps, every 10 mm, milled at the plant 980 x 480 mm board thickness from 50 to 150 or 200 mm (depending on the plant production) in 10 mm increments. Milled edges: additional payment PLN 5.00 / m3. Please provide information about the thickness and finish of the panel edges in the commentary to the order. Due to frequent price movements, for reasons beyond our control, please confirm the price each time you buy.
