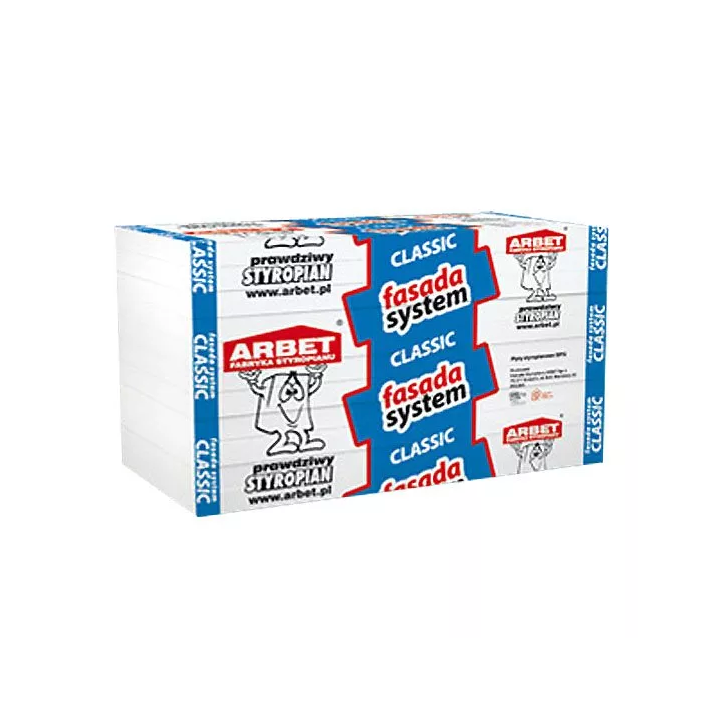

Arbet - Styrofoam board Facade Classic EPS 045

Price: zł196.80
Tax included
Classic facade expanded polystyrene boards can be used in applications requiring low mechanical loads, in particular for thermal insulation in the following places: - walls made using the "light wet" (BSO, ETICS) method or "light dry", - frame wall surfaces, - gaps in closed or ventilated three-layer walls, - wreaths, jambs, lintels and other places exposed to thermal bridges, - balcony loggias, - sandwich walls; - continuous outer layers of skeletal walls, - wreaths in the formwork method lost for plaster, - floors from below with the "light wet method", - reinforced concrete floors, - steep roofs under and between rafters. In particular for thermal insulation in the following places: - diaphragm walls with ventilated and non-ventilated air gap, - expansion joints in constructions, - in internal partition walls, - walls in skeletal construction with cladding, - floors from below with cladding, - floors between joists - light skeletal ceilings with cladding, - insulation between rafters, - ventilated roofs.
Product availability: Dostępny
Share

Classic facade polystyrene boards can be used in applications requiring low mechanical loads, in particular for thermal insulation in the following places:

  • walls made using the "light wet" (BSO, ETICS) method or "light dry" method,
  • surfaces of skeleton walls,
  • crevices of closed or ventilated three-layer walls,
  • wreaths, jambs, lintels and other places exposed to thermal bridges,
  • balcony loggias,
  • layered walls;
  • continuous outer layers of skeleton walls,
  • wreaths in the formwork method lost to plaster,
  • floors from below with the "light wet method",
  • reinforced concrete floors,
  • steep roofs under and between the rafters.
  • In particular, for thermal insulation in the following places:
    • diaphragm walls with ventilated and non-ventilated air gap,
    • expansion joints in constructions,
    • in internal partitions,
    • walls in frame construction with cladding,
    • floors from below with cladding,
    • floors between joists,
    • light skeleton ceilings with cladding,
    • insulation between rafters,
    • ventilated flat roofs.

attention

Milled edges "overlapped": surcharge 8.00 PLN / m3. Please provide information about the thickness and the method of milling the edges of the panels in the comments to the order. Plate thickness range: from 10 to 300 mm. Due to frequent price movements, for reasons beyond our control, please confirm the price each time you buy.

  • Brand
  • In stock
    1000 Items
  • MPN
    15520

  • width
    500 mm
  • fire classification - reaction to fire
    E
  • thermal conductivity λ
    0,045 W/mK
  • length
    1000 mm
  • thickness range
    10 - 300 mm
  • thickness (dimensional tolerance class)
    ± 1 mm
  • length (dimensional tolerance class)
    min(± 0,6%; ± 2) mm
  • width (dimensional tolerance class)
    min(± 0,6%; ± 2 mm) mm
  • squareness (dimensional tolerance class)
    ± 5/1000 mm/mm
  • flatness (dimensional tolerance class)
    ± 15 mm
  • edge finish
    proste
  • bending strength BS75
    >=50 kPa
  • dimensional stability under constant normal laboratory conditions DS(N)2
    ± 0,5 %
  • Dimensional stability under specified temperature and humidity DS(70,-)2
    <= 3 %

arbet_fasada_classic_golub_icmar

Deklaracja Zgodności Fasada Classic Golub

Download (87.54KB)
