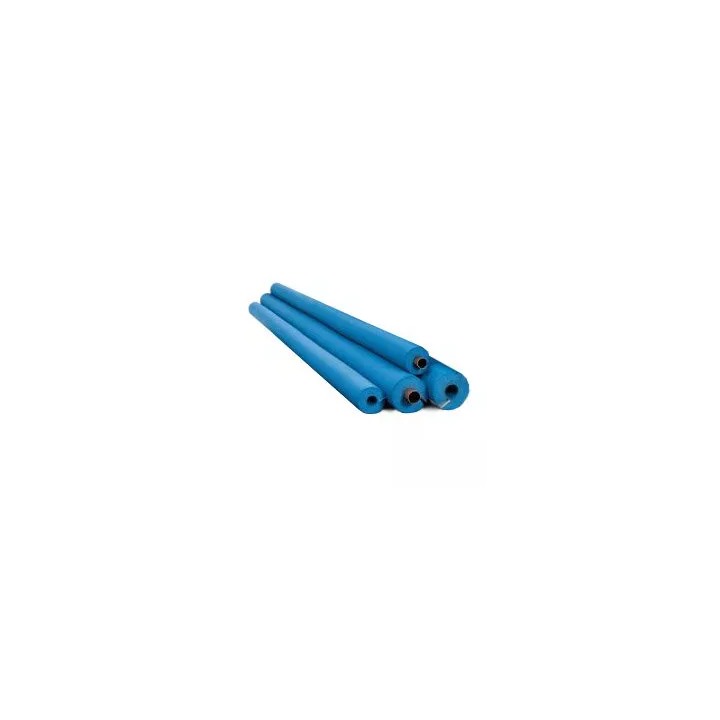

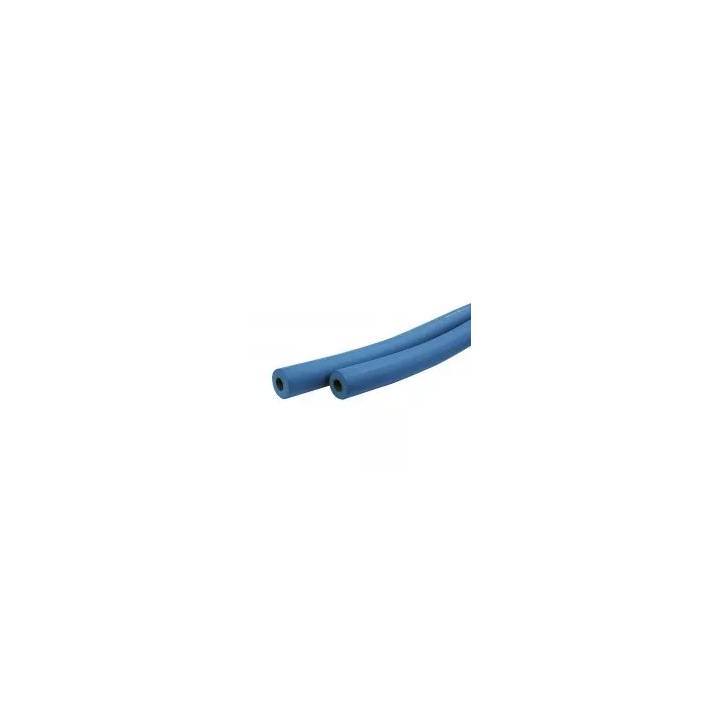

Highly flexible insulation material based on a patented synthetic rubber with flame retardants with improved properties. Closed cellular insulation with extremely low smoke emissions in the event of a fire. Flexible elastomeric foam based on patented Armaprene (R) synthetic rubber. EU Patent No. 2 261 305, US Patent No. 8, 163, 811. Self-adhesive layer: pressure-sensitive self-adhesive layer based on modified acrylic on a mesh matrix, covered with polyethylene film. Insulation / protection of pipes, ventilation duct, tank (also fittings and fittings) in industrial and commercial refrigeration, air conditioning and processing plants, used to prevent condensation and save energy. The entire range is subject to official control by an independent research institute and a notified body (GSH) as well as internal quality control in the factory in accordance with PN-EN 14304, using the procedure provided for in EN 13172. Low smoke emissions. Combined with Armaflex Ultima SF990, it meets LEED (Leadership in Energy and Environmental Design) and DGNB (Deutsche Gesellschaft fr Nachhaltiges Bauen eV) requirements for sustainable construction.
packaging
| nominal diameter DN | diameter
inside | insulation thickness [mm] |
| copper | steel | 9 | 13 | 19 | 25 |
| [Mm] | [Mm] | [Mm] | quantity mb. in the package |
| 4 | | 6
| - | 164
| -
| -
|
| 8 | 6 | 10 | - | 140
| 92 | - |
| 10 | | 12 | 192 | 130 | 84 | - |
| 8 | 15 | 180
| 112 | 64 | - |
| 15 | 10 | 18 | 150
| 98 | 58 | 46 |
| twenty | 15 | 22 | 124 | 88 | 56 | 36 |
| 25 | twenty | 28 | 96 | 64 | 40 | 36 |
| 32 | 25 | 35 | 70 | 56 | 40 | 28 |
| 40 | 32 | 42 | 56 | 48 | 24 | 24 |
| 40 | 48 | 52 | 40 | 24 | twenty |
| 50 | | 54 | 42 | 36 | 24 | 18 |
| 50 | 60 | 40 | 28 | 16 | 18 |
| | 64 | 28 | 26 | 16 | 16 |
| 65 | 65 | 76 | 32 | 24 | 16 | 12 |
| 80 | 80 | 89 | 24 | 18 | 16 | 12 |
