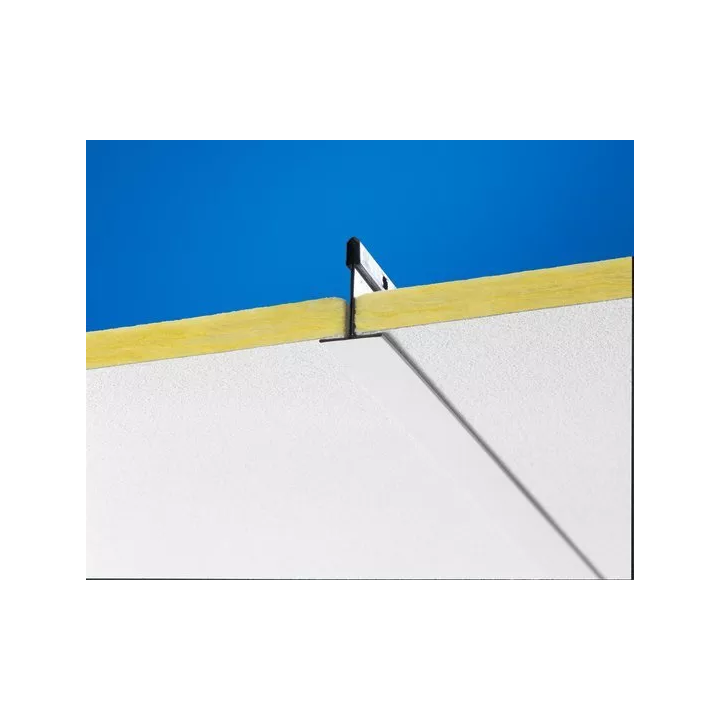

Ecophon - Gedina A, ceiling tiles, 20 mm thick

Price per m2 on request.

Ceiling tiles.

Application:
Unassembled, easy to disassemble a standard suspended ceiling that meets high functional requirements. Ecophon Gedina A boards are mounted on a visible supporting structure. Each plate can be removed. The system consists of Ecophon Gedina A boards and Ecophon Connect supporting structure with a total approximate weight of 2.5 kg / m2. The boards are made of high density glass wool. The visible surface is coated with Akutex T, the back surface is covered with glass veil. Gedina A boards are also available with primed edges. The supporting structure is made of galvanized painted steel.

Technical data:
- dimensions: 600x600 mm, 1200x600 mm, 1200x1200 mm, thickness 15 mm,
- sound absorption class: A (for a total construction height of 90 mm and 200 mm), B (for a total construction height of 80 mm), C (for a total construction height of 50 mm),
- insulation: Dn, c, w = 18 dB,
- 500 white plates (the nearest color according to NCS: S 0500-N) have 84% light reflection (of which over 99% is diffused light),
- they withstand constant relative humidity of up to 95% at 30 ° C without sagging, warping or delaminating,
- recyclable, environmentally friendly,
- they are non-flammable according to EN ISO 1182 testing and classification,
- maximum payload: 50 N,
- available colors: on request.
