Isolgomma - Roll TB acoustic insulation mat

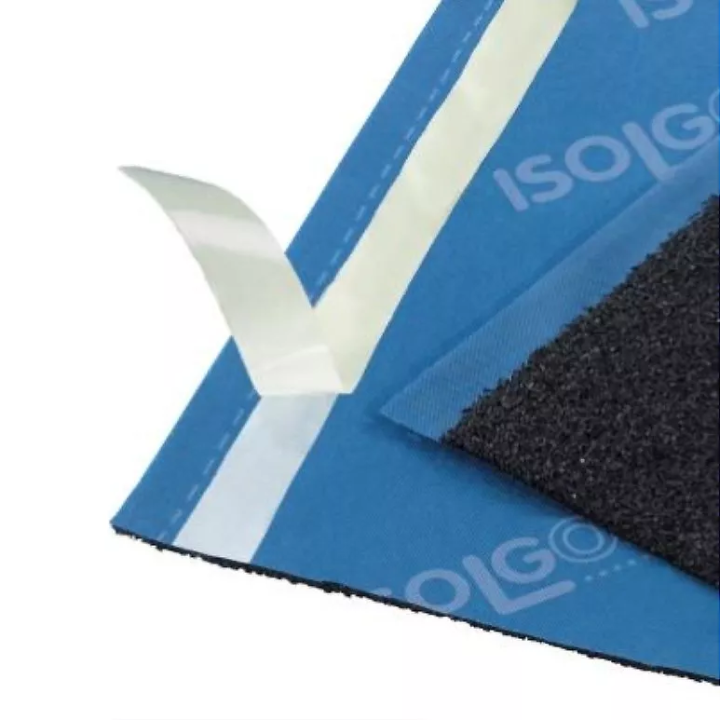

The Roll line is a line of acoustic mats in rolls for isolating a floating floor. They are used under floating floor screeds, in insulation of thick screeds, in floors with underfloor heating. The mats were made of SBR granules and rubber fibers sprayed on an unstretchable and protective blue surface layer and bound with a latex binder in the hot process. The top layer is resistant to stretching and mechanical damage. The self-adhesive edge of the mat allows for quick and easy assembly.

Technical data

Roll 5/7/10 TB

• nominal thickness 5/7/10 mm
• length 5 m
• 1.04 cm wide (including 4 cm for self-adhesive overlap)
• area weight 1.8 / 2.4 / 2.8 kg / m ²
• dynamic stiffness 29/20/18 MN / m ³
• coefficient of water vapor diffusion resistance μ 10
• transmission of water vapor Sd 0.5
• thermal conductivity coefficient λ 0.099
• level of compressibility CP2
• fire resistance F
• permanent load capacity up to 2000 kg / m ²
• temporary load up to 10,000 kg / m ²

attention

The commercial size is the content of one pallet. However, a minimum purchase is possible - one roll, price set individually.
