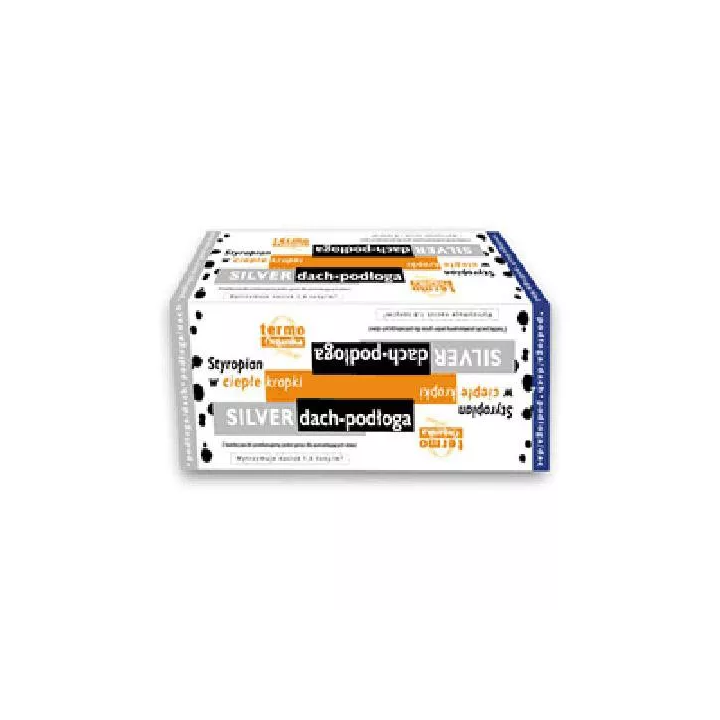

Termo Organika - Silver Roof Styrofoam board. Floor

Termo Organika - Silver Roof Styrofoam board. Floor

Termo Organika
zł220.17
Tax included
Polystyrene with dots, with a built-in pigment protective filter, with increased insulation parameters, designed for insulation of roofs, ceilings and floors. Silver Styrofoam roof / floor transfers average mechanical loads, not exceeding 1.8 t / m².
Dostępny
Share

Polystyrene with dots, with built-in pigment protective filter, with increased insulation parameters, designed for insulation of roofs, floors and floors. R uniformly distributed design load, at which the relative creep deformation of SILVER roof-floor panels does not exceed: 2% and is q0 , 2 = 16 kN / m2 (1600 kG / m2), 3% and is q0.2 = 24 kN / m2 (2400 kG / m2).

Application

  • ground floors in residential, public and industrial construction at normal loads
  • floors in the floor heating system,
  • floors on all types of floors with a rigid structure
  • flat roofs
  • external ceilings
  • flat roofs with slender construction (trapezoidal sheet)
  • terraces, balconies

attention

Milled edges: additional payment 6.00 PLN / m. Please provide information about the thickness and finish of the panel edges in the commentary to the order. Plate thickness range: from 10 to 200 mm.

Product information and a photo of the product were taken from the website www.Termoorganika.PL. Promotion valid while stocks last.

Due to frequent price movements, for reasons beyond our control, please confirm the price when purchasing.

  • Brand
  • In stock
    1000 Items
  • MPN
    11495

  • width
    500 mm
  • fire classification - reaction to fire
    E
  • thermal conductivity λ
    0,037 W/mK
  • length
    1000 mm
  • compressive stress at 10% strain relative
    ≥ 90 kPa
  • thickness range
    10 - 200 mm
  • thickness (dimensional tolerance class)
    ± 3 mm
  • length (dimensional tolerance class)
    ± 3 mm
  • width (dimensional tolerance class)
    ± 2 mm
  • squareness (dimensional tolerance class)
    ± 5/1000 mm/mm
  • flatness (dimensional tolerance class)
    ± 10 mm
  • flexural strength
    ≥ 135 kPa
  • dimensional stability under constant normal laboratory conditions DS(N)5
    ± 0,5 %
  • Dimensional stability under specified temperature and humidity DS(70,-)2
    <= 2 %
  • deformation under specified compressive load and temperature
    <= 5 %
  • tensile strength perpendicular to faces TR100
    >= 100 kPa

termo_org_karta_tech_silver_dach

Termo Organika Karta Techniczna Silver Dach Podłoga

Download (334.16KB)
