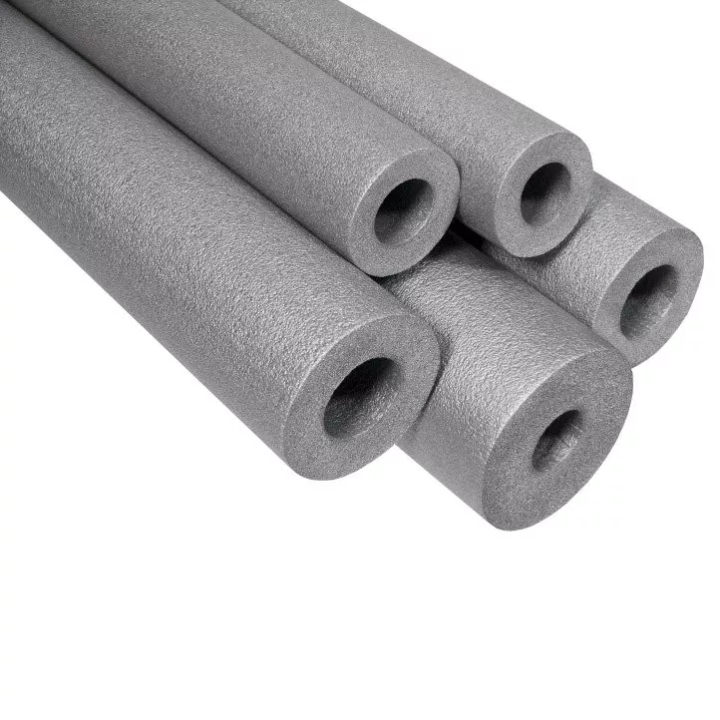

Thermaflex - ThermaEco FRZ HF lagging

Thermaflex - ThermaEco FRZ HF lagging

Thermaflex
zł3.62
Tax included
ThermaEco FRZ HF insulation is intended for heat and cold insulation of pipelines and installation devices.
diameter
grubość
Dostępny
The minimum purchase order quantity for the product is 180.
Share

ThermaEco FRZ HF insulation is intended for heat and cold insulation of pipelines and installation devices. When purchasing single quantities, please ask for availability.

Thickness C = 6 mm Thickness E = 9 mm Thickness J = 13mm
index code mb/
cart.		 index code mb/
cart.		 index code mb/
cart.
2206012 C-12 560 2209012 E-12 360 2213012 J-12 240
2206015 C-15 440 2209015 E-15 348 2213015 J-15 240
2206018 C-18 360 2209018 E-18 288 2213018 J-18 200
2206022 C-22 300 2209022 E-22 248 2213022 J-22 172
2206028 C-28 220 2209028 E-28 188 2213028 J-28 134
2206035 C-35 160 2209035 E-35 140 2213035 J-35 108
      2209042 E-42 110 2213042 J-42 90
      2209048 E-48 84 2213048 J-48 70
      2209054 E-54 76 2213054 J-54 64
      2209057 E-57 76 2213057 J-57 58
      2209060 E-60 70 2213060 J-60 58
      2209063 E-63 68 2213063 J-63 52
            2213070 J-70 44
      2209076 E-76 46 2213076 J-76 40
            2213089 J-89 32
            2213102 J-102 26
            2213108 J-108 24
            2213114 J-114 22
Thickness
N=20 mm 		Thickness
P=25 mm 		Thickness
S= 30mm
index code mb/
cart.
 index code mb/
cart.		 index code mb/
cart.
2220012 N-12 140 2227012 P-12 94
2220015 N-15 130 2227015 P-15 90 2230015 S-15 70
2220018 N-18 118 2226018 P-18 90 2230018 S-18 70
2220022 N-22 100 2226022 P-22 72 2230022 S-22 60
2220028 N-28 90 2225028 P-28 66 2230028 S-28 58
2220035 N-35 66 2225035 P-35 54 2230035 S-35 46
2220042 N-42 62 2225042 P-42 46 2230042 S-42 40
2220048 N-48 48 2225048 P-48 42 2230048 S-48 34
2220054 N-54 46 2225054 P-54 38 2230054 S-54 28
2220057 N-57 40 2225057 P-57 36 2230057 S-57 28
2220060 N-60 40 2225060 P-60 34 2230060 S-60 26
2220063 N-63 40 2225063 P-63 32
2220070 N-70 34 2225070 P-70 28
2220076 N-76 28 2225076 P-76 26 2230076 S-76 20
2220089 N-89 24 2225089 P-89 20 2230089 S-89 18
2220102 N-102 20 2225102 P-102 18
2220108 N-108 18 2225108 P-108 16
2220114 N-114 18 2225114 P-114 14 2230114 S-114 10

  • Brand
  • Reference
    3373-25248
  • In stock
    1000 Items
  • MPN
    3373

  • fire classification - reaction to fire
    EL
  • application temperature range
    -80 - +95 °C
  • thermal conductivity λ
    przy 20°C - 0,038 W/mK
    przy 40°C - 0,040 W/mK
  • density
    25 - 36 kg/m³
  • color
    grey
  • length
    2 m
  • internal diameter range lagging
    12 - 114 mm
  • range of thickness of insulation lagging
    6 - 30 mm
  • smell
    neutralny
  • flexibility of
    dobra
  • toxicity in fire
    praktycznie nie ma
  • water absorption
    0,05 kg/m2
