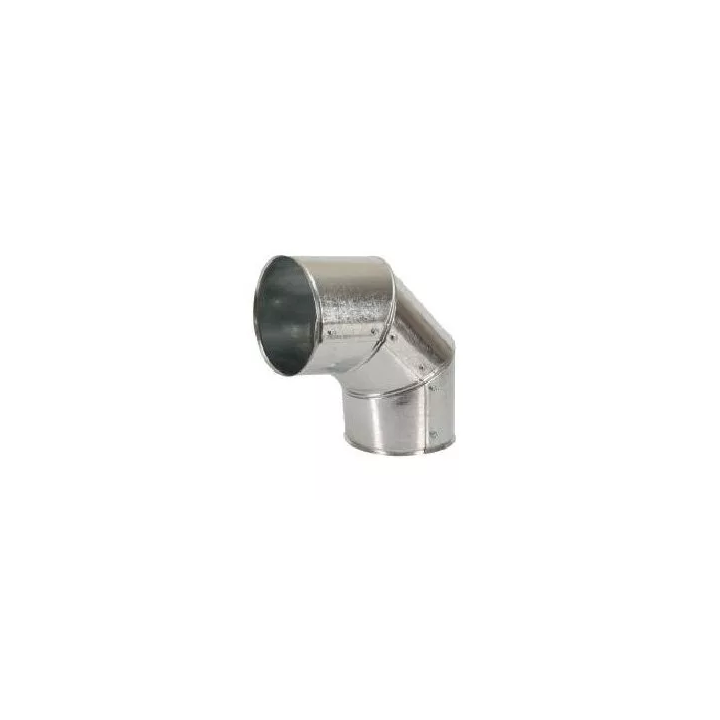

Xplo - protective coat made of stainless steel - knee

Protective coats made of stainless steel are used to protect the proper insulation made of mineral wool, polyurethane, synthetic rubber, polyethylene and other insulating materials used in thermal insulation against mechanical damage and destructive effects of moisture and UV radiation in an environment with increased chemical aggressiveness. Protective coats in this case, also tin, have the aesthetic qualities of the installation. For indoor and outdoor use. Stainless steel sheet elbows are intended for insulation of bends and elbows in pipelines in heating and technological installations, as well as heat and cold protection installations.

Technical data

Standard knee version:

• 3 and 4 segment bends,
• knee made of stainless steel sheet, thickness 0.5 mm, with an overlap,
• knees made according to the radius corresponding to the bending radius arc in, Hamburger knees,
• structure - smooth, smooth
• stainless steel sheet resistant to sea water and environment with increased chemical aggressiveness,
• two 3.2 mm holes for sheet metal screws in each segment.

attention

The product is available only as a service.
The product is made to order, delivery date confirmed individually.
In case of:

• large orders price determined individually,
• possible price reduction when using thinner sheet metal,
• knee made of larger quantity segment in the number indicated by the ordering party - individual calculation,
• knee made of another thickness metal sheet indicated by the ordering party - individual calculation,
• knee made according to radius R indicated by the customer - individual calculation.
