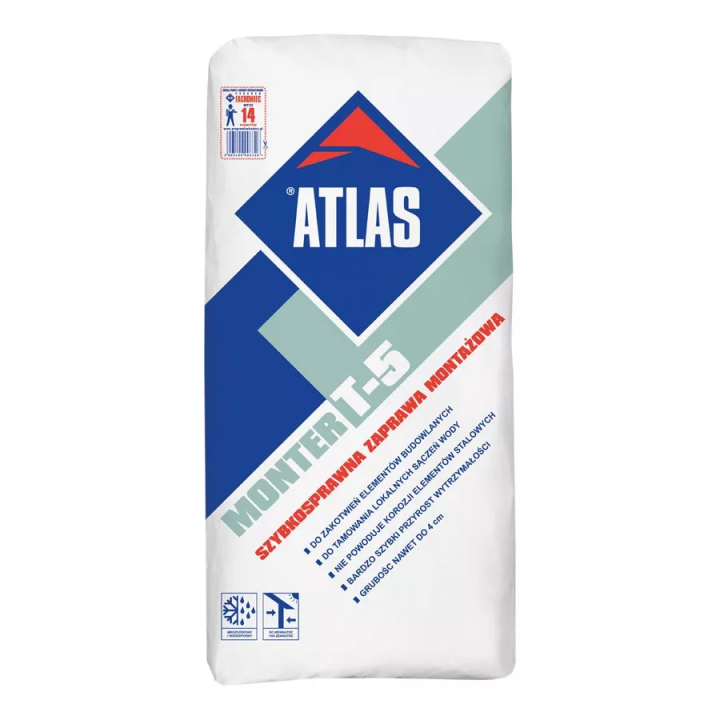

Atlas - assembly mortar Monter T-5

Recommended element for anchoring on horizontal and vertical surfaces - foundation bolts, fence posts, balcony and stair railings, anchors, hook, dowel, dowels, slings, hinges in windows, gates and doors, support in water, gas and co, element in electrical installations - electrical boxes and boxes, etc. Allows embedding and joining element in concrete. Effectively recreates the original shape of the element in concrete, e.g. edges.

Technical data

• ready time for work approx. 5 minutes,
• open work time: approx. 5 minutes,
• bulk density (dry mix): approx. 1.4 kg / dm3,
• bulk density (after mixing): approx. 1.8 kg / dm3,
• dry density (after setting): approx. 1.8 kg / dm3,
• mixing ratio water / dry mix:

  • 0.25 0.27 l / 1 kg
  • 1.25 1.35 l / 5 kg
  • 6.25 6.75 l / 25 kg
• min. / max thickness: 1 mm / 25 mm, for larger gap widths (up to 40 mm) use quartz sand (grain size up to 2 mm) in a 1: 1 ratio,
• adhesion: min. 2.0 MPa,
• compressive strength;

  • after 6 hours > 10.0 MPa
  • after 24 hours > 25.0 MPa
  • after 28 days> 60.0 MPa,
• flexural strength:

  • after 6 hours > 2.0 MPa
  • after 24 hours > 4.0 MPa after 28 days> 9.0 MPa,
