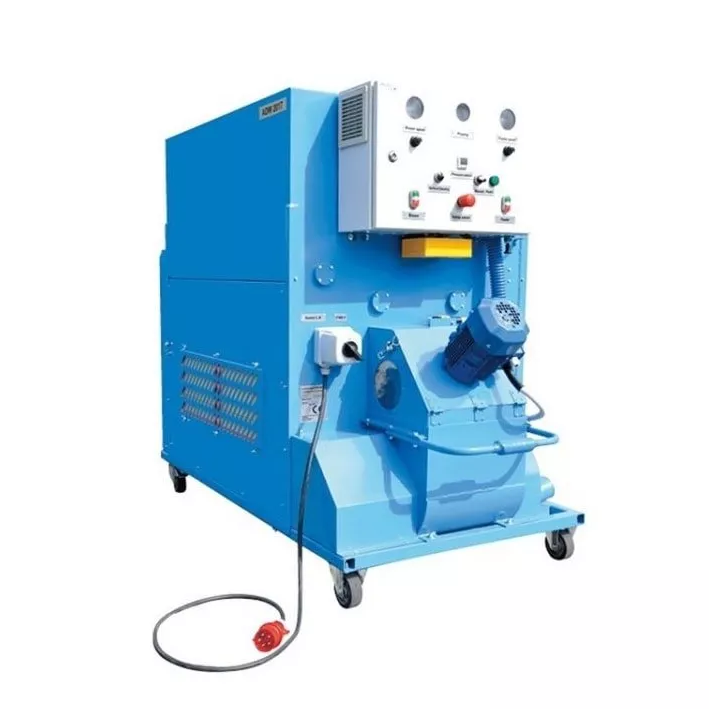

Terex - ADW 2017 HDS blowing machine

Universal machine with high efficiency, high pressure (the material is dosed into compressed air), used for blowing, designed for pneumatic transport of cellulose, glass, basalt and wood wool and polystyrene granules.

Features

• high performance
• versatility
• simple and easy operation
• mobility
• precise and smooth control of the blower and screw feeder (vector inverters)
• independent switching of the dispenser and shredder
• very easy to clean and use on site
• volume 78 dB
• quick and independent change of dispenser seals (Air-Lock) without having to disassemble the machine
• the location of the machine controls is ergonomic and convenient to operate
• yield: cellulosic material having a bulk density of 30-40 kg / m ³ to 1800 kg / h; granulated glass wool having a bulk density of 15-25 kg / m ³ to 1000 kg / h; basalt wool having a bulk density of 30-45 kg / m ³ to 1800 kg / h
• for dry blowing: glass wool, rock wool, cellulose wool, wood wool, EPS

Technical data

• weight 410 kg
• height 145 cm
• width 92 cm
• length 172 cm
• approximate capacity 1800 kg / h
• 3 x 400 V, 50 Hz power supply required
• power input 13 kW
• recommended diameter of the transport pipe 80 mm
• recommended length of the transport pipe 85-90 m
• blower pressure 45 kPa
• nominal power of the blower 6 kW
