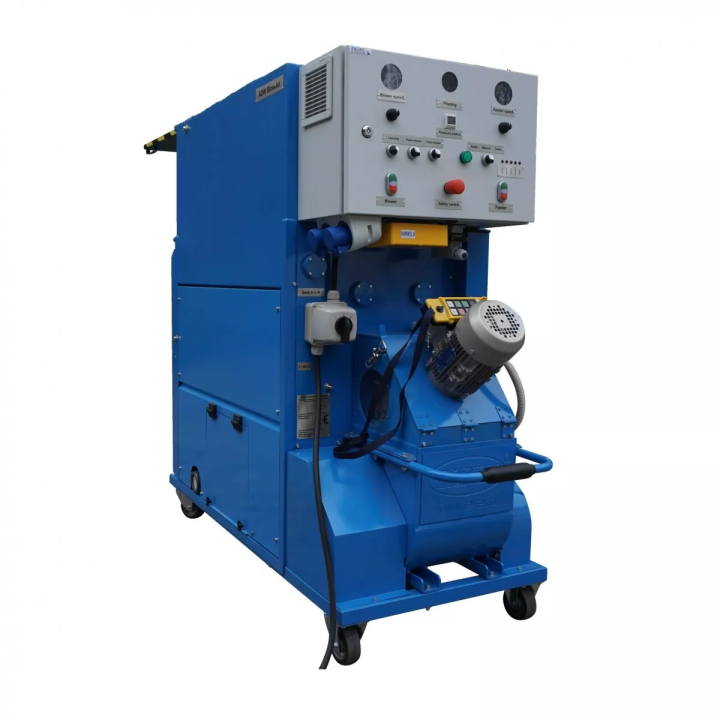

Terex - ADW Blowjet wet spraying and blowing machine

A machine characterized by high functionality. It is used for wet thermal and acoustic spraying of cellulose and glass wool based material and for dry blowing of cellulose, glass and stone wool material. Additional AB 2015 blowers can be directly connected in series or in parallel. When connected in series, the blowing pressure is increased, thanks to which we can blow wool through nozzles with a diameter of 12 mm. With a parallel connection, it is possible to blow wood wool into closed spaces and their appropriate compaction, or we can increase the efficiency of blowing heavy stone wool.

Features

• mobility
• simple and easy operation
• precise and smooth control of the blower and screw feeder (vector inverters)
• high efficiency, up to 11 kg / min when spraying glass wool (the only one on the market)
• optionally, smooth control of the rotational speed of the shredder
• independent switching of the dispenser and shredder
• has a protection against pipe clogging
• quiet operation below 76 dB
• easy to clean and use on the construction site
• equipped with 2 additional 230 V outputs, one for connecting additional AB 2015 blowers, the other for connecting a pump for feeding the adhesive solution during wet spraying
• power supply from a 3 * 400 V three-phase network
• for dry blowing: glass wool, rock wool, cellulose wool, wood wool, EPS and for spraying cellulose and glass material

Technical data

• weight 330 kg
• height 150 cm
• width 70 cm
• length 153 cm
• approximate capacity 900 kg / h
• 3x400 V power supply required
• power input 10 kW
• high pressure system with sealed dispenser
• recommended diameter of the transport pipe 80 mm
• recommended length of the transport pipe 50-100 m
• feeding height up to 100 m
