Controller for fireplace systems with a water base or water jacket. Has a graphic display. Combines the functions of the optimizer of the combustion process and the controller for the fireplace with a water jacket or water base. The main task of the controller is to optimize the operation of the furnace in terms of power obtained and stabilize its operation at the temperature level required by the user. This process is carried out by means of a throttle that smoothly regulates the air supply to the combustion chamber on the basis of an exhaust gas sensor.
Equipment
- one sensor for measuring the exhaust gas temperature
- three water temperature sensors

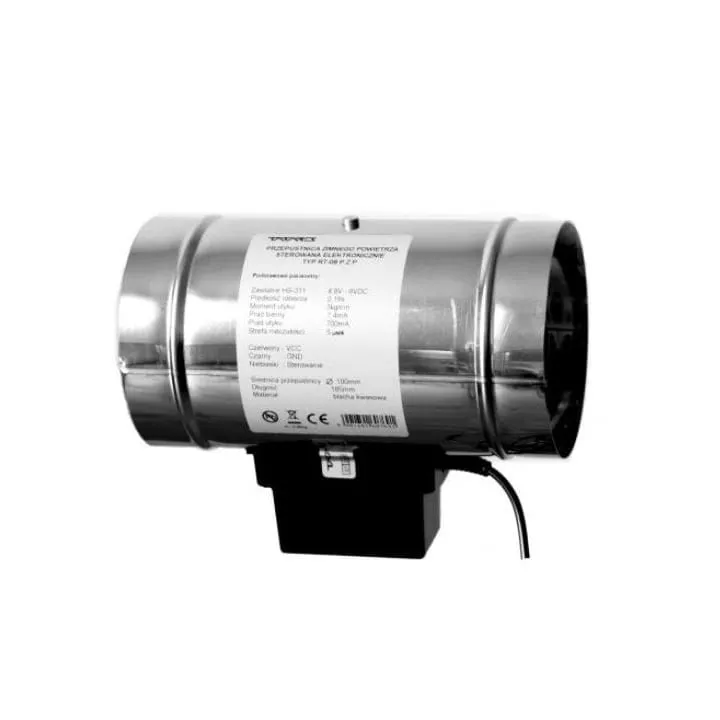

- air supply damper (tight)
- mounting box for concealed installation
- Titanium Design version

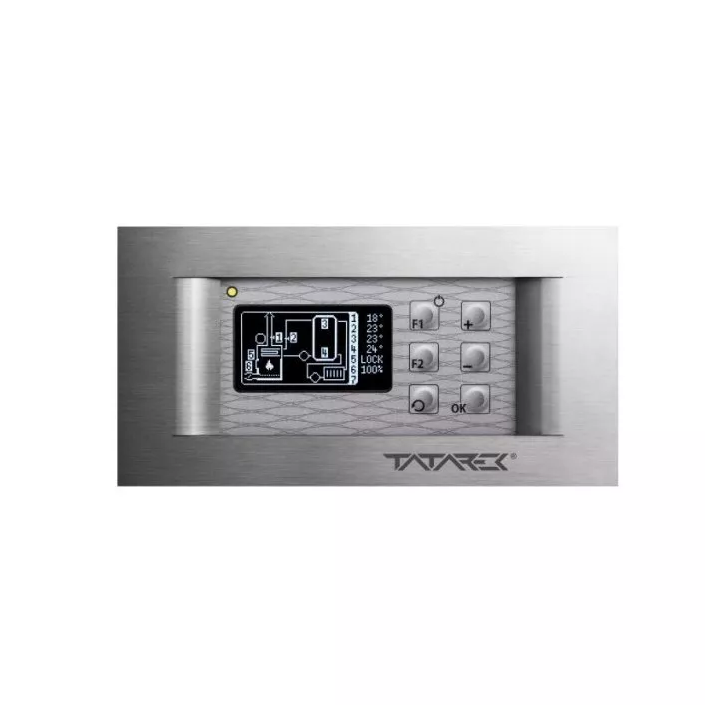

- graphic display
Basic controller functions
- smooth control of the throttle regulating combustion air supply based on the exhaust gas temperature
- stabilization and extension of the combustion process in the fireplace
- informing about the need to add fuel
- preventing overheating of the furnace
- preventing the furnace from cooling down after work
- prevention of water overheating in the installation
- co-operation with the furnace door sensor
- memory in case of power outage
- damper opening / closing in case of power failure
- co-operation with chimney flap servo, ventilation or draft generator
- servicing the buffer loading pump or Laddomat
- operation of the circulation pump or second loading pump
Technical data
- 230 V / 50 Hz power supply
- no load power consumption 5 W
- maximum connected power 750 W
- auxiliary power supply 4.8 V / 60 mAh battery
- number of outputs controlling the throttle drive 1 * 5 V / 500 mA / DC
- number of control outputs 3 * 250 W / 230 V / 50 Hz
- accuracy of flue gas / water temperature measurement 5 C / 2 C
- temperature resolution 1 C
- quantity sensor in exhaust gas temperature 1 * Thermocouple type K (1200 C)
- quantity sensor in water temperature 3/4 * KTY (0 ... + 100 C)
