Tatarek - controller for heating systems RT-08G Solar Black Buffer

Control set with dark function display. It is used to operate the heating system supplied from a fireplace with a water jacket, with regulation of the air supply to the combustion chamber by means of a cold air damper. Provides automatic operation of the buffer loading pump. It also allows heat distribution via a circulation pump to the central heating system. The controller also allows operation of the solar collector pump supplying buffer. A voltage free contact allows you to switch on or off another device (e.g. gas oven).

Equipment

• three water temperature sensors

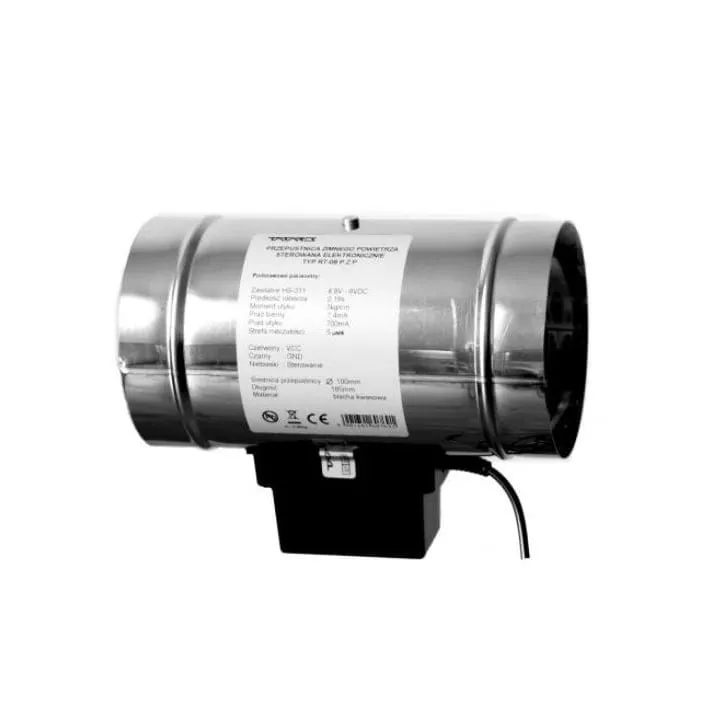

• air supply damper
• mounting box for concealed installation
• Black version

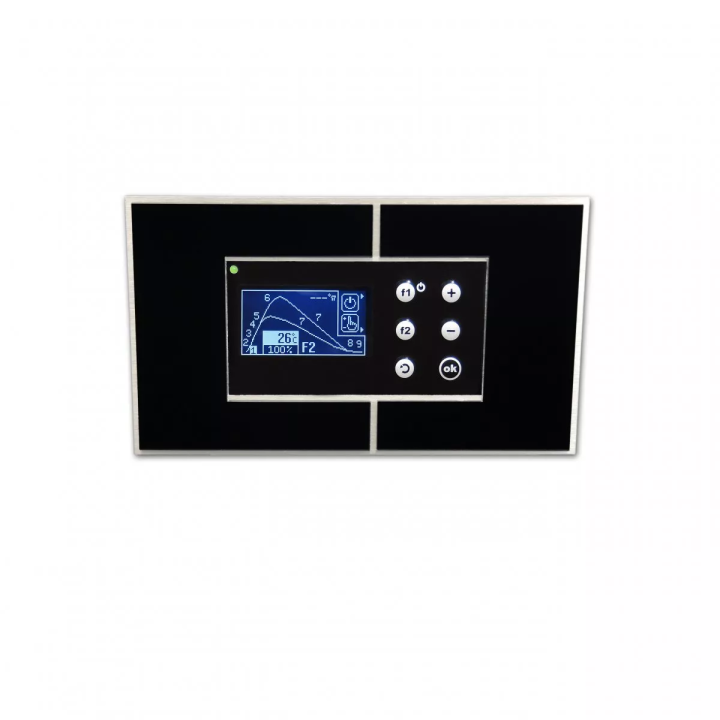

• dark function display

Basic controller functions

• smooth control of the throttle regulating combustion air supply
• optimization of the combustion process in the fireplace
• control of the charging pump operation Buffer
• circulation pump control
• controlling solar pump operation
• various modes of operation for the central heating pump
• the function of blocking another source of heat when the fireplace provides heat to the installation
• integrated zone thermostat function
• memory in case of power failure - restoration of previously made settings

Technical data

• 230 V / 50 Hz power supply
• no load power consumption 5 W
• maximum connected power 750 W
• number of outputs controlling 3 * 250 W / 230 V / 50 Hz pumps
• one voltage-free control output
• number of outputs controlling the throttle drive 1 * 5 V / 500 mA / DC
• quantity sensor in water temperature 3 * PT1000 (-50 ... + 200 C)
• accuracy of temperature measurement 2 C
• temperature measurement resolution 0.5 C
