Control set for operating the heating system supplied from a fireplace with a water jacket, with regulation of the air supply to the combustion chamber by means of a cold air damper. It has a dark function display. It provides automatic operation of two central heating circulation pumps and a pump for charging the hot utility water system. A voltage free contact allows you to switch on or off another device (e.g. gas oven).
Equipment
- three water temperature sensors

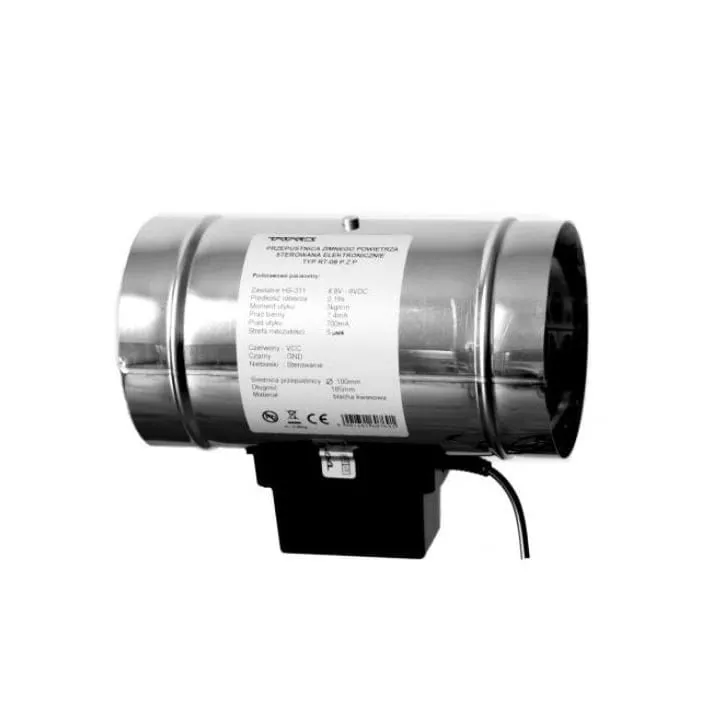

- air supply damper
- mounting box for concealed installation

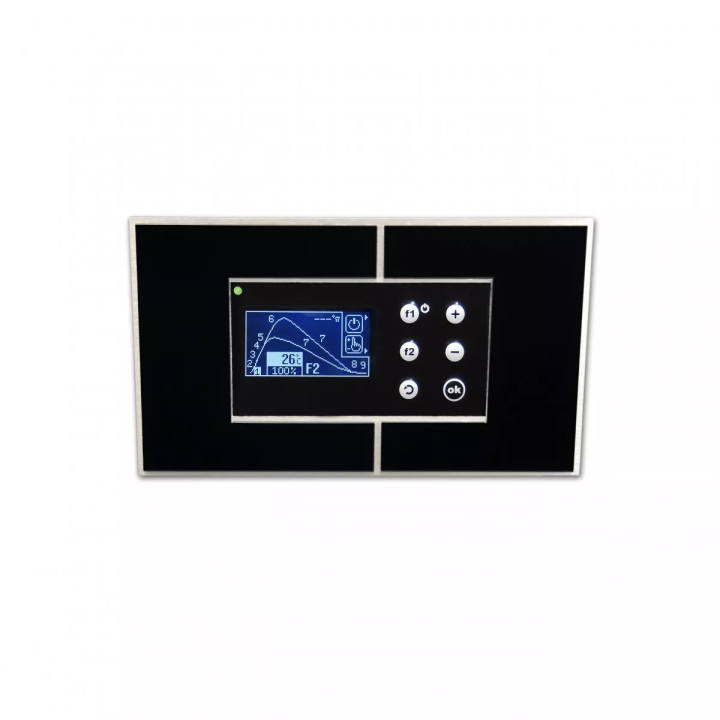

- dark function display
Basic controller functions
- optimization of the combustion process in the fireplace
- smooth control of the throttle regulating combustion air supply
- DHW pump control
- different operating modes for the DHW pump
- controlling the operation of two circulation pumps
- the function of blocking another source of heat when the fireplace provides heat to the installation
- integrated zone thermostat function
- memory in case of power failure - restoration of previously made settings
Technical data
- 230 V / 50 Hz power supply
- no load power consumption 5 W
- maximum connected power 750 W
- number of outputs controlling 3 * 250 W / 230 V / 50 Hz pumps
- one voltage-free control output
- number of outputs controlling the throttle drive 1 * 5 V / 500 mA / DC
- quantity sensor in water temperature 3 * KTY81 (0 ... + 100 C)
- accuracy of temperature measurement 2 C
- temperature measurement resolution 0.5 C
