The control set is designed to operate a heating system powered by a fireplace with a water jacket, with regulation of the air supply to the combustion chamber via a cold air damper. Has an LCD display. It provides automatic operation of two central heating circulation pumps and a pump for charging the hot utility water system. A voltage free contact allows you to switch on or off another device (e.g. gas oven).
Equipment
- three water temperature sensors

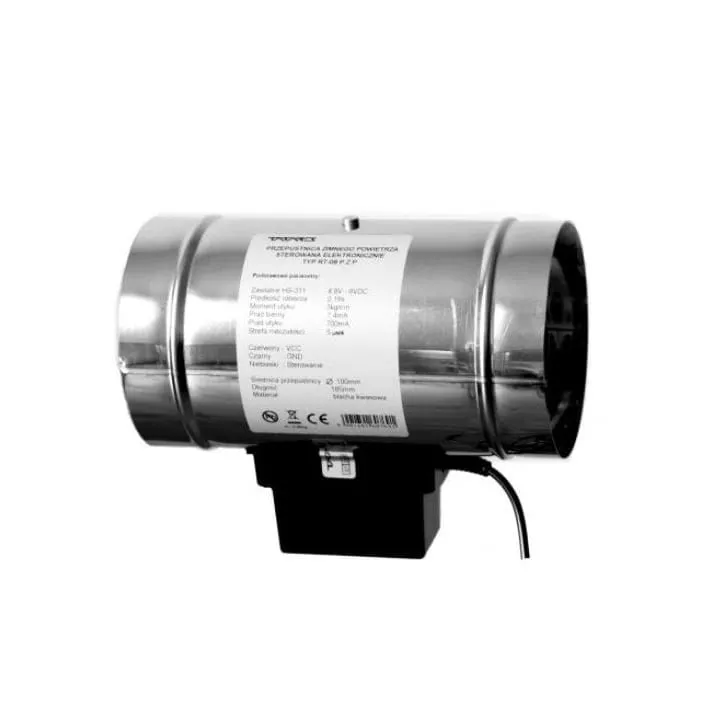

- air supply damper
- mounting box for concealed installation

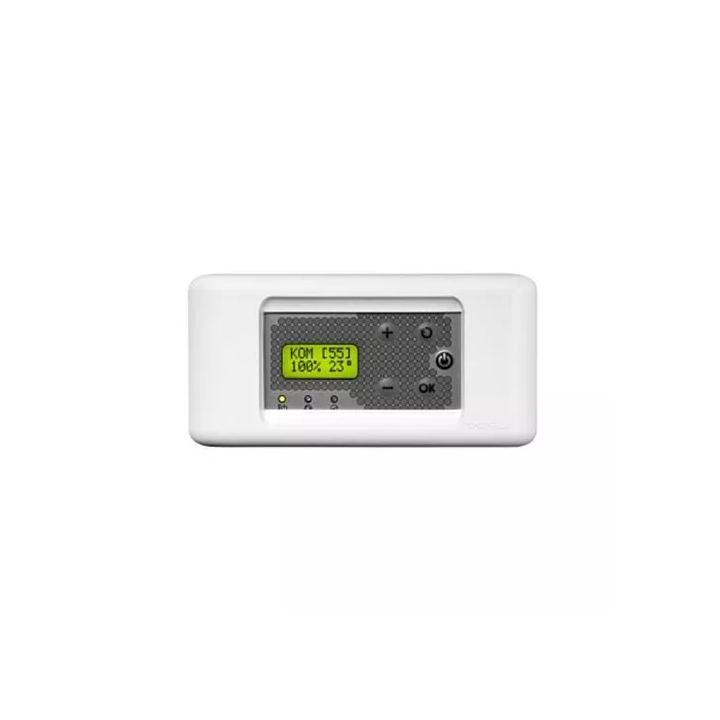

- LCD display
Basic controller functions
- DHW pump control
- different operating modes for the DHW pump
- integrated zone thermostat function
- smooth control of the throttle regulating combustion air supply
- optimization of the combustion process in the fireplace
- controlling the operation of two circulation pumps
- the function of blocking another source of heat when the fireplace provides heat to the installation
- memory in case of power failure - restoration of previously made settings
Technical data
- damper type unsealed
- 230 V 50 Hz power supply
- one voltage-free control output
- maximum connection power 3 x 250 W / 230 V / 50 Hz
- number of sensor in 3
- working temperature 0-40 C
- accuracy of temperature measurement 2 C
- temperature measurement resolution 0.5 C
- dimensions: 148 x 80 x 55
- power consumption 5 W
- maximum connected power 750 W
- KTY81 temperature sensor (0 ... + 100 C)
- LVD in accordance with PN-EN 60730-2-1: 2002
