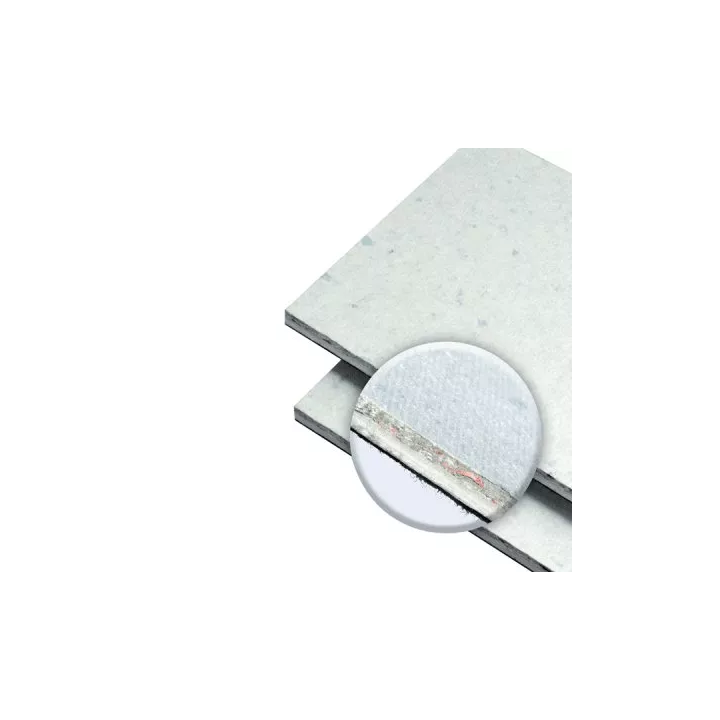

Sopro - TDP 565 soundproofing board

A pressed board of polyester fibers, based on synthetic resins, with a black layer of sandwich interlining.

Features

• sound attenuation up to 16 dB under tiles and ceramic tiles
• to reduce stress on critical substrates (e.g. old wooden floors)
• improves thermal insulation
• resistant to decay
• for service loads up to 3 kN / m ²
• very low VOC emissions

Application

• on the floors
• when laying stairs in multi-storey residential buildings and on insufficiently insulated substrates
• additional thermal insulation for electric heating mats
• a stiffening and stress-reducing layer in the renovation of old wooden substrates or ceramic cladding
• under ceramic and stone tiles
• under parquet, laminate, carpet, PVC
• stress compensation on fresh, shrink-prone concrete surfaces
• Stress compensation on screeds at risk of cracking or on mixed substrates
• improvement of thermal insulation with poorly insulated screeds or on composite screeds
• a layer of thermal insulation when renovating the above-mentioned rooms
• as a cut-off system for laying tiles and slabs in rooms in the EK-WS, EK-GS, EK-HS categories in accordance with the ZDB / euroFEN guidelines

Technical data

• only 8 mm thick
• length 1000 mm
• width 600 mm
• weight approx. 4.2 kg / m ²
• sound attenuation up to 16 dB glued under tiles and ceramic plates
• thermal conductivity 0.085 W / mK
• thermal resistance 0.10 m ² K / W
• reaction to fire class E
• storage in dry rooms, in a horizontal position, without time limits
• consumption approx. 4.0 kg / m ² per cm of layer thickness
