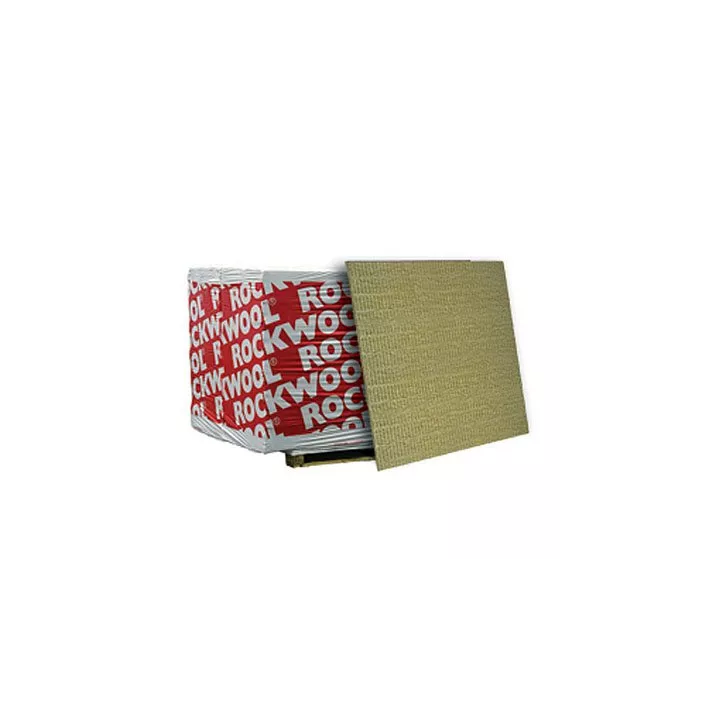

Rockwool - Conlit 150 A / F

Name: Rockwool - Conlit 150 A / F
Brand: Rockwool
SKU: 27468
Price: 11684.25 PLN
Availability: InStock

Rockwool

zł11,684.25

Tax included

The system for performing protection of steel constructions in fire resistance class up to R 240 and monolithic ceilings, walls, beams and reinforced concrete columns in resistance classes up to REI 240.

grubość

Dostępny

The system for performing protection of steel structures in fire resistance class up to R 240 and monolithic ceilings, walls, beams and column in reinforced concrete in resistance classes up to REI 240.

Steel structures: Elements of steel structures (beams and columns) located inside the building and having a U / A mass index not exceeding 231 m-1 can be fire protected using the CONLIT 150 system with: CONLIT 150 P boards or CONLIT 150 A / F boards with one-sided aluminum foil cladding. Traditionally, rock mineral wool panels are joined using CONLIT GLUE glue and additional reinforcement with steel mounting nails. The solution enables four-, three- and double-sided protection in steel (beams and column in) with open profiles, exposed to fire in standard.

Monolithic reinforced concrete ceilings, walls and poles Fire protection systems CONLIT 150 should be tight enclosures of the abovementioned elements. Rock mineral wool slabs should be attached to beams, column, walls and ceiling with a steel connector in Hilti IDMS or other steel connector for fixing insulation approved for use in construction.

dimensions

Length [mm]	Width [mm]	Thickness [mm]	Number of m2 on the pallet [m2]	Number of panels on a pallet [pcs]
2000	1200	twenty	134.4	56
2000	1200	25	108	45
2000	1200	thirty	88.8	37
2000	1200	35	76.8	32
2000	1200	40	67.2	28
2000	1200	50	52.8	22
